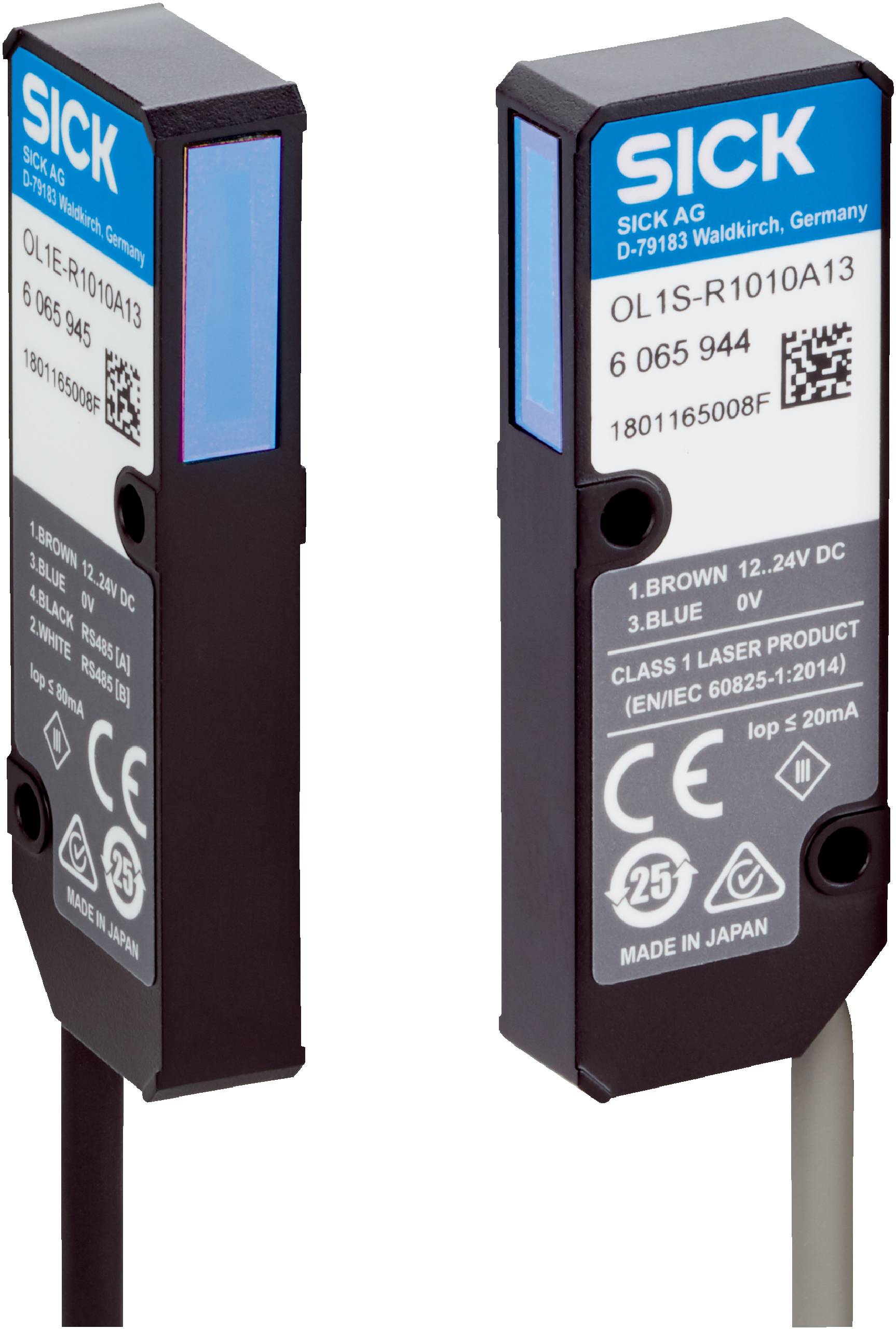

Sick OL1S/OL1E-R1010A13, Laser-Abstandssensor, P/n: 6065943
Hst.-Teile-Nr.:
Bestell-Nr.:
Produkt-Art
Messsensor
Max. Reichweite im Freifeld
300 mm
Typ
OL1S/OL1E-R1010A13
Inhalt
1 St.
Sendertyp
Halbleiter-Laser Rot
1 Stück
Verkauf und Versand:
versandkostenfrei ab € 199,00 Bestellwert bei diesem Anbieter
Anzahl
Gesamt
€ 1.181,27
steuerfreie IGL
Nur noch 1 Stück verfügbar
Technische Daten
- Measuring range: 10mm
- Installation distance: 0mm... 300mm, Sender/receiver
- Minimum detectable object: 0.2mm
- Repeatability: 10m
- Linearity: 40m
- Response time: 0.5ms
- Light source: Laser, red
- visible red light
- Type of light: Visible red light
- Laser class: 1(IEC608251:2014, EN608251:201
- Typ. light spot size (distance): 3mmx 14mm
- Additional function: Measurement modes: Edge detection or diameter/width measurement Adjustable average filter Sensitivity adjustment for measuring transparent objects
- Safetyrelated parameters:
- MTTF D : 101years
- DC avg : 0%
- Safetyrelated parameters:
- MTTF D : 101years
- DC avg : 0%
- Serial:
- Remark: For communication with AOD1 evaluation unit
- Digital output:
- Number: 3
- Type: PNP/NPN, selectable
- Analog output:
- Number: 1
- Type: Current output
- Current: 4mA... 20mA, 300
- Serial:
- Remark: For communication with AOD1 evaluation unit
- Digital output:
- Number: 3
- Type: PNP/NPN, selectable
- Analog output:
- Number: 1
- Type: Current output
- Current: 4mA... 20mA, 300
- Supply voltage U B : 12VDC... 24VDC, 10%, including residual ripple
- Power consumption: 0.96W, sender 0.24W, receiver
- Warmup time: 10min
- Indication: 1Status LED (sender) 2status LEDs (receiver)
- Enclosure rating: IP50
- Protection class: III

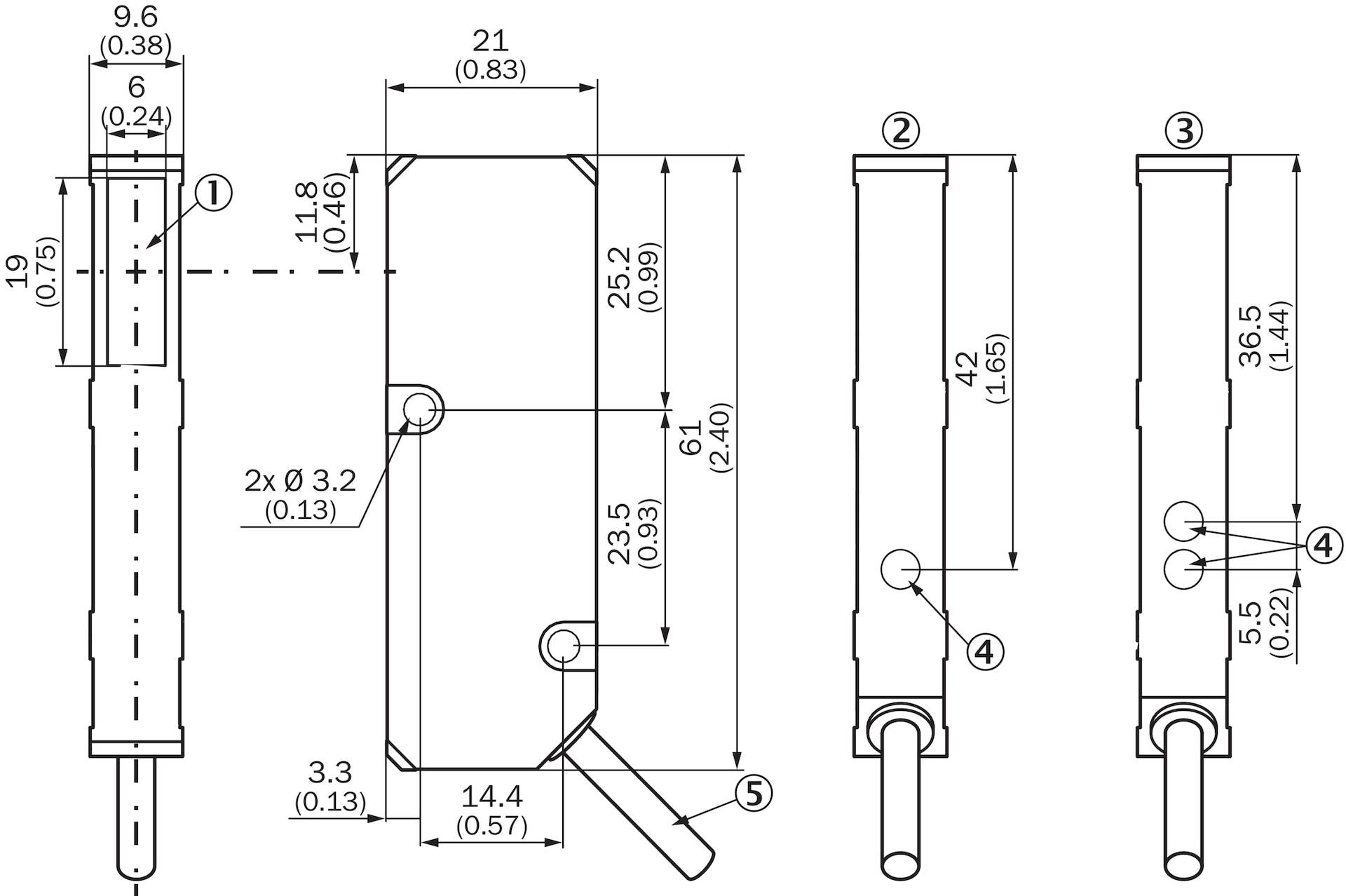

- Dimensions (Wx Hx D): 9.6mmx 61mmx 21mm
- Housing material: Metal (Aluminum die cast)
- Window material: Glass
- Weight: 30g (sender) 30g (receiver)

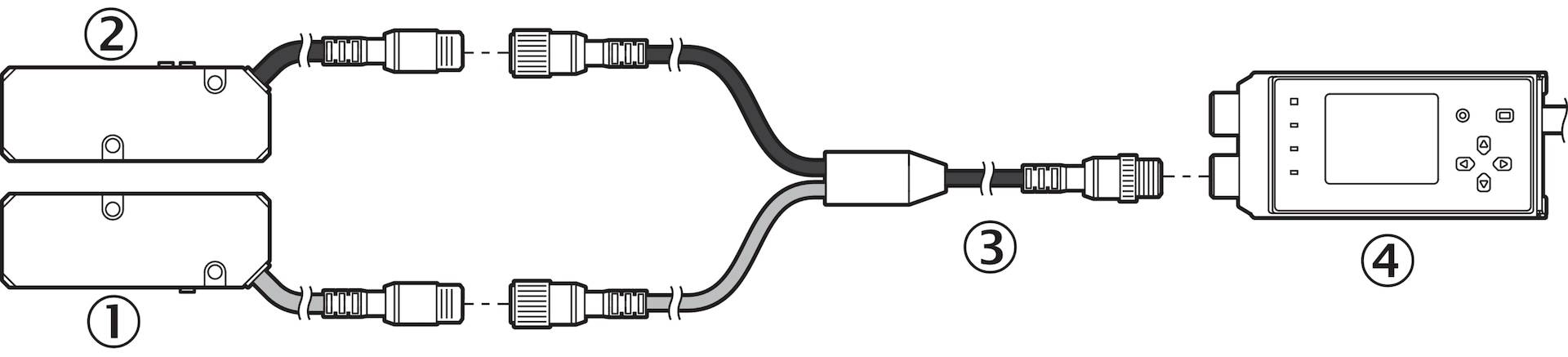

- Connection type: Cable with M8 male connector, 4pin, Y cable for connection to AOD1 evaluation unit
- Ambient temperature, operation: 10C... +50C
- Ambient temperature, storage: 20C... +60C
- Relative air humidity (noncondensing): 35%... 85%
- Temperature drift: 2m/K
- Typ. Ambient light immunity: Artificial light: 3,000lx Sunlight: 10,000lx
- Vibration resistance: EN6006826
- Shock resistance: EN60068227
- EU declaration of conformity
- UK declaration of conformity
- ACMA declaration of conformity
- MAR declaration of conformity
- ChinaRoHS
- ECLASS 5.0: 27270801
- ECLASS 5.1.4: 27270801
- ECLASS 6.0: 27270801
- ECLASS 6.2: 27270801
- ECLASS 7.0: 27270801
- ECLASS 8.0: 27270801
- ECLASS 8.1: 27270801
- ECLASS 9.0: 27270801
- ECLASS 10.0: 27270801
- ECLASS 11.0: 27270801
- ECLASS 12.0: 27270916
- ETIM 5.0: EC001825
- ETIM 6.0: EC001825
- ETIM 7.0: EC001825
- ETIM 8.0: EC001825
- UNSPSC 16.0901: 41111613
- Produkt-Art
Messsensor
- Typ
OL1S/OL1E-R1010A13
- Inhalt
1 St.
- Sendertyp
Halbleiter-Laser Rot
- Laser-Klasse
1
- Ausgänge
Analog Strom
- Reichweite min. (im Freifeld)
0 mm
300 mm
- Min. Temperatur
10 °C
- Max. Temperatur
+50 °C
- Länge
21 mm
- Breite
9.6 mm
- Höhe
61 mm
- Abm.
(L x B x H) 21 x 9.6 x 61 mm
- Gewinde-Typ Anschlussseite
M8
- Herst.-Teilenr.
6065943
- Polzahl
4
- UKCA
Ja
Beschreibung
SICK 6065943 NewSurplus
