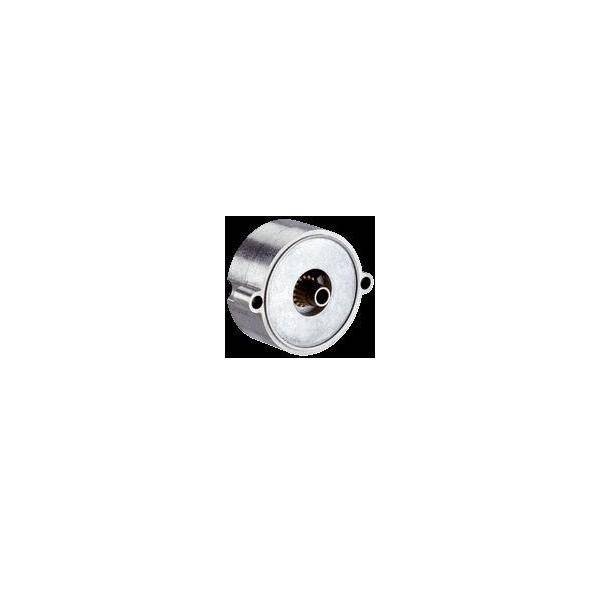

Name: Sick SEK37-HFB0-K02, Motor-Feedback-System, P/n: 1037378
Brand: SICK
SKU: 889514316
Availability: BackOrder

Sick SEK37-HFB0-K02, Motor-Feedback-System, P/n: 1037378-0

Sick SEK37-HFB0-K02, Motor-Feedback-System, P/n: 1037378-1

Sick SEK37-HFB0-K02, Motor-Feedback-System, P/n: 1037378-2

1/3

Produkt-Art

Inkremental-Encoder

Typ

SEK37-HFB0-K02

UKCA

Lieferung Di., 29. Dez. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 128,56

steuerfreie IGL

€ 7,91

14 Tage Rückgaberecht inklusive

Sie haben bereits das beste Angebot für Ihre Menge.

Die optimale Auswahl für die eingegebene Menge wird automatisch berechnet, inklusive Preis (exkl. Versand) und Lieferzeit.

Rechtliche Bedenken melden

Technische Daten

MTTF D (mean time to dangerous failure): 275years ENISO1384
Sine/cosine periods per revolution16
Number of the absolute ascertainable revolutions: 1
Maximum number of steps per revolution512via RS485
Total number of steps: 512
Measuring step: 20″ For interpolation of the sine/cosine signals with, e.g., 12bits
Integral nonlinearity: 288″, Error limits for evaluating sine/cosine period Typical values at nominal position 0.1mm und +20 C
Differential nonlinearity: 144″, Nonlinearity within a sine/cosine period, typical values at nominal position 0.1mm und +20 C
Operating speed: 6,000min, up to which the absolute position can be reliably produced
Available memory area: 1,792Byte
System accuracy: 432″
Type of code for the absolute value: Binary
Code sequence: Increasing, when turning the shaft For clockwise rotation, looking in direction A (see dimensional drawing), For clockwise shaft rotation, looking in direction A (see dimensional drawing)
Communication interface: HIPERFACE ®
Connection type: Male connector, 8pin, radial
Supply voltage 7VDC... 12VDC
Recommended supply voltage 8VDC
Current consumption: 50mA
Shaft version: Tapered shaft
Dimensions: See dimensional drawing
Weight: 0.05kg
Moment of inertia of the rotor: 1gcm
Operating speed: 12,000min, 12,000U/min
Angular acceleration: 500,000rad/s
Permissible radial shaft movement: 0.15mm
Permissible axial shaft movement: 0.3mm
Operating temperature range: 40C... +115C
Storage temperature range: 50C... +125C, without package
Relative humidity/condensation: 90%, Condensation not permitted
Resistance to shocks: 100g, 10ms (according to EN6006822
Frequency range of resistance to vibrations: 50g, 10Hz... 2,000Hz (EN600682
EMC: According to EN6100062 and EN6100063
Enclosure rating: IP20, builton version, with mating connector inserted and closed cover (IEC6052
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
ECLASS 5.0: 27270590
ECLASS 5.1.4: 27270590
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270590
ECLASS 8.0: 27270590
ECLASS 8.1: 27270590
ECLASS 9.0: 27270590
ECLASS 10.0: 27273805
ECLASS 11.0: 27273901
ECLASS 12.0: 27273901
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Inkremental-Encoder

Typ: SEK37-HFB0-K02

UKCA: Ja

Beschreibung

Sick Motor-Feedback-System SEK37-HFB0-K02

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Motor-Feedback-System rotativTyp:SEK37-HFB0-K02Standard für Schnittstellen:sonstigeProgrammierbar:jaSchutzart (IP):IP20
Sick Motor-Feedback-System SEK37-HFB0-K02: weitere Details
Motor-Feedback-Systeme rotativ HIPERFACE®, SEK/SEL, SEK37-HFB0-K02, Kommunikationsschnittstelle: HIPERFACE®, Ausführung: Absolut-Singleturn, Bauart: Einbau, Sinus-/Cosinusperioden pro Umdrehung: 16, Sicherheitsgerichtetes System: nein, Mechanische Ausführung: Konuswelle, Anschlussart: Stecker, 8-polig, radial, Betriebstemperaturbereich: 40 °C ... +115 °C EAN: 4047084268205

Geliefert wird: Sick Motor-Feedback-System rotativ SEK37-HFB0-K02, Verpackungseinheit: 1 Stk., EAN: 4047084268205
