Planet Switch 16 x 10/100/1000 an DIN-Schiene montierbar wandmontierbar AC 24 V / DC 12 48 V

16x 10/100/1000BASE-T RJ45 with auto MDI/MDI-X
function Layer 2 Features: Complies with IEEE
802.3 10BASE-T,
IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
Ethernet standard Supports auto-negotiation and
10/100/1000Mbps half/full duplex mode Prevents
packet loss with back pressure (half-duplex) and
IEEE 802.3x pause frame flow control (full-duplex)
Complies with IEEE 802.3az Energy Efficient Ethernet
(EEE)  IEEE 802.1p CoS Supports 8K MAC address
Automatic address learning and address aging Industrial
Case and Installation: IP30 metal case DIN-rail
and wall-mount designs 12 to 48V DC,
redundant power with reverse polarity protection
24V AC power input  Supports 6000 VDC Ethernet
ESD protection -40 to 75 degrees C operating temperature Free fall,
shock-proof and vibration-proof for industries

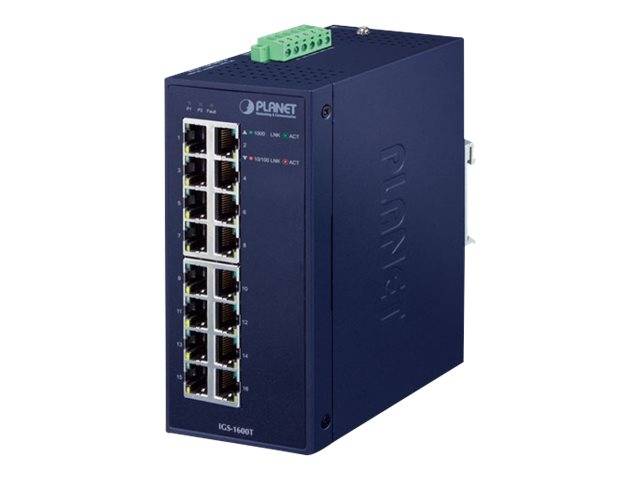

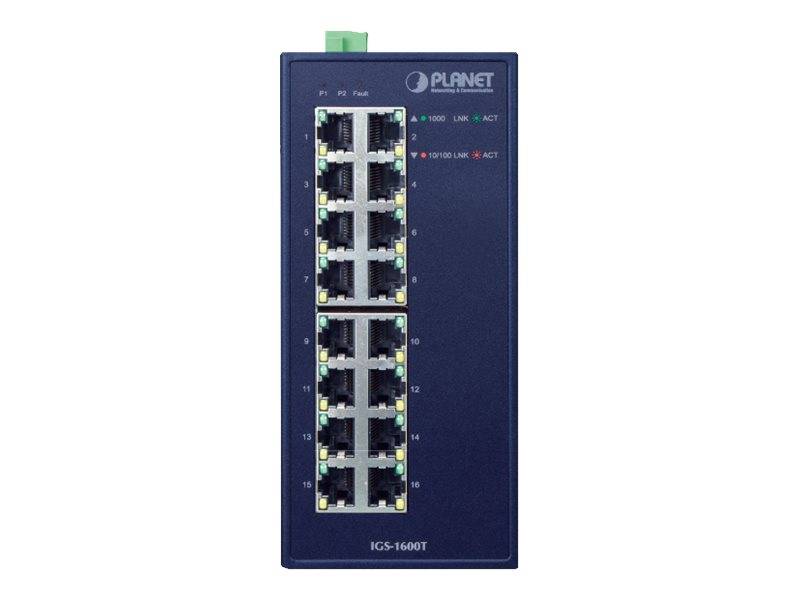

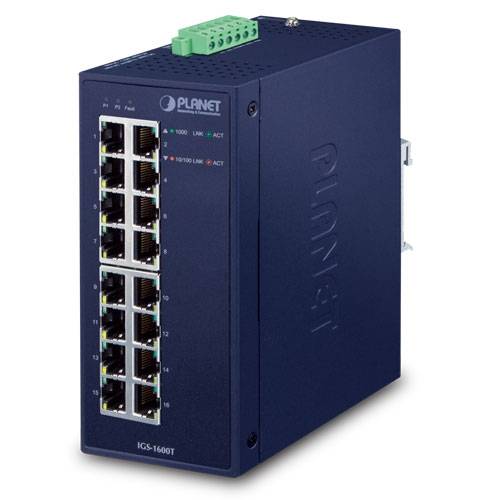

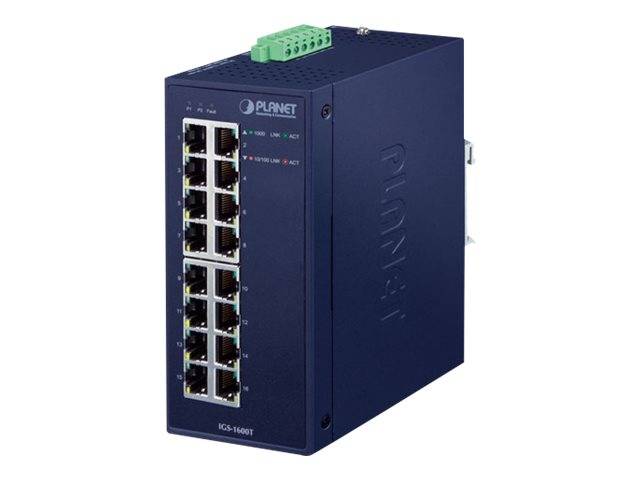

PLANET IGS-1600T Industrial high-density 16-port
10/100/1000T Gigabit Ethernet Switch is equipped
with a rugged IP30 metal case for stable operation
in heavy industrial demanding environments.
Thus, the IGS-1600T provides a high level of immunity
against electromagnetic interference and heavy
electrical surges which are usually found on plant
floors or in curbside traffic control cabinets.
Industrial-grade, Flexible and Environmentally-hardened
Design:The IGS-1600T possesses an integrated power
supply source with a wide range of voltages (12
to 48V DC or 24V AC) for worldwide high availability
applications requiring dual or backup power inputs.
Being able to operate under wide temperature range
from -40 to 75 degrees C,
the IGS-1600T can be placed in almost any difficult environment.
The IGS-1600T also allows either DIN rail or wall
mounting for efficient use of cabinet space.
Robust Protection:The IGS-1600T provides a contact
discharge of ±6KV DC and air discharge of ±6KV
DC for Ethernet ESD protection.
It also supports ±6KV surge immunity to improve
product stability and protects users’ networks
from devastating ESD attacks,
making sure the flow of operation does not fluctuate.
Dual Power Input for High Availability Network
System:The IGS-1600T features a strong dual power
input system with wide-ranging voltages (12V~48V
DC or 24V AC) incorporated into customer’s automation
network to enhance system reliability and uptime.
In the example below, when power supply 1 fails to work,
the hardware failover function will be activated
automatically to keep powering the IGS-1600T via
power supply 2 alternatively without any loss of operation.
Energy Savings:The IGS-1600T, integrated with
advanced green networking technologies and IEEE
802.3az protocol based power savings,
is able to provide power savings of up to 50%
but maintain high performance efficiently.
Link Down power savings:The Link Down power savings
goes beyond IEEE specifications to automatically
lower power consumption for a given port when
it is not linked.
With the Link Down power saving technology, the
IGS-1600T will automatically adjust power usage
of the ports that are shut down or not connected
to network device.
Intelligent power scale based on cable length:Intelligent
power scale is an intelligent algorithm that actively
determines the appropriate power level based on cable length.
When the IGS-1600T is connected with Ethernet
cable shorter than 20m,
a device can obtain maximum power savings because
the IGS-1600T would automatically detect the Ethernet
cable length and diminish power usage.
The connected device can substantially reduce
the overall power consumption,
which makes a significant contribution to energy savings.
