SICK - 1040468 - DT500-A123
EAN:
Hst.-Teile-Nr.:
Bestell-Nr.:
Verpackungsart
Piece
Produkt-Art
Long-Range-Distanzsensor
Max. Reichweite im Freifeld
30 m
Typ
DT500-A123
Inhalt
1 St.
3 Stück
Verkauf und Versand:
versandkostenfrei ab € 199,00 Bestellwert bei diesem Anbieter
Anzahl
Gesamt
€ 2.850,21
steuerfreie IGL
Nur noch 3 Stück verfügbar
Technische Daten
- Measuring range: 0.2m... 30m, 90% remission factor 0.8m... 15m, 6% remission factor
- Target: Natural objects
- Resolution: 0.1mm
- Repeatability: 1mm
- Measurement accuracy: 3mm
- Response time: 250ms
- Output time: 250ms
- Light source: Laser, red
- visible red light
- Type of light: Visible red light
- Laser class: 2, complies with 21CFR 1040.10and 1040.11except for the conformance according to Laser Notice No. 50 from June 24, 2007(IEC608251:2014, EN608251:201
- Typ. light spot size (distance): 10mm (at 7m) 45mm (at 30m) 100mm (at 70m)
- Safetyrelated parameters:
- MTTF D : 101years
- DC avg : 0%
- Safetyrelated parameters:
- MTTF D : 101years
- DC avg : 0%
- CAN
- Remark: Layer 2
- Multifunctional input (MF): PNP
- Laseroff input: 12V
- CAN
- Remark: Layer 2
- Supply voltage U B : DC 10V... 30V, reverse polarity protected U V DC 24V for devices with heating
- Power consumption: Typ.3W
- Ripple: 5V pp
- Initialization time: 500ms
- Enclosure rating: IP65
- Protection class: II
- Dimensions (Wx Hx D): 69mmx 50mmx 153mm
- Housing material: Metal (Aluminum die cast)
- Window material: Glass
- Weight: 1,000g

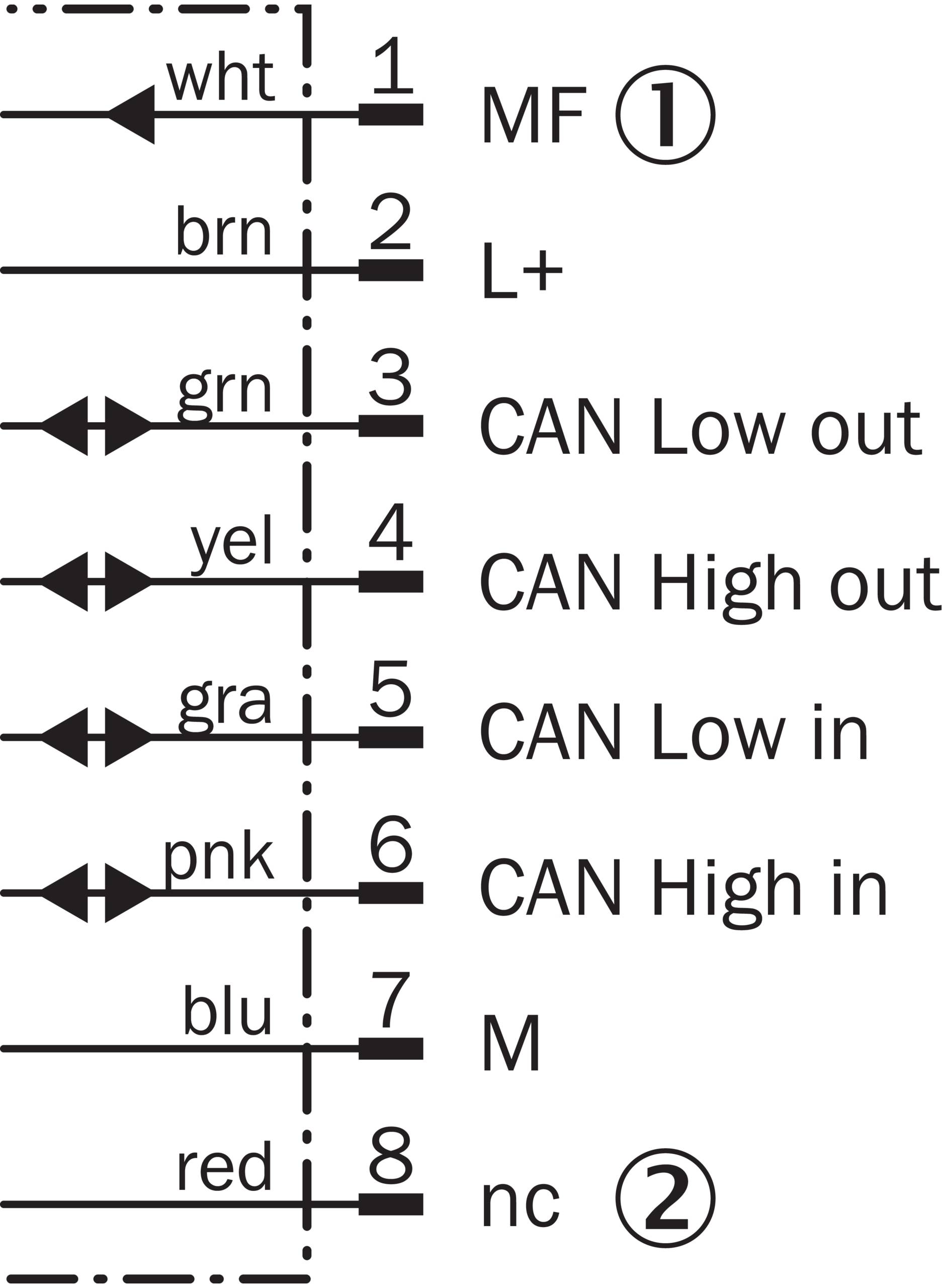

- Connection type: Male connector, M12, 8pin
- Ambient temperature, operation: 10C... +45C 10C... +75C, operation with cooling case
- Ambient temperature, storage: 25C... +75C
- Temperature drift: Typ.0.05mm/K
- Typ. Ambient light immunity: 3,000lx
- Mechanical load: Shock: (EN600 68227 / 22 Sine: (EN600 682 Noise: (EN600 6826
- Electromagnetic compatibility (EMC): EN6100062 / EN6100063
- EU declaration of conformity
- UK declaration of conformity
- ACMA declaration of conformity
- MAR declaration of conformity
- ChinaRoHS
- ECLASS 5.0: 27270801
- ECLASS 5.1.4: 27270801
- ECLASS 6.0: 27270801
- ECLASS 6.2: 27270801
- ECLASS 7.0: 27270801
- ECLASS 8.0: 27270801
- ECLASS 8.1: 27270801
- ECLASS 9.0: 27270801
- ECLASS 10.0: 27270801
- ECLASS 11.0: 27270801
- ECLASS 12.0: 27270916
- ETIM 5.0: EC001825
- ETIM 6.0: EC001825
- ETIM 7.0: EC001825
- ETIM 8.0: EC001825
- UNSPSC 16.0901: 41111613
- Verpackungsart
Piece
- Produkt-Art
Long-Range-Distanzsensor
- Typ
DT500-A123
- Inhalt
1 St.
- Betriebsspannung
10 V/DC
- Sendertyp
Halbleiter-Laser Rot
- Strahldurchmesser
10 mm
- Laser-Klasse
2
- Auflösung
0.1 mm
- Reichweite min. (im Freifeld)
0.2 m
30 m
- Toleranz ±
3 mm
- Min. Temperatur
-10 °C
- Max. Temperatur
45 °C
- Länge
153 mm
- Breite
69 mm
- Höhe
50 mm
- Abm.
(L x B x H) 153 x 69 x 50 mm
- Gewinde-Typ Anschlussseite
M12
- Herst.-Teilenr.
1040468
- Polzahl
8
