Sick Absolut-Encoder AFM60A-BKEB018x12 kaufen

Sick Absolut-Encoder AFM60A-BKEB018x12-0

Sick Absolut-Encoder AFM60A-BKEB018x12-1

Sick Absolut-Encoder AFM60A-BKEB018x12-2

1/3

Produkt-Art

Absolut-Encoder

Typ

1059052

Lieferung Do., 5. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 1.321,58

steuerfreie IGL

€ 7,92

Rechtliche Bedenken melden

Technische Daten

Number of steps per revolution (max. resolution): 262,144(18bit)
Number of revolutions: 4,096(12bit)
Max. resolution (number of steps per revolutionx number of revolutions): 18bitx 12bit (262,144x 4,09
Error limits G: 0.03
Repeatability standard deviation σ r : 0.002
Communication interface: EtherCAT ®
Communication Interface detail: CoE (CAN over EtherCAT®)
Encoder profile: CiA DS406
Data transmission rate (baud rate): 10Mbit/s, 100Mbit/s
Transmission medium: CAT5e cable
Initialization time: 6s
Cycle time: 125s... 100ms
Parameterising data: Number of steps per revolution Number of revolutions PRESET Counting direction Sampling rate for speed calculation Unit for output of the speed value Round axis functionality Singleturn or multiturn access mode Quicker data exchange mode Electronic cams
Available diagnostics data: Minimum and maximum temperature Maximumspeed Position monitoring Poweron counter Operatinghours counter poweron/motion Counter of direction changes/number of movements cw/number of movements ccw Minimum andmaximum operating voltage Signal monitoring for singleturn and multiturn

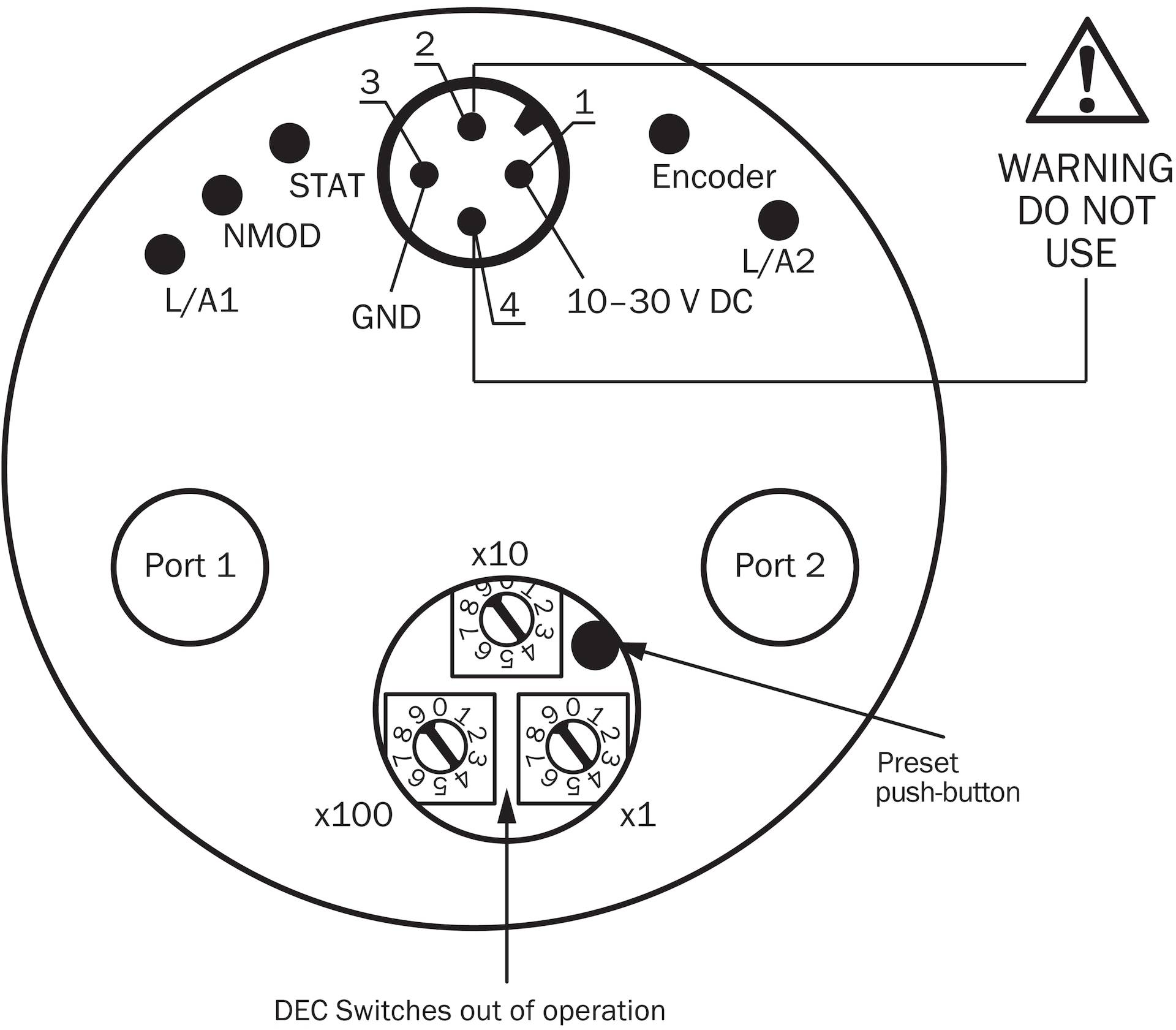

Connection type: Male connector, Female connector, 1x, 2x, M12, M12, 4pin, 4pin, axial, axial
Supply voltage 10... 30V
Power consumption: 3W (without load)
Reverse polarity protection:
MTTFd: mean time to dangerous failure: 80years ENISO13849
Mechanical design: Blind hollow shaft
Shaft diameter: 1/4″
Weight: 0.2kg
Shaftmaterial: Stainless steel
Flange material: Aluminum
Housing material: Aluminum
Start up torque: 0.8Ncm ( +20C)
Operating torque: 0.6Ncm ( +20C)
Permissible movement static: 0.3mm (radial) 0.5mm (axial)
Permissible movement dynamic: 0.05mm (radial) 0.1mm (axial)
Operating speed: 6,000min
Moment of inertia of the rotor: 40gcm
Bearing lifetime: 3x 10^9revolutions
Angular acceleration: 500,000rad/s
EMC: According to EN6100062 and EN6100063
Enclosure rating: IP65, shaft side (IEC6052 IP67, housing side (IEC6052
Permissible relative humidity: 90% (Condensation not permitted)
Operating temperature range: 40C... +85C
Storage temperature range: 40C... +100C, without package
Resistance to shocks: 100g, 6ms (EN6006822
Resistance to vibration: 30g, 10Hz... 2,000Hz (EN600682
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
cTUVus Certificate
ECLASS 5.0: 27270502
ECLASS 5.1.4: 27270502
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270502
ECLASS 8.0: 27270502
ECLASS 8.1: 27270502
ECLASS 9.0: 27270502
ECLASS 10.0: 27270502
ECLASS 11.0: 27270502
ECLASS 12.0: 27270502
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Absolut-Encoder

Typ: 1059052

Beschreibung

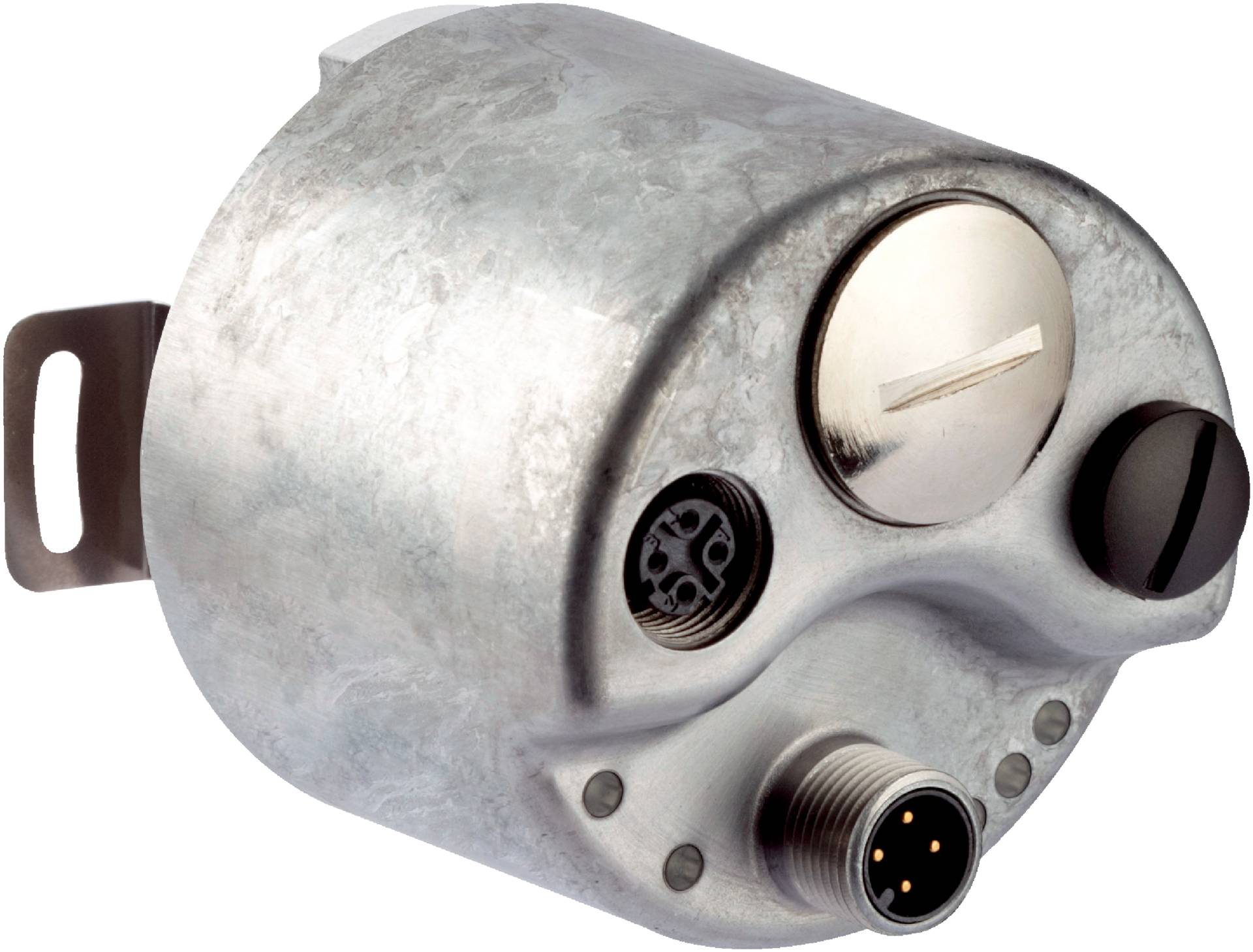

Sick Absolut-Encoder AFM60A-BKEB018x12

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Absolut-Encoder Typ:AFM60A-BKEB018x12Standard für Schnittstellen:EthernetAnzahl der Umdrehungen:4096Programmierbar:jaAusführung des Übertragungsweges:KupferWerkstoff des Gehäuses:AluminiumSchutzart (IP):IP65
Sick Absolut-Encoder AFM60A-BKEB018x12: weitere Details
Absolut-Encoder, AFS/AFM60 Ethernet, AFM60A-BKEB018x12, Singleturn oder Multiturn Ausführung: Multiturn, Auflösung max.: 18 bit x 12 bit (262.144 x 4.096), Mechanische Ausführung: Aufsteckhohlwelle 1/4"
, Kommunikationsschnittstelle: EtherCAT®, CoE (CAN over EtherCAT®), programmierbar, Anschlussart: Stecker, 1x, M12, 4-polig, axialDose, 2x, M12, 4-polig, axial, Programmierschnittstelle: Über SPS-Engineering-Tool

Geliefert wird: Sick Absolut-Encoder AFM60A-BKEB018x12, Verpackungseinheit: 1 Stk., EAN:
