Name: Sick AFM60A-BFNB018x12, AFS/AFM60 Ethernet, P/n: 1059033
Brand: SICK
SKU: 889379915
Availability: BackOrder

Sick AFM60A-BFNB018x12, AFS/AFM60 Ethernet, P/n: 1059033-0

Sick AFM60A-BFNB018x12, AFS/AFM60 Ethernet, P/n: 1059033-1

Sick AFM60A-BFNB018x12, AFS/AFM60 Ethernet, P/n: 1059033-2

1/3

Produkt-Art

Absolut-Encoder

Typ

AFM60A-BFNB018x12

UKCA

Lieferung Mi., 16. Dez. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 1.383,50

steuerfreie IGL

€ 7,91

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Technische Daten

Number of steps per revolution (max. resolution): 262,144(18bit)
Number of revolutions: 4,096(12bit)
Max. resolution (number of steps per revolutionx number of revolutions): 18bitx 12bit (262,144x 4,09
Error limits G: 0.03
Repeatability standard deviation σ r : 0.002
Communication interface: PROFINET
Encoder profile: V4.1class3
Data transmission rate (baud rate): 10Mbit/s, 100Mbit/s
Transmission medium: CAT5e cable
Initialization time: 6s
Cycle time: 1ms
Parameterising data: Number of steps per revolution Number of revolutions PRESET Counting direction Sampling rate for speed calculation Unit for output of the speed value Round axis functionality
Available diagnostics data: Minimum and maximum temperature Maximumspeed Poweron counter Operatinghours counter poweron/motion Counter of direction changes/number of movements cw/number of movements ccw Maximum supply voltage

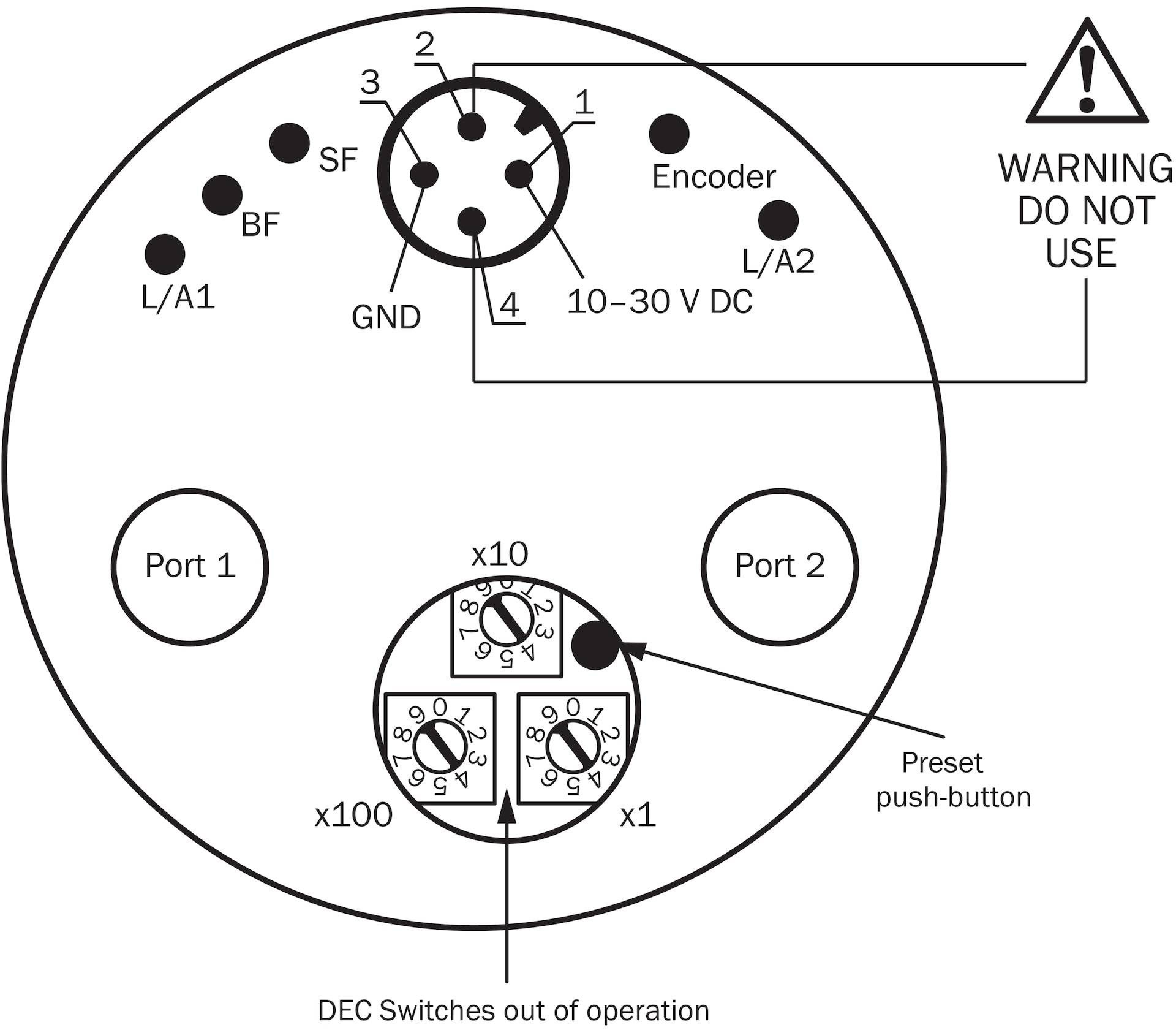

Connection type: Male connector, Female connector, 1x, 2x, M12, M12, 4pin, 4pin, axial, axial
Supply voltage 10... 30V
Power consumption: 3W (without load)
Reverse polarity protection:
MTTFd: mean time to dangerous failure: 80years ENISO13849
Mechanical design: Blind hollow shaft
Shaft diameter: 1/2″
Weight: 0.2kg
Shaftmaterial: Stainless steel
Flange material: Aluminum
Housing material: Aluminum
Start up torque: 0.8Ncm ( +20C)
Operating torque: 0.6Ncm ( +20C)
Permissible movement static: 0.3mm (radial) 0.5mm (axial)
Permissible movement dynamic: 0.05mm (radial) 0.1mm (axial)
Operating speed: 6,000min
Moment of inertia of the rotor: 40gcm
Bearing lifetime: 3x 10^9revolutions
Angular acceleration: 500,000rad/s
EMC: According to EN6100062 and EN6100063
Enclosure rating: IP65, shaft side (IEC6052 IP67, housing side (IEC6052
Permissible relative humidity: 90% (Condensation not permitted)
Operating temperature range: 40C... +85C
Storage temperature range: 40C... +100C, without package
Resistance to shocks: 100g, 6ms (EN6006822
Resistance to vibration: 30g, 10Hz... 2,000Hz (EN600682
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
cTUVus Certificate
Profinet Certificate
ECLASS 5.0: 27270502
ECLASS 5.1.4: 27270502
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270502
ECLASS 8.0: 27270502
ECLASS 8.1: 27270502
ECLASS 9.0: 27270502
ECLASS 10.0: 27270502
ECLASS 11.0: 27270502
ECLASS 12.0: 27270502
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Absolut-Encoder

Typ: AFM60A-BFNB018x12

UKCA: Ja

Beschreibung

Sick Absolut-Encoder AFM60A-BFNB018x12

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Absolut-Encoder Typ:AFM60A-BFNB018x12Standard für Schnittstellen:PROFIBUSAnzahl der Umdrehungen:4096Programmierbar:jaAusführung des Übertragungsweges:KupferWerkstoff des Gehäuses:AluminiumSchutzart (IP):IP65
Sick Absolut-Encoder AFM60A-BFNB018x12: weitere Details
Absolut-Encoder, AFS/AFM60 Ethernet, AFM60A-BFNB018x12, Singleturn oder Multiturn Ausführung: Multiturn, Auflösung max.: 18 bit x 12 bit (262.144 x 4.096), Mechanische Ausführung: Aufsteckhohlwelle 1/2"
, Kommunikationsschnittstelle: PROFINET, programmierbar, Anschlussart: Stecker, 1x, M12, 4-polig, axialDose, 2x, M12, 4-polig, axial, Programmierschnittstelle: Über SPS-Engineering-Tool EAN: 4047084332005

Geliefert wird: Sick Absolut-Encoder AFM60A-BFNB018x12, Verpackungseinheit: 1 Stk., EAN: 4047084332005
