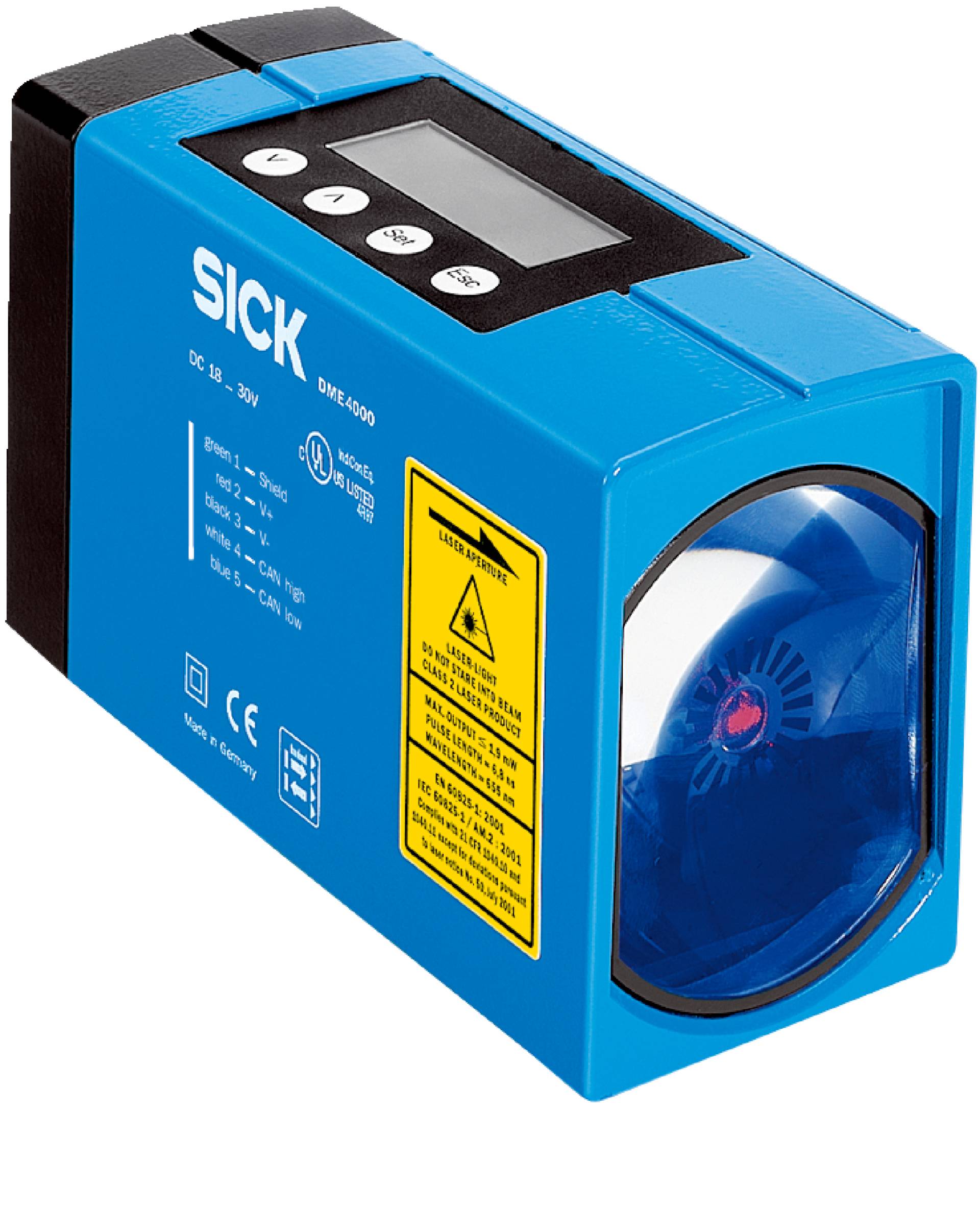

Name: Sick DME4000-211, Laser-Distanzsensor, P/n: 1029790
Brand: SICK
SKU: 889439725
Availability: InStock

Sick DME4000-211, Laser-Distanzsensor, P/n: 1029790-0

Sick DME4000-211, Laser-Distanzsensor, P/n: 1029790-1

Sick DME4000-211, Laser-Distanzsensor, P/n: 1029790-2

1/3

Produkt-Art

Long-Range-Distanzsensor

Max. Reichweite im Freifeld

130 m

Typ

DME4000-211

Inhalt

1 St.

Betriebsspannung

24 V/DC

Sofort-Lieferung Mi., 14. Okt.

6 Stück

Verkauf und Versand:

Cetra IT Österreich Widerruf

versandkostenfrei ab € 199,00 Bestellwert bei diesem Anbieter

Anzahl

Stück

Gesamt

€ 2.040,74

steuerfreie IGL

Kostenfreier Versand

Nur noch 6 Stück verfügbar

14 Tage Rückgaberecht inklusive

Sie haben bereits das beste Angebot für Ihre Menge.

Die optimale Auswahl für die eingegebene Menge wird automatisch berechnet, inklusive Preis (exkl. Versand) und Lieferzeit.

Rechtliche Bedenken melden

Technische Daten

Measuring range: 0.15m... 130m, on diamond grade reflective tape
Target: Reflector
Resolution: 0.05mm... 5mm
Repeatability: 2mm
Measurement accuracy: 5mm
Response time: 6ms
Output time: 1ms
Light source: Laser, red
visible red light
Type of light: Visible red light
Laser class: 2, complies with 21CFR 1040.10and 1040.11except for the conformance according to Laser Notice No. 50 from June 24, 2007(IEC608251:2014, EN608251:201
Typ. light spot size (distance): 130mm (at 70m) 270mm (at 150m) 360mm (at 220m)
Max. movement speed: 10m/s
Safetyrelated parameters:
MTTF D : 101years
DC avg : 0%
Safetyrelated parameters:
MTTF D : 101years
DC avg : 0%
SSI:
Digital output:
Number: 2
Type: Pushpull: PNP/NPN
Maximum output current I A : 100mA
Multifunctional input (MF): 1xMF
SSI:
Digital output:
Number: 2
Type: Pushpull: PNP/NPN
Maximum output current I A : 100mA
Supply voltage U B : DC 18V... 30V, limit values
Current consumption: At 24VDC 250mA
Ripple: 5V pp
Initialization time: 1.5s
Indication: Display
Enclosure rating: IP65
Protection class: II
Dimensions (Wx Hx D): 61mmx 85mmx 166mm
Housing material: Metal (zinc diecast)
Window material: Glass
Weight: Approx.1,650g

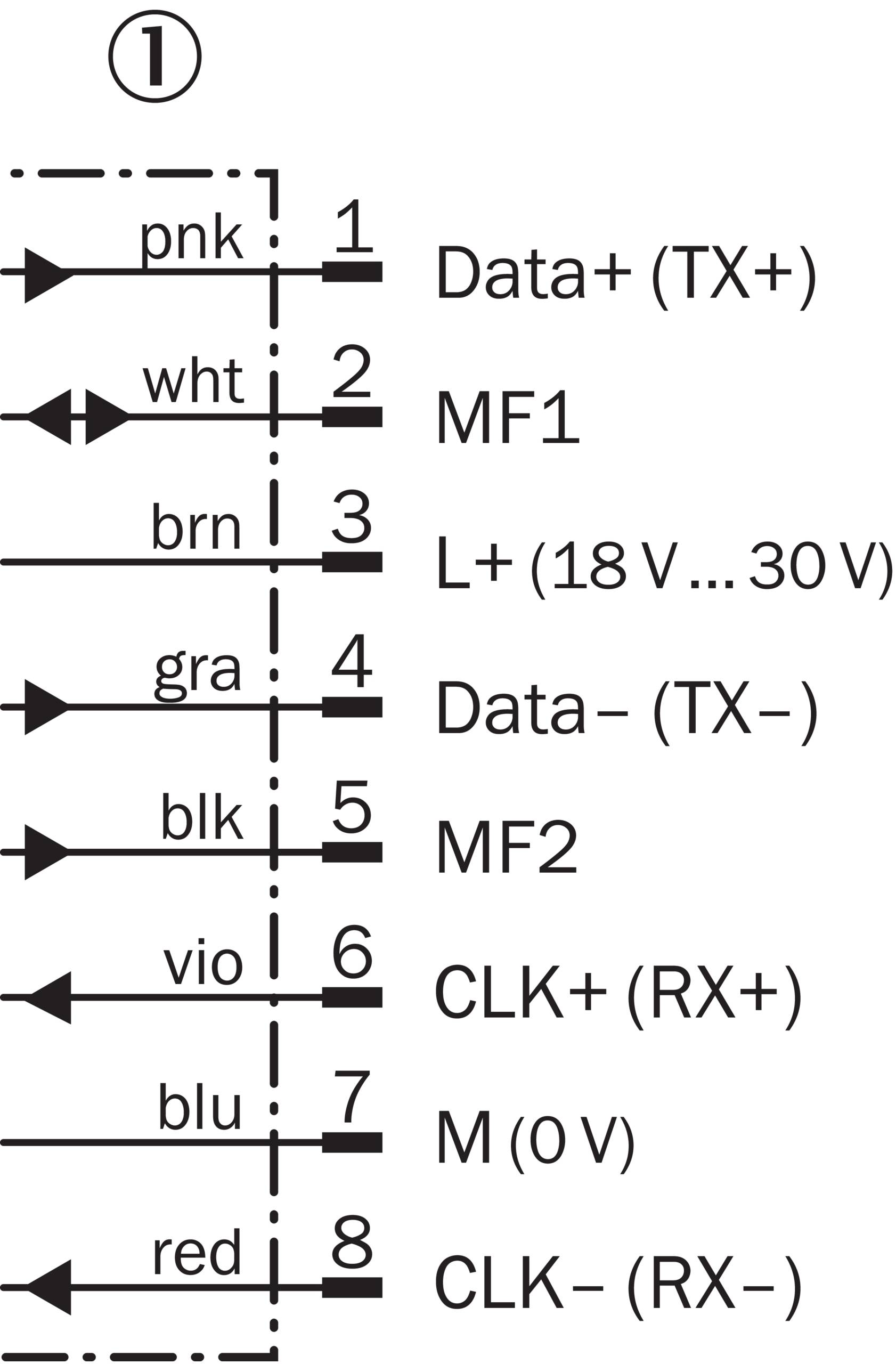

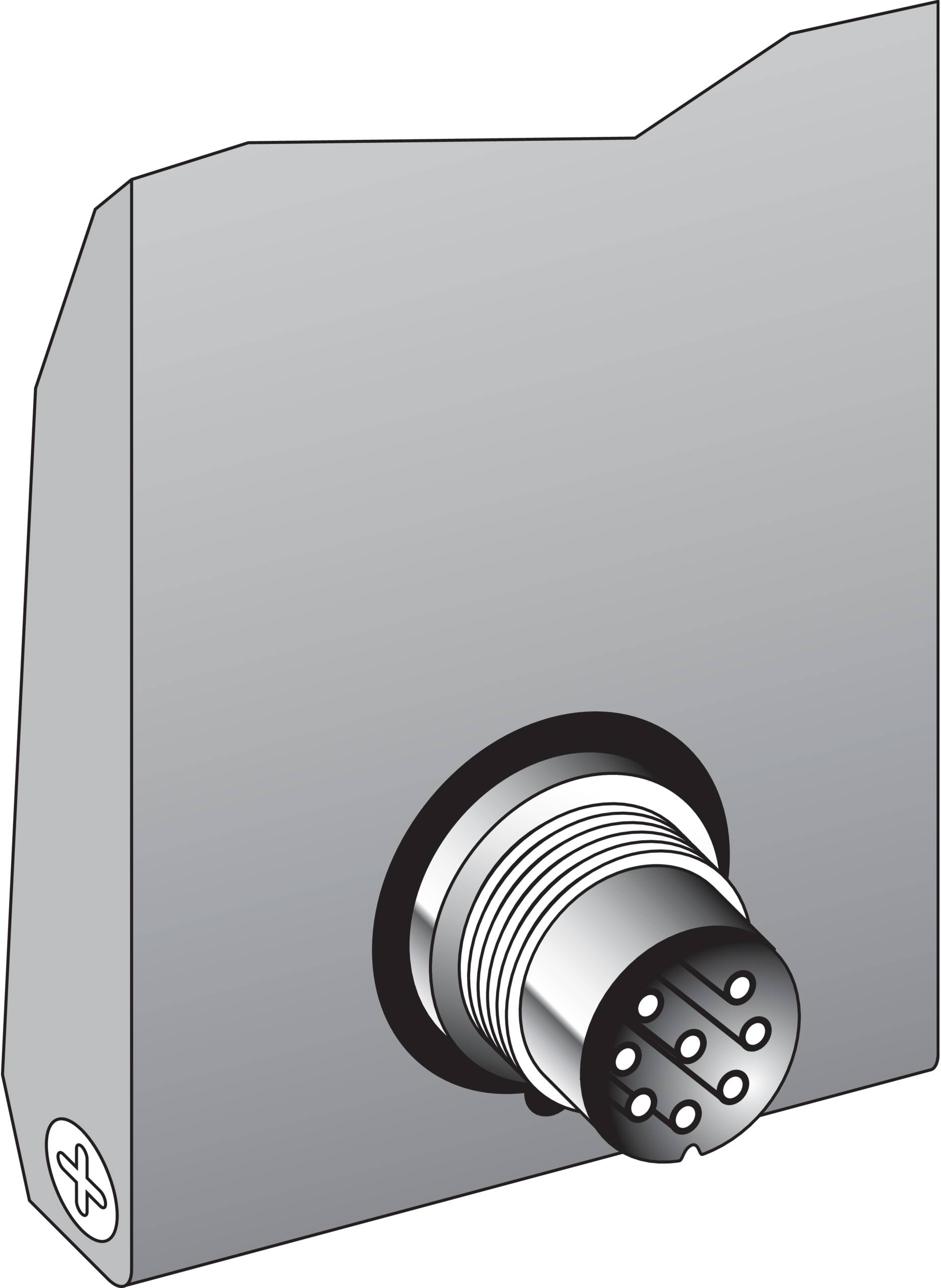

Connection type: Male connector, M16, 8pin
Ambient temperature, operation: 10C... +55C 10C... +75C, operation with cooling case
Ambient temperature, storage: 25C... +75C
Effect of air pressure: 0.3ppm/hPa
Effect of air temperature: 1ppm/K
Temperature drift: Typ.0.1mm/K
Typ. Ambient light immunity: 40,000lx
Mechanical load: Shock: (EN600 68227 / 22 Sine: (EN600 682 Noise: (EN600 6826
Electromagnetic compatibility (EMC): EN6100062, EN55011: Class B
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
ECLASS 5.0: 27270801
ECLASS 5.1.4: 27270801
ECLASS 6.0: 27270801
ECLASS 6.2: 27270801
ECLASS 7.0: 27270801
ECLASS 8.0: 27270801
ECLASS 8.1: 27270801
ECLASS 9.0: 27270801
ECLASS 10.0: 27270801
ECLASS 11.0: 27270801
ECLASS 12.0: 27270916
ETIM 5.0: EC001825
ETIM 6.0: EC001825
ETIM 7.0: EC001825
ETIM 8.0: EC001825
UNSPSC 16.0901: 41111613
