Sick DT1000-S11101, Laser-Abstandssensor, P/n: 1075436 kaufen

Sick DT1000-S11101, Laser-Abstandssensor, P/n: 1075436-0

Sick DT1000-S11101, Laser-Abstandssensor, P/n: 1075436-1

Sick DT1000-S11101, Laser-Abstandssensor, P/n: 1075436-2

1/3

Produkt-Art

Long-Range-Distanzsensor

Max. Reichweite im Freifeld

460 m

Typ

DT1000-S11101

Inhalt

1 St.

Betriebsspannung

18 V/DC

Lieferung Do., 19. Nov. 2026

10 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 8.995,39

steuerfreie IGL

€ 7,91

Nur noch 10 Stück verfügbar

Rechtliche Bedenken melden

Technische Daten

Measurement principle: HDDM +
Measuring range: 0.2m... 155m, 6% remission factor 0.2m... 460m, 90% remission factor
Target: Natural objects
Resolution: 0.001mm... 100mm, adjustable

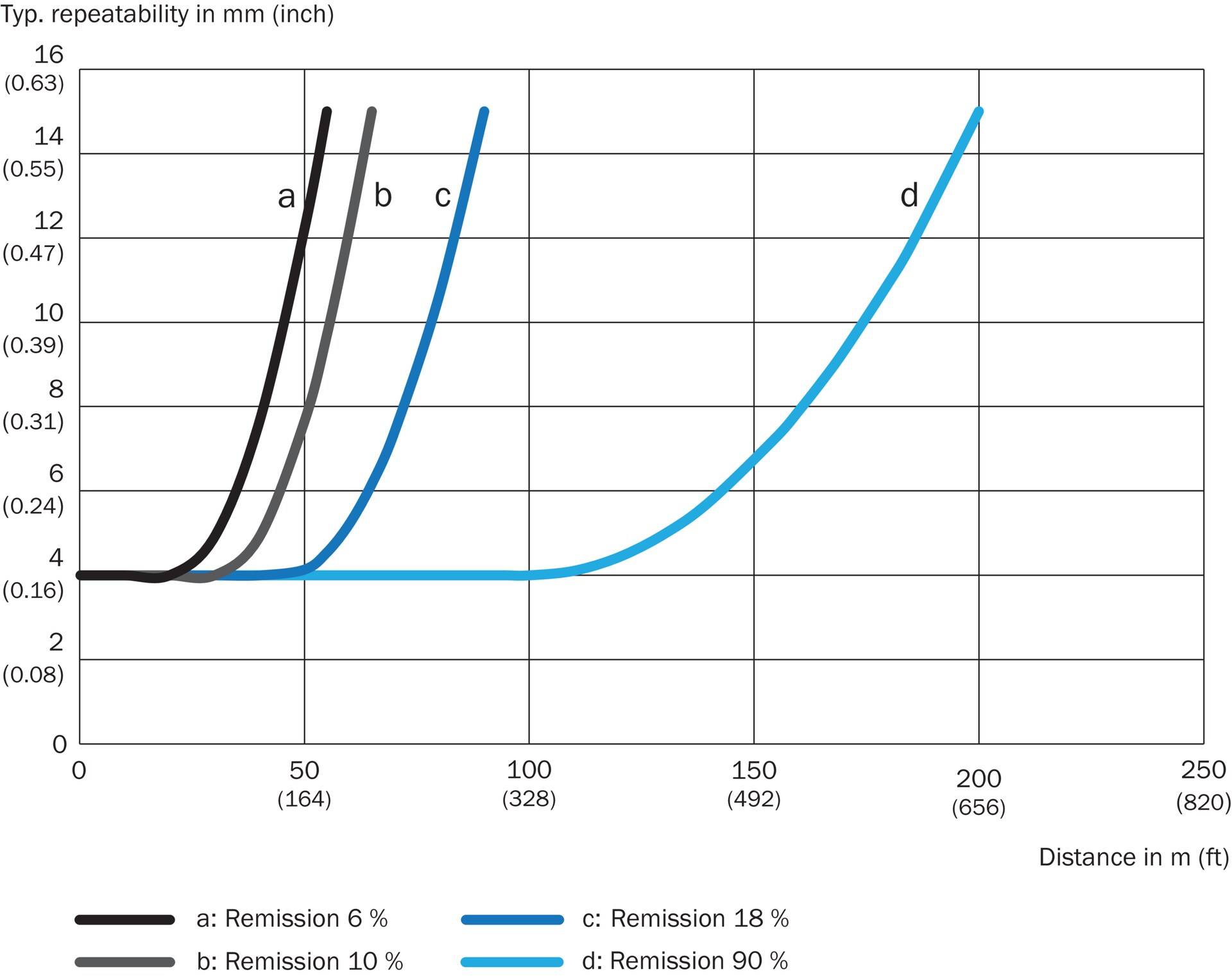

Repeatability: ≥1mm, See repeatability characteristic lines
Measurement accuracy: Typ. 15mm
Response time: 3ms... 384ms
Measurement cycle time: 1ms 4ms 16ms 64ms 128ms
Output time: 1ms
Light source: Infrared light (905nm, measuring laser) Visible red light (650nm, Adjustment aid)
Laser class: 1, even with simultaneous operation of measurement and alignment laser (IEC608251:2014, EN608251:201
Typ. light spot size (distance): 5mmx 20mm (at 1m) 1 20mmx 20mm (at 5m) 1 35mmx 25mm (at 10m) 1 150mmx 50mm (at 50m) 1 290mmx 80mm (at 100m) 1 570mmx 140mm (at 200m) 1
Filter: Rain and snow filter Fog filter Moving average distance value Kalman filter Moving average speed value
Max. object temperature: +1,400C 1
Additional function: Selection of relevant distance and signal level range Selection of first or last echo in selected distance and signal level range
Average laser service life (at 25C): 100,000h 1
Max. movement speed: 128m/s
Safetyrelated parameters:
MTTF D : 101years
DC avg : 0%
Safetyrelated parameters:
MTTF D : 101years
DC avg : 0%
Ethernet: TCP/IP
Function: Parameterization, output of measurement data
Data transmission rate: 10/100MBit/s
Serial: RS422
Remark: Switchable to SSI
Function: Parameterization, output of measurement data
SSI:
Remark: Switchable to RS422
Function: Output of measurement data
Inputs/outputs:
In1/Q1: Digital input, digital output (Switchable)
QA/Q2: Analog output, digital output (Switchable)
Q 3 : Digital output
Q 4 : Digital output
In 2 : Digital input
Digital input: Internal pulldown circuit
HIGH switching voltage min. 13V... max. supply voltageLOW switching voltage max. 5Vswitching functions: deactivate measuring laser, activate alignment laser, preset
Digital output:
Number: 2... 4
Type: Pushpull: PNP/NPN
Maximum output current I A : 100mA
Analog output:
Number: 1
Type: Current output
Current: 4mA... 20mA
Resolution: 16bit
Ethernet: TCP/IP
Function: Parameterization, output of measurement data
Data transmission rate: 10/100MBit/s
Serial: RS422
Remark: Switchable to SSI
Function: Parameterization, output of measurement data
SSI:
Remark: Switchable to RS422
Function: Output of measurement data
Inputs/outputs:
In1/Q1: Digital input, digital output (Switchable)
QA/Q2: Analog output, digital output (Switchable)
Q 3 : Digital output
Q 4 : Digital output
In 2 : Digital input
Digital output:
Number: 2... 4
Type: Pushpull: PNP/NPN
Maximum output current I A : 100mA
Analog output:
Number: 1
Type: Current output
Current: 4mA... 20mA
Resolution: 16bit
Supply voltage U B : DC 18V... 30V, reverse polarity protected
Power consumption: 22W, With heating switched off 35W, With heating switched on
Ripple: 5V pp
Initialization time: >15s
Indication: Graphical, resistive touch display, status LEDs
Enclosure rating: IP65 IP67
Protection class: III (EN61140)
Dimensions (Wx Hx D): 84mmx 104.4mmx 140.5mm
Housing material: Metal (Aluminum alloy (AlSi
Window material: Glass
Weight: 980g
Connection type: Round connector M12x 1
Ambient temperature, operation: 40C... +55C 40C... +95C, operation with cooling case
Ambient temperature, storage: 40C... +75C
Max. rel. humidity (not condensing): 95%
Effect of air pressure: 0.3ppm/hPa
Effect of air temperature: 1ppm/K
Temperature drift: Typ.0.25mm/K
Typ. Ambient light immunity: 100,000lx
Mechanical load: Shock: 30g / 6ms according to DINEN60068227 (Ea), 6axes Continuous shock: 25g / 6ms according to DINEN60068227 (fatigue), 500shocks, 6axes
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
cULus Certificate
ECLASS 5.0: 27270801
ECLASS 5.1.4: 27270801
ECLASS 6.0: 27270801
ECLASS 6.2: 27270801
ECLASS 7.0: 27270801
ECLASS 8.0: 27270801
ECLASS 8.1: 27270801
ECLASS 9.0: 27270801
ECLASS 10.0: 27270801
ECLASS 11.0: 27270801
ECLASS 12.0: 27270916
ETIM 5.0: EC001825
ETIM 6.0: EC001825
ETIM 7.0: EC001825
ETIM 8.0: EC001825
UNSPSC 16.0901: 41111613

Produkt-Art: Long-Range-Distanzsensor

Typ: DT1000-S11101

Inhalt: 1 St.

Betriebsspannung: 18 V/DC

Besonderheiten: LED-Anzeige

Sendertyp: LED Infrarot

Laser-Klasse: 1

Ausgänge: Analog Strom

Reichweite min. (im Freifeld): 0.2 m

: 460 m

Toleranz ±: 15 mm

Anschluss: M12

Min. Temperatur: -40 °C

Max. Temperatur: +55 °C

Länge: 140.5 mm

Breite: 84 mm

Höhe: 104.4 mm

Abm.: (L x B x H) 140.5 x 84 x 104.4 mm

Gewinde-Typ Anschlussseite: M12 x 1

Herst.-Teilenr.: 1075436

UKCA: Ja

Beschreibung

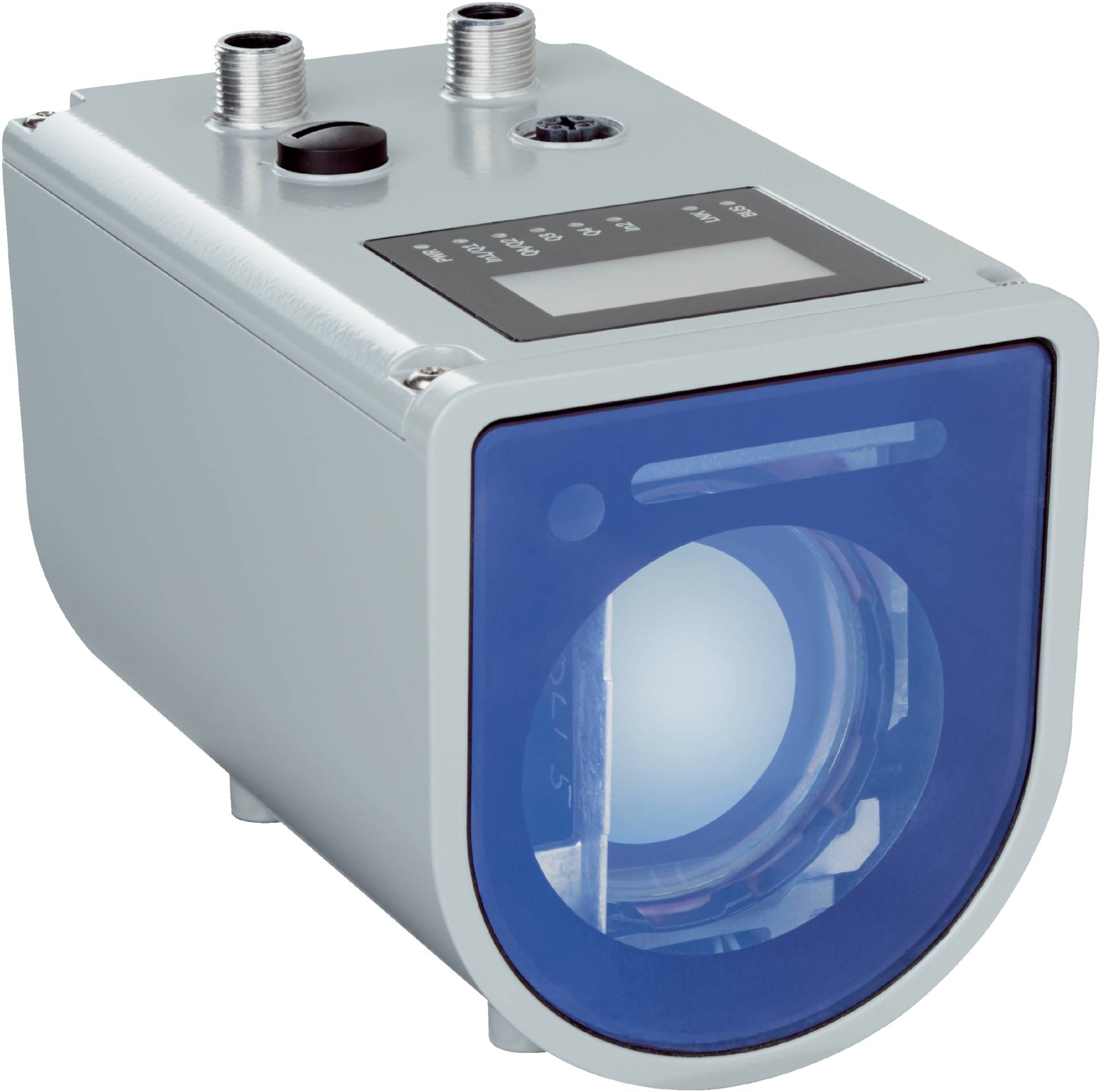

Sick Long-Range-Distanzsensor DT1000-S11101

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Long-Range-Distanzsensor Typ:DT1000-S11101Ausführung des elektrischen Anschlusses:Steckverbinder M12Betriebsmittel-Schutzklasse:Schutzklasse 3Versorgungsspannung:18 VBreite des Sensors:84 mmHöhe des Sensors:104,4 mmLänge des Sensors:140,5 mmLaserschutzklasse:Klasse 1Max. Ausgangsstrom:20 mAMessbereich Länge:155000 mmMessverfahren für optische Abstandsmessung:LichtlaufzeitStandard für Schnittstellen:EthernetSchutzart (IP):IP65Spannungsart:DCUmgebungstemperatur:-40 °CWerkstoff der optischen Fläche:GlasWerkstoff des Gehäuses:sonstige
Sick Long-Range-Distanzsensor DT1000-S11101: weitere Details
Long-Range-Distanzsensoren, Dx1000, DT1000-S11101, Messobjekt: Natürliche Objekte, Messbereich: 0,2 m ... 155 m, 6 % Remission, 0,2 m ... 460 m, 90 % Remission, Wiederholgenauigkeit: = 1 mm, siehe Wiederholgenauigkeitskennlinien, Genauigkeit: Typ. ± 15 mm, Kommunikationsschnittstelle: Ethernet, Seriell, SSI, Art des Analogausgangs: Stromausgang EAN: 4047084387111

Geliefert wird: Sick Long-Range-Distanzsensor DT1000-S11101, Verpackungseinheit: 1 Stk., EAN: 4047084387111
