Sick Inkremental-Encoder DFS20A-A4PBO065536 kaufen

Sick Inkremental-Encoder DFS20A-A4PBO065536-0

Sick Inkremental-Encoder DFS20A-A4PBO065536-1

Sick Inkremental-Encoder DFS20A-A4PBO065536-2

1/3

Produkt-Art

Inkremental-Encoder

Typ

1071473

Lieferung Do., 5. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 1.138,97

steuerfreie IGL

€ 7,91

Rechtliche Bedenken melden

Technische Daten

MTTF D (mean time to dangerous failure): 330years ENISO13849
Pulses per revolution65,536
Measuring step: 90, electric/pulses per revolution
Measuring step deviation: 0.002 pulses 10,000
Error limits: 0.03
Communication interface: Incremental
Communication Interface detail: TTL/ HTL
Factory setting: Factory setting: output level TTL
Number of signal channels: 6channel
0set function via hardware pin:
0SET function: Hactive, L= 0 3V, H= 4,0 U s V
Programmable/configurable:
Initialization time: 40ms
Output frequency: 820kHz
Load current: 30mA
Power consumption: 0.7W (without load)
Connection type: Cable, 9wire, radial, 10m
Supply voltage 4.75... 30V
Reference signal, number: 1
Reference signal, position: 180, electric, gated with A
Reverse polarity protection:
Shortcircuit protection of the outputs:

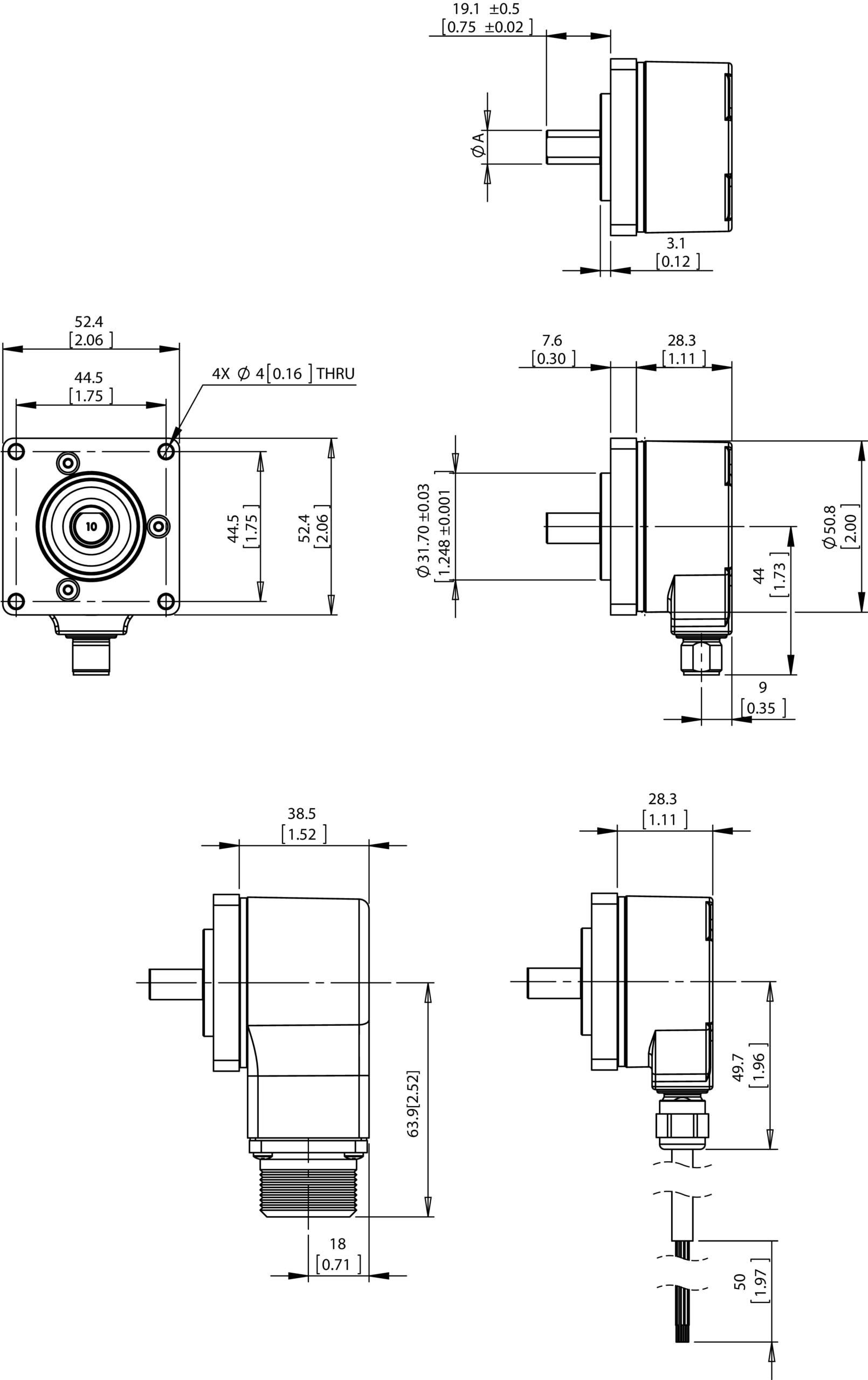

Mechanical design: Solid shaft, Square flange
Shaft diameter: 10mm
With face
Shaft length: 16mm
Weight: +0.4kg
Shaftmaterial: Stainless steel 1,4305
Flange material: Aluminum
Housing material: Aluminum
Start up torque: 0.5Ncm ( +20C)
Operating torque: 0.3Ncm ( +20C)
Permissible shaft loading: 80N (radial) 40N (axial)
Operating speed: 9,000min
Moment of inertia of the rotor: 15gcm
Bearing lifetime: 3.6x 10 9 revolutions
Angular acceleration: 500,000rad/s
EMC: According to EN6100062 and EN6100063
Enclosure rating: IP65, shaft side (IEC6052 IP67, housing side (IEC6052
Permissible relative humidity: 90% (Condensation not permitted)
Operating temperature range: 30C... +85C
Storage temperature range: 40C... +100C, without package
Resistance to shocks: 100g, 11ms (EN6006822
Resistance to vibration: 30g, 10Hz... 2,000Hz (EN600682
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
ECLASS 5.0: 27270501
ECLASS 5.1.4: 27270501
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270501
ECLASS 8.0: 27270501
ECLASS 8.1: 27270501
ECLASS 9.0: 27270501
ECLASS 10.0: 27270501
ECLASS 11.0: 27270501
ECLASS 12.0: 27270501
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Inkremental-Encoder

Typ: 1071473

Beschreibung

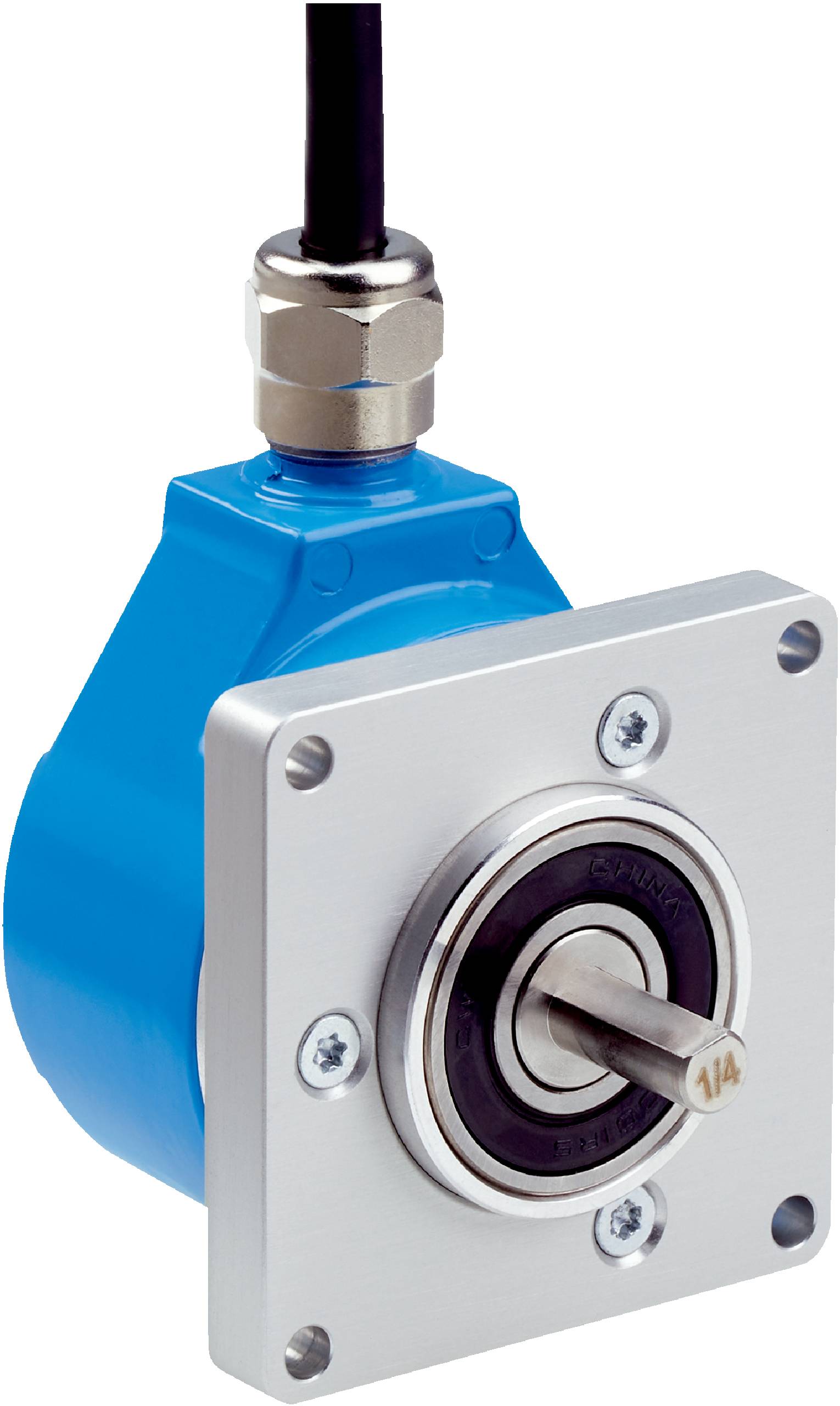

Sick Inkremental-Encoder DFS20A-A4PBO065536

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Inkremental-Encoder Typ:DFS20A-A4PBO065536Baugröße:2 mmStandard für Schnittstellen:sonstigeDurchmesser der Welle:10 mmProgrammierbar:jaWerkstoff des Gehäuses:AluminiumSchutzart (IP):IP65
Sick Inkremental-Encoder DFS20A-A4PBO065536: weitere Details
Inkremental-Encoder, DFS2x, DFS20A-A4PBO065536, Mechanische Ausführung: Vollwelle Quadratflansch 10 mm x 16 mm, Kommunikationsschnittstelle: 4,75 V ... 30 V, TTL, HTL, programmierbar, Anschlussart: Leitung, 9-adrig, radial, 10 m, Impulse pro Umdrehung: 65.536

Geliefert wird: Sick Inkremental-Encoder DFS20A-A4PBO065536, Verpackungseinheit: 1 Stk., EAN:
