Sick Inkremental-Encoder DUS60E-TJKFAAAB kaufen

Sick Inkremental-Encoder DUS60E-TJKFAAAB-0

Sick Inkremental-Encoder DUS60E-TJKFAAAB-1

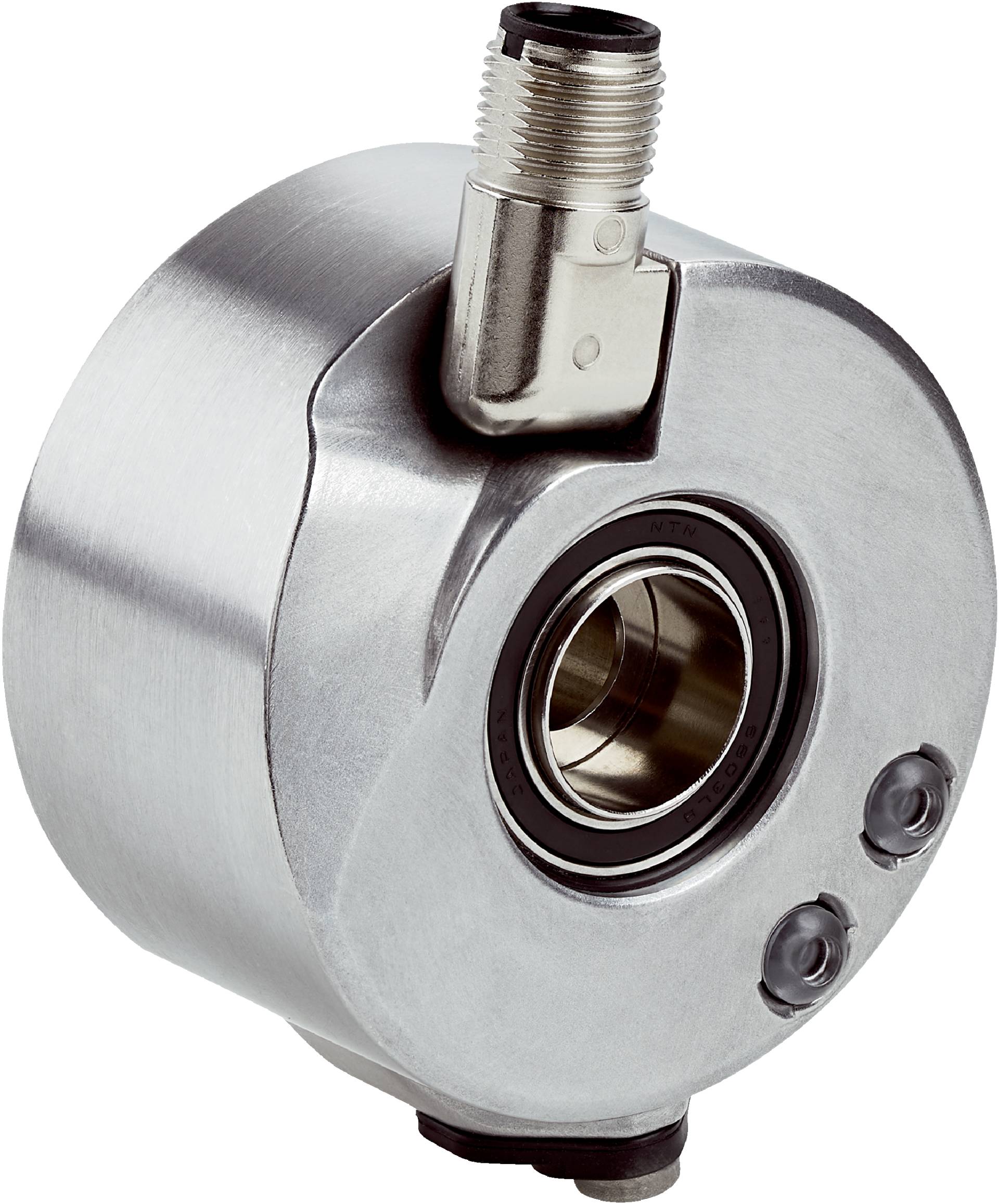

Sick Inkremental-Encoder DUS60E-TJKFAAAB-2

1/3

Produkt-Art

Inkremental-Encoder

Typ

1084688

Lieferung Do., 5. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 430,18

steuerfreie IGL

€ 7,92

Rechtliche Bedenken melden

Technische Daten

MTTF D (mean time to dangerous failure): 275years ENISO13849
Measuring step: 90, electric/pulses per revolution
Measuring step deviation: 18 / pulses per revolution
Error limits: Measuring step deviationx 3
Duty cycle: 0.5 5%
Communication interface: Incremental
Communication Interface detail: TTL/ HTL
Parameterising data: DIPswitch, selectable output
Output function: A and B output
Initialization time: 5ms
Output frequency: +60kHz
Load current: 30mA, per channel
Operating current: 120mA (without load)
Power consumption: 1.25W (without load)
DIPswitch parameters:
Pulses per revolution
Output voltage
Direction of rotation:
Configuration switches: 2400PPR values, direction selection, TTL/HTL selectable
DIPswitch parameters:
Pulses per revolution
Output voltage
Direction of rotation:
Configuration switches: 2400PPR values, direction selection, TTL/HTL selectable
Connection type: Male connector, M12, 4pin, universal
Supply voltage 4.75... 30V
Antidither:
Reference signal, number: 1
Reference signal, position: 180, electric, gated with A
Reverse polarity protection:
Shortcircuit protection of the outputs:
Mechanical design: Through hollow shaft
Shaft diameter: 5/8″
Flange type / stator coupling: Without stator coupling, flange with 4xM2,5
Weight: 0.25kg
Shaftmaterial: Stainless steel
Flange material: Aluminum
Housing material: Aluminum
Material, cable: PVC
Start up torque: 0.5Ncm ( +20C)
Operating torque: 0.4Ncm ( +20C)
Permissible movement static: 0.3mm (radial) 0.5mm (axial)
Permissible movement dynamic: 0.1mm (radial) 0.2mm (axial)
Operating speed: 1,500min
Moment of inertia of the rotor: 50gcm
Bearing lifetime: 3.6x 10 9 revolutions
Angular acceleration: 500,000rad/s
EMC: According to EN6100062 and EN6100063
Enclosure rating: IP65
Permissible relative humidity: 90% (Condensation not permitted)
Operating temperature range: 30C... +90C
Storage temperature range: 40C... +75C
Resistance to shocks: 100g (EN6006822
Resistance to vibration: 30g, 10Hz... 2,000Hz (EN600682
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
cULus Certificate
EAC certificate / DoC
ECLASS 5.0: 27270501
ECLASS 5.1.4: 27270501
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270501
ECLASS 8.0: 27270501
ECLASS 8.1: 27270501
ECLASS 9.0: 27270501
ECLASS 10.0: 27270501
ECLASS 11.0: 27270501
ECLASS 12.0: 27270501
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Inkremental-Encoder

Typ: 1084688

Beschreibung

Sick Inkremental-Encoder DUS60E-TJKFAAAB

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Inkremental-Encoder Typ:DUS60E-TJKFAAABSignalausgänge des Drehgebers:A+BStandard für Schnittstellen:sonstigeProgrammierbar:neinWerkstoff des Gehäuses:AluminiumSchutzart (IP):IP65
Sick Inkremental-Encoder DUS60E-TJKFAAAB: weitere Details
Inkremental-Encoder, DUS60, DUS60E-TJKFAAAB, Mechanische Ausführung: Durchsteckhohlwelle Klemmung vorne 5/8"
, Kommunikationsschnittstelle: 4,75 V ... 30 V, TTL, HTL, programmierbar, Anschlussart: Stecker, M12, 4-polig, universal, Ausgangsfunktion: Kanäle A und B, Flanschart / Drehmomentstütze: Ohne Drehmomentstütze, Flansch mit 4 x M2,5, Schaltfrequenzfilter: ja

Geliefert wird: Sick Inkremental-Encoder DUS60E-TJKFAAAB, Verpackungseinheit: 1 Stk., EAN:
