Sick Linear-Encoder DAXLVN-060#1137395 kaufen

Sick Linear-Encoder DAXLVN-060#1137395-0

Sick Linear-Encoder DAXLVN-060#1137395-1

Sick Linear-Encoder DAXLVN-060#1137395-2

1/3

Produkt-Art

Linear-Encoder

Typ

1137395

UKCA

nicht relevant

Lieferung Do., 19. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 797,48

steuerfreie IGL

€ 7,92

Rechtliche Bedenken melden

Technische Daten

MTTF D (mean time to dangerous failure): 123years
Linearity: 0.03% F.S. (Minimum 90m)
Repeatability: 20m
Measured values: Positioning
Measuring range: 0mm... 600mm
Unusable range:
Nullzone: 55mm
Damping zone: 63mm
Magnet type:
Magnet shape: Block magnet
Configured for number of magnets: 1piece
Magnet travel speed: Any
Measuring frequency (internal): 2ms
Unusable range:
Nullzone: 55mm
Damping zone: 63mm
Magnet type:
Magnet shape: Block magnet
Configured for number of magnets: 1piece
Communication interface: Analog
Communication Interface detail: Voltage
Output signal: 0V... 10V
Signals:
Number of signals: One output signal
Sequence of signals: Rising
Load resistance: >10k
Signals:
Number of signals: One output signal
Sequence of signals: Rising

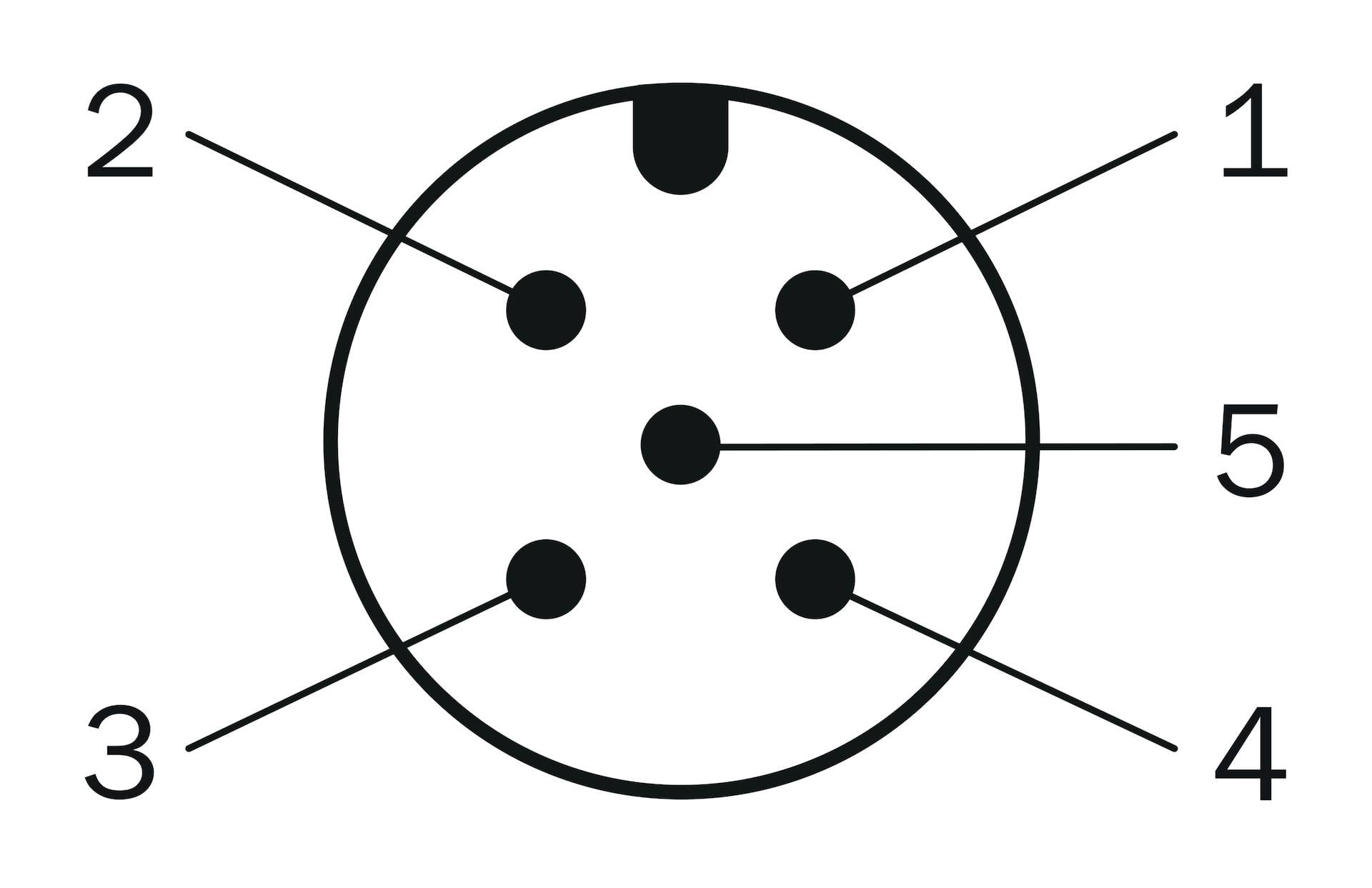

Connection type: Male connector, M12, 5pin
PIN assignment: 1= +24VDC; 2=Signal 1; 3=Power ground; 4=N.C.; 5=Output signal ground (0V)
Male connector coding: Acoded
Supply voltage 24VDC (20%)
Reverse polarity protection: Up to −30VDC
Residual ripple: 0.28V pp
Dielectric strength: 500VDC, 0V against housing
Over voltage protection: 36VDC
MTTFd: mean time to dangerous failure: 123years

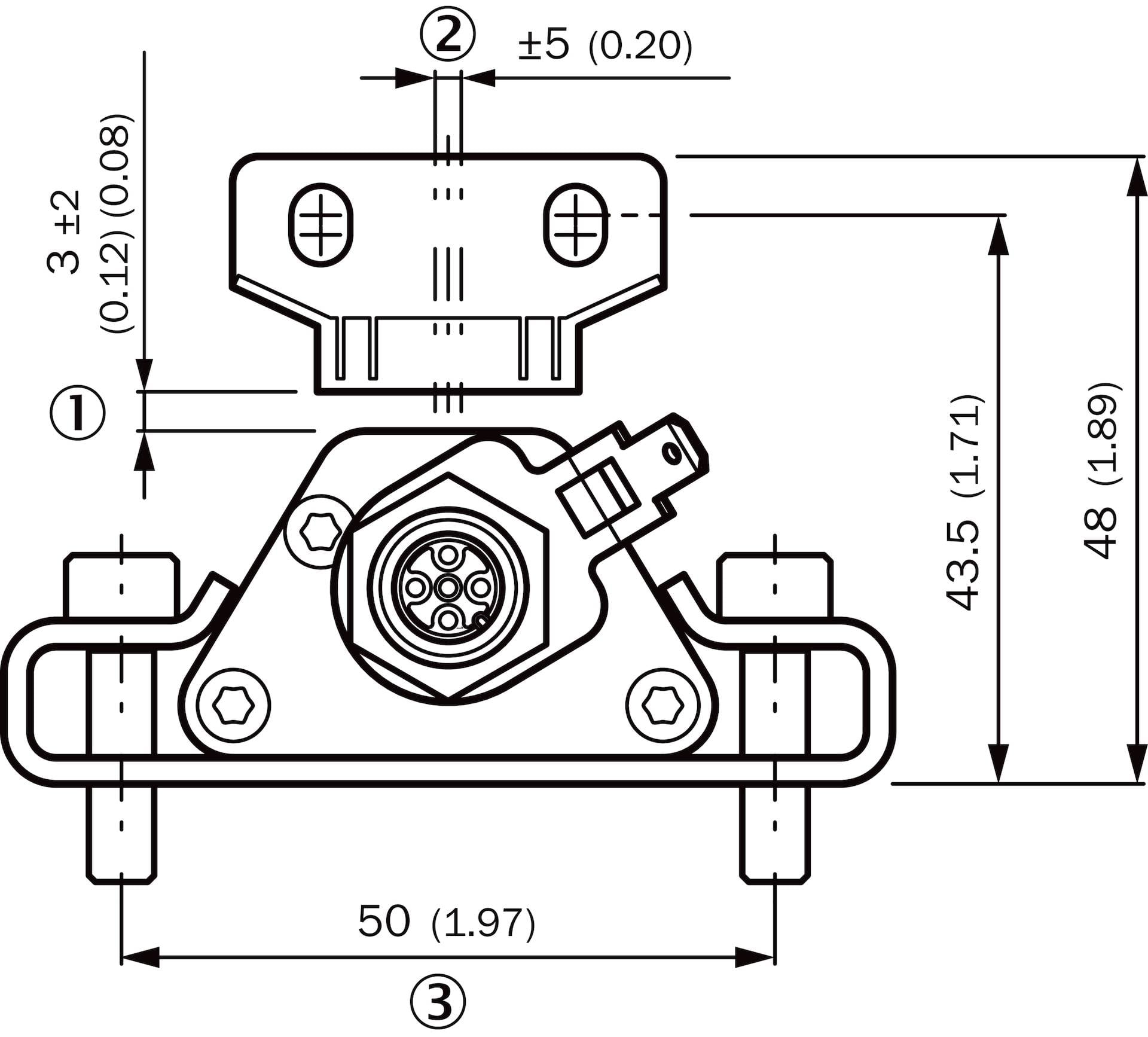

Mechanical design: DAX Low Profile
Material:
Housing: Aluminum (anodised), zinc, stainless steel, brass
Mounting bracket: Stainless steel 1.4301
Material:
Housing: Aluminum (anodised), zinc, stainless steel, brass
Mounting bracket: Stainless steel 1.4301
EMC: According to EN6100062 and EN6100064
Enclosure rating: IP65 / IP67
Temperature:
Operating temperature range: 40C... +85C
Storage temperature range: 40C... +85C
Permissible relative humidity: 90% (Condensation not permitted)
Resistance to shocks: 100g, 6ms (IEC6006822
Resistance to vibration: 8g/10…2,000Hz according to IEC6006826
EMC: According to EN6100062 and EN6100064
Temperature:
Operating temperature range: 40C... +85C
Storage temperature range: 40C... +85C
Items supplied:
: Mounting brackets and position magnet included. Mounting material for base not included.
Items supplied:
: Mounting brackets and position magnet included. Mounting material for base not included.
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
cULus Certificate
ECLASS 5.0: 27270705
ECLASS 5.1.4: 27270705
ECLASS 6.0: 27270705
ECLASS 6.2: 27270705
ECLASS 7.0: 27270705
ECLASS 8.0: 27270705
ECLASS 8.1: 27270705
ECLASS 9.0: 27270705
ECLASS 10.0: 27270705
ECLASS 11.0: 27270705
ECLASS 12.0: 27274304
ETIM 5.0: EC002544
ETIM 6.0: EC002544
ETIM 7.0: EC002544
ETIM 8.0: EC002544
UNSPSC 16.0901: 41111613

Produkt-Art: Linear-Encoder

Typ: 1137395

UKCA: nicht relevant

Beschreibung

Sick Linear-Encoder DAXLVN-060#1137395

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Linear-Encoder magnetostriktiverTyp:DAXLVN-060#1137395Ausführung der Schnittstelle für sicherheitsgerichtete Kommunikation:sonstige
Sick Linear-Encoder DAXLVN-060#1137395: weitere Details
Magnetostriktive Linear-Encoder, DAX, DAXLVN-0600BA080000000, Bauform: DAX Low Profile, Kommunikationsschnittstelle: Analog / Spannung, Spannungsausgang: 0 V ... 10 V, Anschlussart: Stecker, M12, 5-polig, Messbereich: 0 mm ... 600 mm, Versorgungsspannung: 24 V DC (±20%), Reihenfolge der Signale: Steigend, Nicht nutzbarer Bereich (Nullzone/Dämpfungszone): 55 mm / 63 mm, Magnettyp: Blockmagnet EAN: 4047084528439

Geliefert wird: Sick Linear-Encoder magnetostriktiver DAXLVN-060#1137395, Verpackungseinheit: 1 Stk., EAN: 4047084528439
