Sick Magneto. Linear EncoderDAX 1133570
Hst.-Teile-Nr.:
Bestell-Nr.:
Produkt-Art
Linear-Encoder
Typ
1133570
Technische Daten
- MTTF D (mean time to dangerous failure): 123years
- Linearity: 0.03% F.S. (Minimum 90m)
- Repeatability: 20m
- Measured values: Positioning
- Measuring range: 0mm... 1,000mm
- Unusable range:
- Nullzone: 55mm
- Damping zone: 63mm
- Magnet type:
- Magnet shape: Block magnet
- Configured for number of magnets: 1piece
- Magnet travel speed: Any
- Measuring frequency (internal): 2ms
- Unusable range:
- Nullzone: 55mm
- Damping zone: 63mm
- Magnet type:
- Magnet shape: Block magnet
- Configured for number of magnets: 1piece
- Communication interface: Analog
- Communication Interface detail: Current
- Output signal: 4mA... 20mA
- Signals:
- Number of signals: Two output signals (one output signal + an inverted second output signal)
- Sequence of signals: Signal 1: rising, signal 2: falling
- Load resistance: 100... 500
- Signals:
- Number of signals: Two output signals (one output signal + an inverted second output signal)
- Sequence of signals: Signal 1: rising, signal 2: falling
- Connection type: Male connector, M12, 8pin

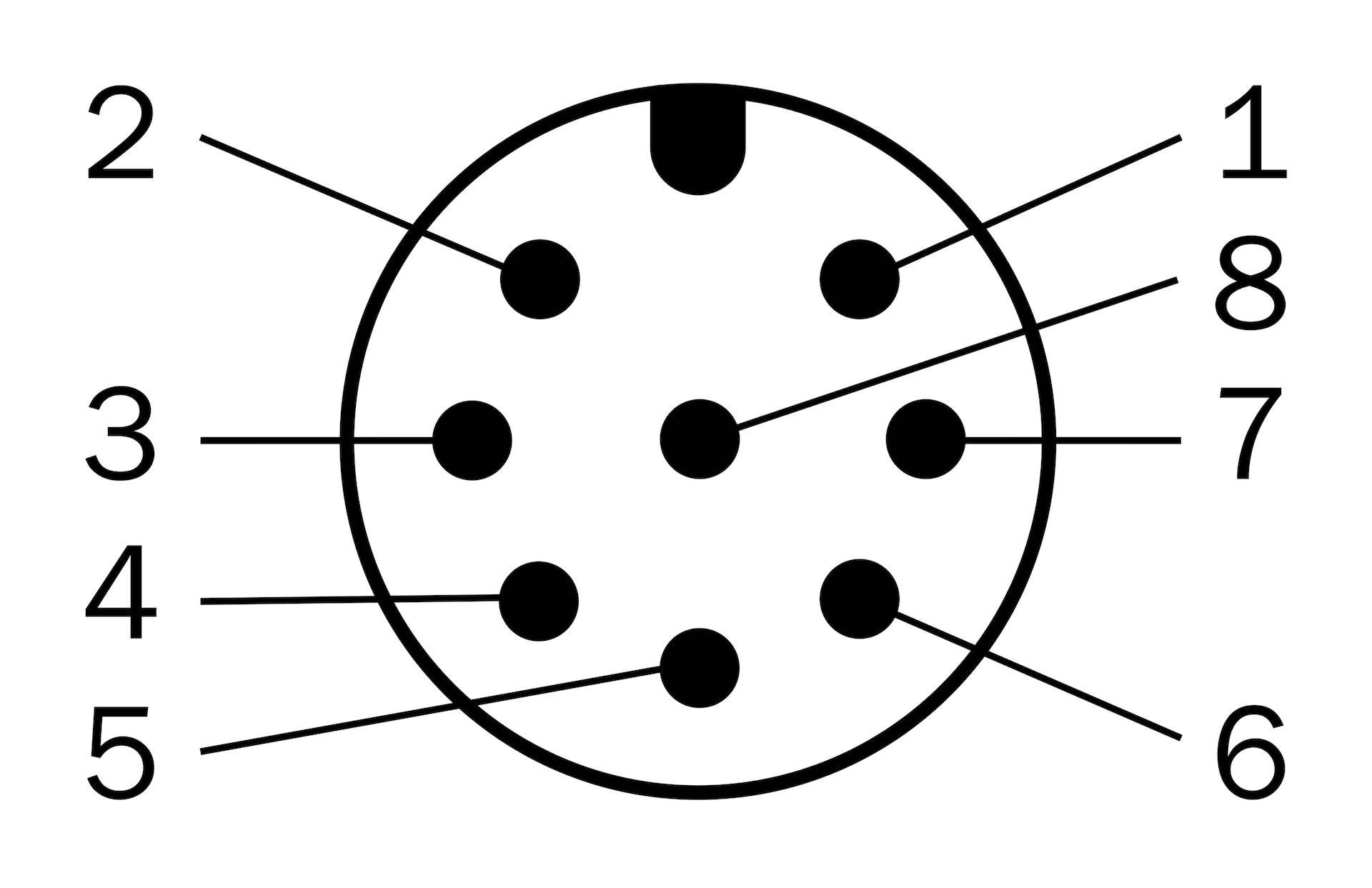

- PIN assignment: 1=Output signal ground (0V PIN ; 2=Output signal ground (0V PIN ; 3=Signal 2; 4=n.c.; 5=Signal 1; 6=Power ground; 7= +24VDC; 8=n.c.
- Male connector coding: Acoded
- Supply voltage 24VDC (20%)
- Current consumption: 50…100mA
- Reverse polarity protection: Up to −30VDC
- Residual ripple: 0.28V pp
- Dielectric strength: 500VDC, 0V against housing
- Over voltage protection: 36VDC
- MTTFd: mean time to dangerous failure: 123years

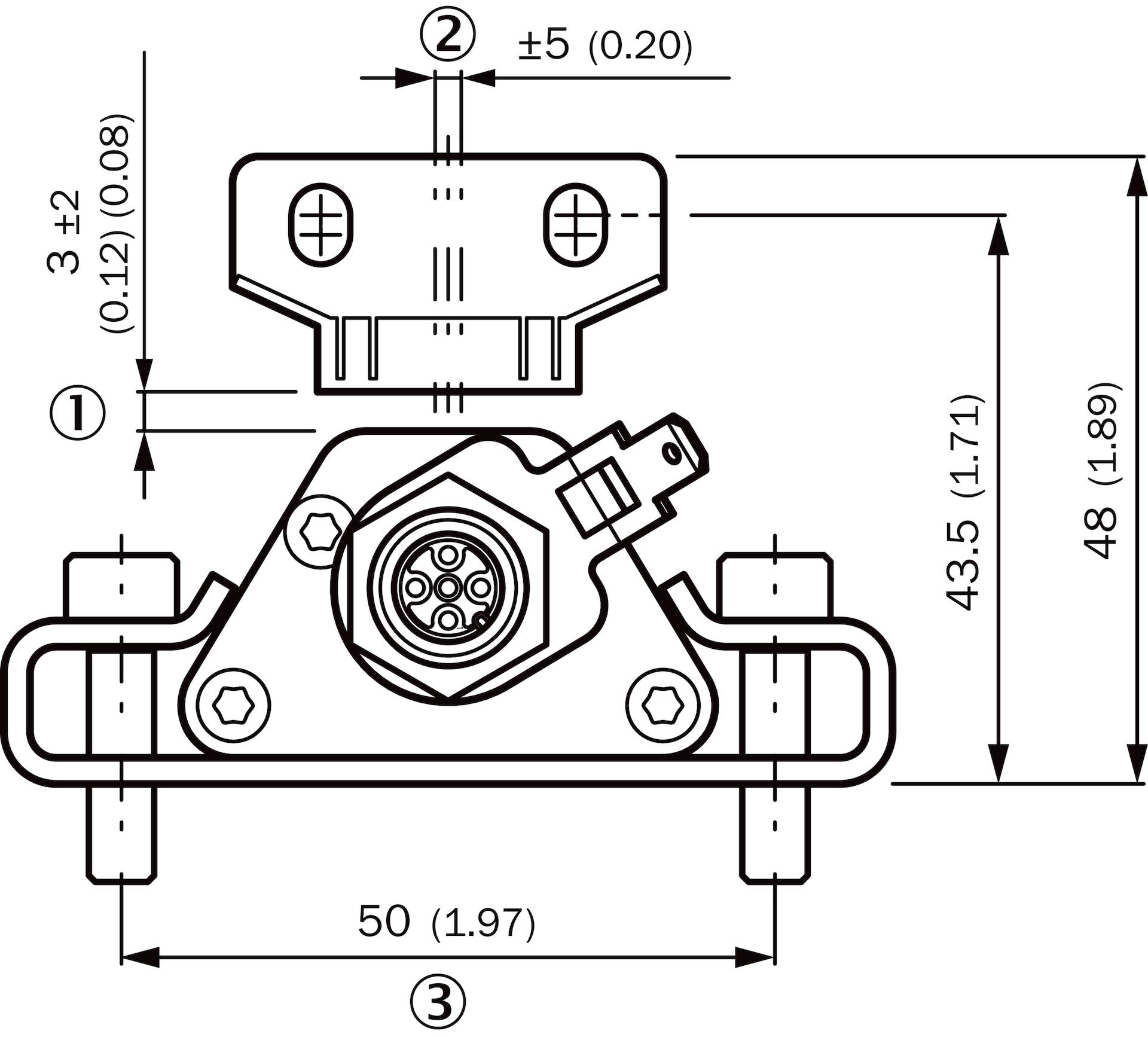

- Mechanical design: DAX Low Profile
- Material:
- Housing: Aluminum (anodised), zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- Material:
- Housing: Aluminum (anodised), zinc, stainless steel, brass
- Mounting bracket: Stainless steel 1.4301
- EMC: According to EN6100062 and EN6100064
- Enclosure rating: IP65 / IP67
- Temperature:
- Operating temperature range: 40C... +85C
- Storage temperature range: 40C... +85C
- Permissible relative humidity: 90% (Condensation not permitted)
- Resistance to shocks: 100g, 6ms (IEC6006822
- Resistance to vibration: 8g/10…2,000Hz according to IEC6006826
- EMC: According to EN6100062 and EN6100064
- Temperature:
- Operating temperature range: 40C... +85C
- Storage temperature range: 40C... +85C
- Items supplied:
- : Mounting brackets enclosed, mounting material for base not included.
- Position magnet not included.
- Items supplied:
- : Mounting brackets enclosed, mounting material for base not included.
- Position magnet not included.
- EU declaration of conformity
- UK declaration of conformity
- ACMA declaration of conformity
- ChinaRoHS
- cULus Certificate
- ECLASS 5.0: 27270705
- ECLASS 5.1.4: 27270705
- ECLASS 6.0: 27270705
- ECLASS 6.2: 27270705
- ECLASS 7.0: 27270705
- ECLASS 8.0: 27270705
- ECLASS 8.1: 27270705
- ECLASS 9.0: 27270705
- ECLASS 10.0: 27270705
- ECLASS 11.0: 27270705
- ECLASS 12.0: 27274304
- ETIM 5.0: EC002544
- ETIM 6.0: EC002544
- ETIM 7.0: EC002544
- ETIM 8.0: EC002544
- UNSPSC 16.0901: 41111613
- Produkt-Art
Linear-Encoder
- Typ
1133570
Beschreibung
Sick Magneto. Linear EncoderDAX 1133570
Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.
Hersteller:SickBezeichnung:Magneto. Linear EncoderDAX LAN-1000BA0C0000W01Typ:1133570Ausführung der Schnittstelle für sicherheitsgerichtete Kommunikation:sonstige
Sick Magneto. Linear EncoderDAX 1133570: weitere Details
Magnetostriktive Linear-Encoder, DAX®, DAXLAN-1000BA0C0000W01, Bauform: DAX® Low Profile, Kommunikationsschnittstelle: Analog / Strom, Stromausgang: 4 mA ... 20 mA, Anschlussart: Stecker, M12, 8-polig, Messbereich: 0 mm ... 1.000 mm, Versorgungsspannung: 24 V DC (±20%), Reihenfolge der Signale: Signal 1: steigend, Signal 2: fallend, Nicht nutzbarer Bereich (Nullzone/Dämpfungszone): 55 mm / 63 mm, Magnettyp: Blockmagnet
Geliefert wird: Sick Magneto. Linear EncoderDAX LAN-1000BA0C0000W01 1133570, Verpackungseinheit: 1 Stk., EAN:
Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.
Hersteller:SickBezeichnung:Magneto. Linear EncoderDAX LAN-1000BA0C0000W01Typ:1133570Ausführung der Schnittstelle für sicherheitsgerichtete Kommunikation:sonstige
Sick Magneto. Linear EncoderDAX 1133570: weitere Details
Magnetostriktive Linear-Encoder, DAX®, DAXLAN-1000BA0C0000W01, Bauform: DAX® Low Profile, Kommunikationsschnittstelle: Analog / Strom, Stromausgang: 4 mA ... 20 mA, Anschlussart: Stecker, M12, 8-polig, Messbereich: 0 mm ... 1.000 mm, Versorgungsspannung: 24 V DC (±20%), Reihenfolge der Signale: Signal 1: steigend, Signal 2: fallend, Nicht nutzbarer Bereich (Nullzone/Dämpfungszone): 55 mm / 63 mm, Magnettyp: Blockmagnet
Geliefert wird: Sick Magneto. Linear EncoderDAX LAN-1000BA0C0000W01 1133570, Verpackungseinheit: 1 Stk., EAN:
Lieferumfang
- Geliefert wird: Sick Magneto. Linear EncoderDAX LAN-1000BA0C0000W01 1133570, Verpackungseinheit: 1 Stk., EAN:
