Sick Messrad-Encoder DKV60E-21AKA0020 kaufen

1/3

Produkt-Art

Messrad-Encoder

Typ

1115129

Lieferung Do., 5. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 402,33

steuerfreie IGL

€ 7,92

Rechtliche Bedenken melden

Technische Daten

MTTF D (mean time to dangerous failure): 600years ENISO13849
Pulses per revolution20
Resolution in pulses/mm: 0.1
Measuring increment (resolution in mm/pulse): 10
Measuring step deviation: 18, / pulses per revolution
Error limits: 0.5mm/m, subject to the measuring wheel (wheel + surface)
Duty cycle: 0.5 5%
Initialization time: 3ms
Communication interface: Incremental
Communication Interface detail: TTL/ RS422
Number of signal channels: 6channel
Operating power consumption (no load): 50mA
Connection type: Cable, 8wire, universal, 1.5m
Supply voltage 4.5V... 5.5V
Load current max.: 30mA
Maximum output frequency: 300kHz
Reference signal, number: 1
Reference signal, position: 90, electric, logically gated with A and B
Reverse polarity protection:
Shortcircuit protection of the outputs:
Measuring wheel circumference: 200mm
Measuring wheel surface: Cross knurled aluminium
Spring arm design: 69.5mm spring arm
Mass: 420g
Encoder material:
Shaft: Stainless steel
Flange: Aluminum
Housing: Aluminum
Cable: PVC
Spring arm mechanism material:
Spring element: Spring steel, anticorrosive
Measuring wheel, spring arm: Spring steel, anticorrosive
Start up torque: 0.9Ncm (at 20C)
Operating torque: 0.6Ncm (at 20C)
Operating speed: 1,000min
Maximum operating speed: 1,500min
Bearing lifetime: 2x 10^9revolutions
Maximum travel/deflection of spring arm: 8mm at 14N spring travel
Recommended pretension: 8N at 4mm deflection
Max. permissible working area for the spring (continuous operation): 1.5mm
Recommended spring deflection: 2mm... 8mm
Mounted encoder: DBS50 Core, DBS50ESKAKA0020
Encoder material:
Shaft: Stainless steel
Flange: Aluminum
Housing: Aluminum
Cable: PVC
Spring arm mechanism material:
Spring element: Spring steel, anticorrosive
Measuring wheel, spring arm: Spring steel, anticorrosive
EMC: According to EN6100062and EN6100063(class A)
Enclosure rating: IP65
Permissible relative humidity: 90% (Condensation not permitted)
Operating temperature range: 20C... +80C 35C... +95C (on request)
Storage temperature range: 40C... +100C, without package
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
ECLASS 5.0: 27270501
ECLASS 5.1.4: 27270501
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270501
ECLASS 8.0: 27270501
ECLASS 8.1: 27270501
ECLASS 9.0: 27270501
ECLASS 10.0: 27270790
ECLASS 11.0: 27270707
ECLASS 12.0: 27270504
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Messrad-Encoder

Typ: 1115129

Beschreibung

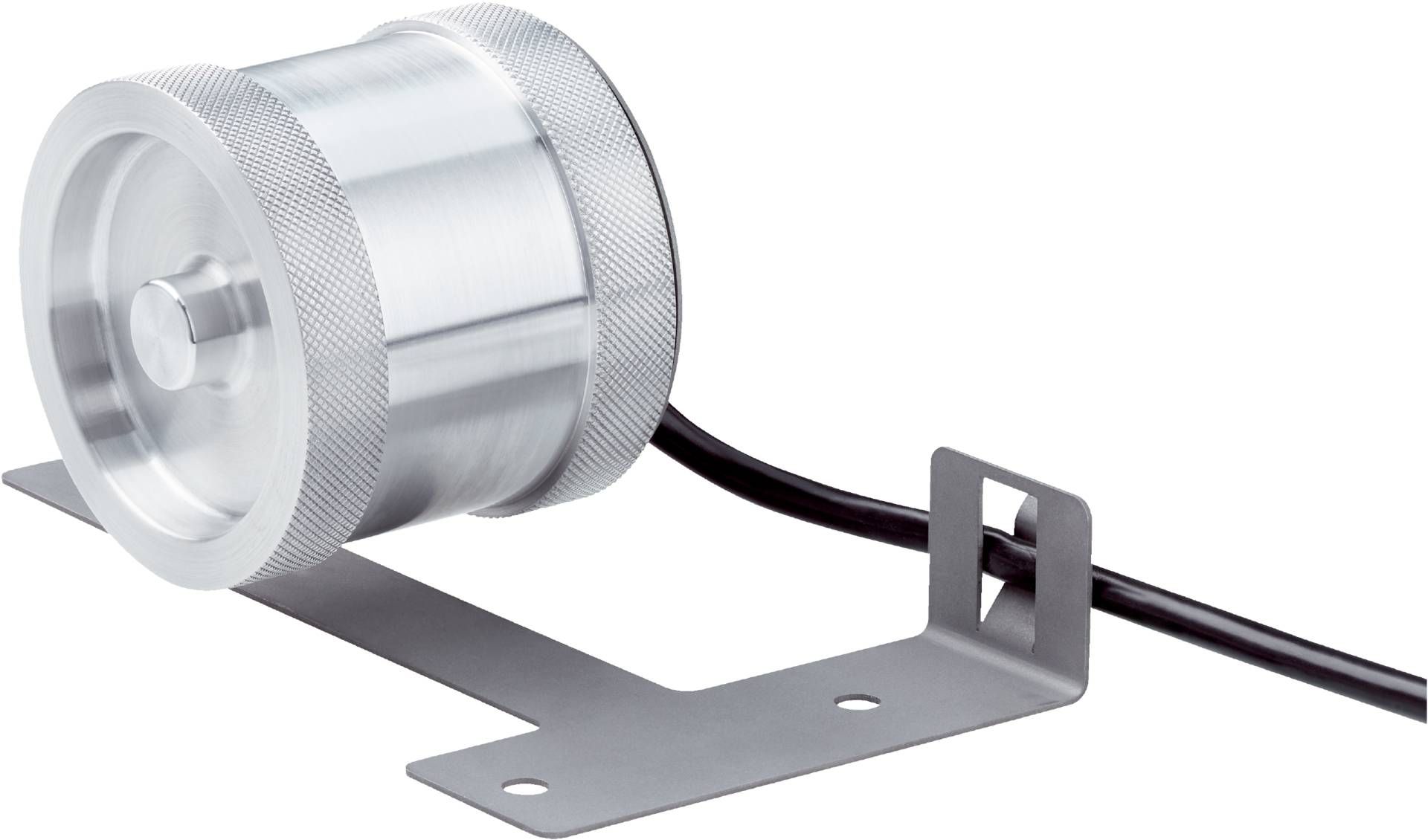

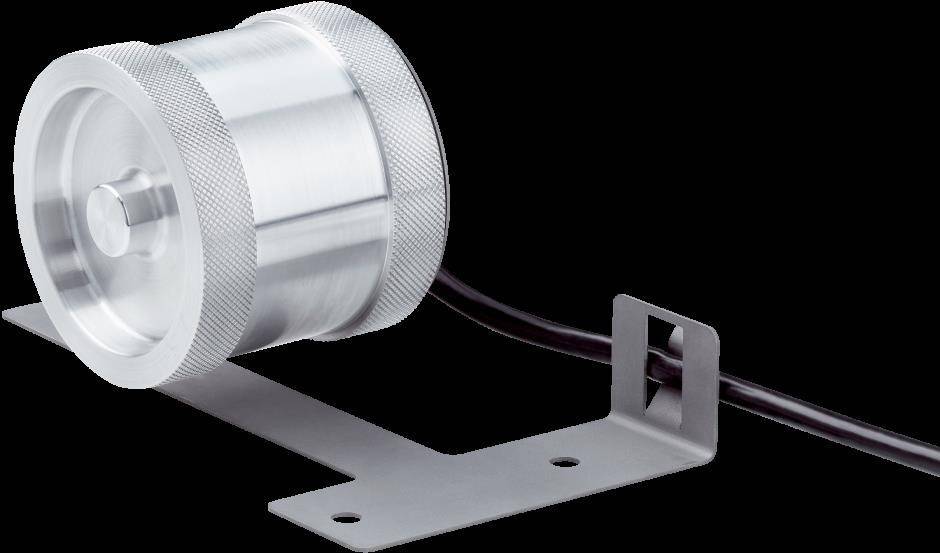

Sick Messrad-Encoder DKV60E-21AKA0020

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Messrad-Encoder Typ:DKV60E-21AKA0020Standard für Schnittstellen:sonstigeImpulszahl pro Umdrehung:20Programmierbar:neinWerkstoff des Gehäuses:AluminiumSchutzart (IP):IP65
Sick Messrad-Encoder DKV60E-21AKA0020: weitere Details
Messrad-Encoder, DKV60, DKV60E-21AKA0020, Messradumfang: 200 mm, Messradoberfläche: Aluminium-Kreuzrändel, Kommunikationsschnittstelle: 4,5 V ... 5,5 V, Inkremental, TTL, RS-422, Versorgungsspannung: 4,5 V ... 5,5 V, Angebauter Encoder: DBS50 Core, DBS50E-SKAKA0020, Anschlussart: Leitung, 8-adrig, universal, 1,5 m, Auflösung Impulse/mm: 0,1, Ausführung Federarm: 69,5 mm Federarm

Geliefert wird: Sick Messrad-Encoder DKV60E-21AKA0020, Verpackungseinheit: 1 Stk., EAN:
