Sick Messrad-Encoder DKV60E-21EZA0S03 kaufen

1/3

Produkt-Art

Messrad-Encoder

Typ

1122723

UKCA

nicht relevant

Lieferung Do., 19. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 653,04

steuerfreie IGL

€ 7,91

Rechtliche Bedenken melden

Technische Daten

Special device:
Specialty: Cable with male connector, M12, 4pin, 1.5m
Standard reference device: DKV60E21EKA0004, 1119163
Pulses per revolution4
Resolution in pulses/mm: 0.02
Measuring increment (resolution in mm/pulse): 50
Measuring step deviation: 18, / pulses per revolution
Error limits: 0.5mm/m, subject to the measuring wheel (wheel + surface)
Duty cycle: 0.5 5%
Initialization time: 3ms
Communication interface: Incremental
Communication Interface detail: HTL/ Push pull
Number of signal channels: 6channel
Operating power consumption (no load): 50mA

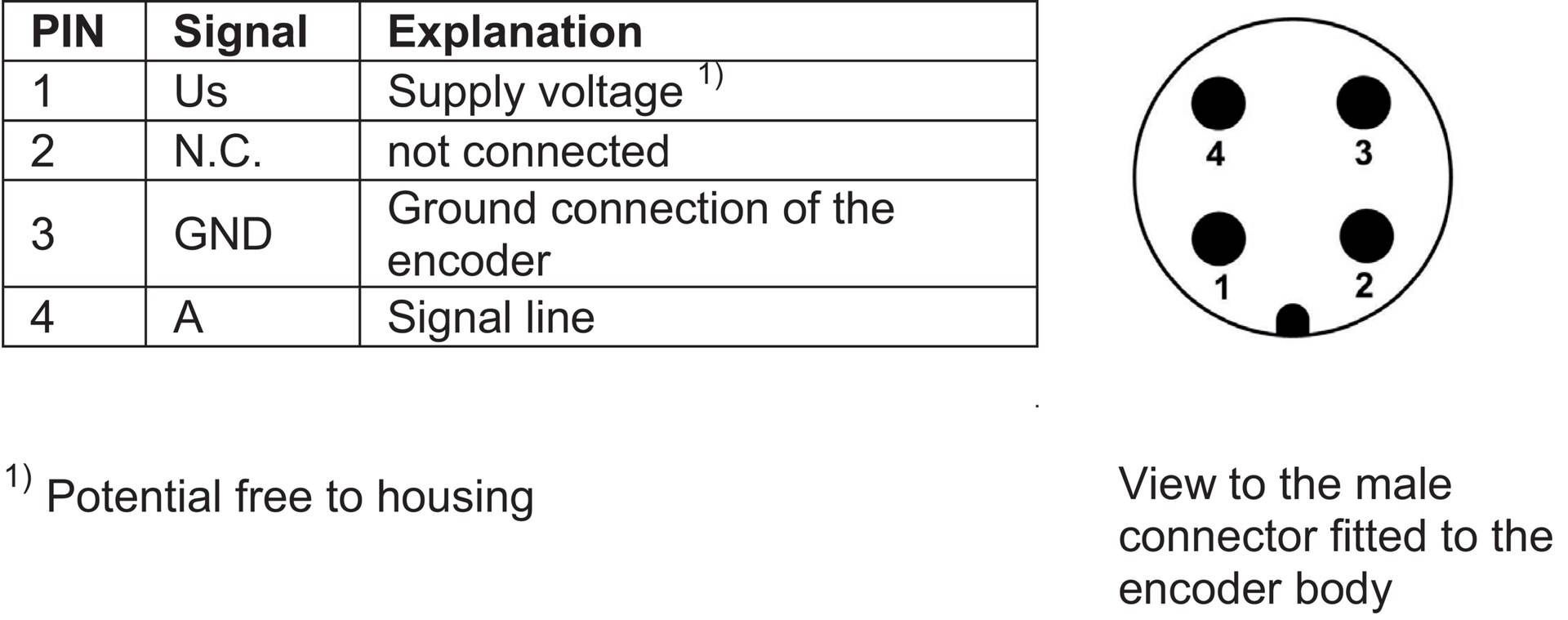

Connection type: Cable, with male connector, M12, 4pin, 1.5m
Supply voltage 10V... 30V
Load current max.: 30mA
Maximum output frequency: 300kHz
Reference signal, number: 1
Reference signal, position: 90, electric, logically gated with A and B
Reverse polarity protection:
Measuring wheel circumference: 200mm
Measuring wheel surface: Cross knurled aluminium

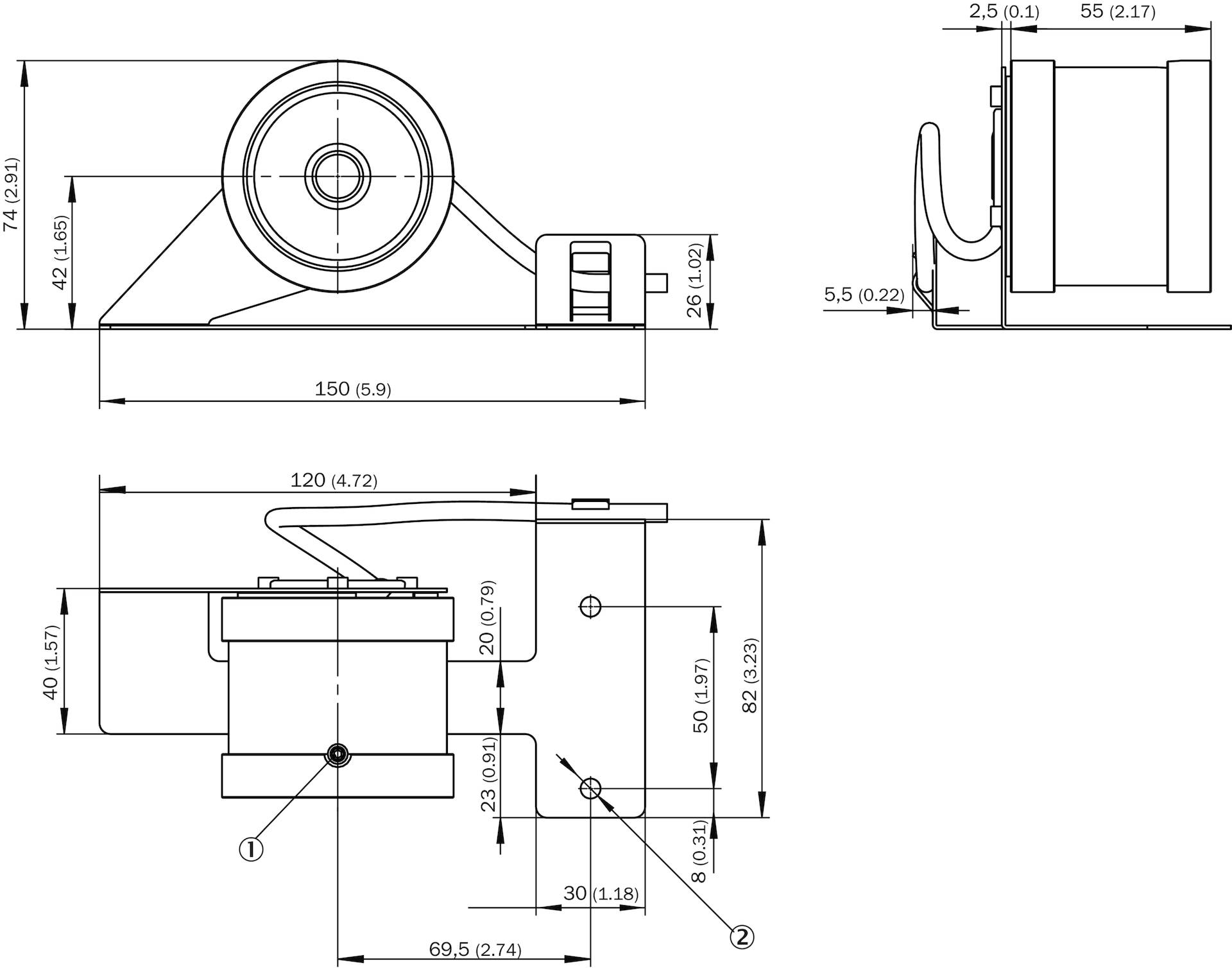

Spring arm design: 69.5mm spring arm
Mass: 420g
Encoder material:
Shaft: Stainless steel
Flange: Aluminum
Housing: Aluminum
Cable: PVC
Spring arm mechanism material:
Spring element: Spring steel, anticorrosive
Measuring wheel, spring arm: Spring steel, anticorrosive
Start up torque: 0.9Ncm (at 20C)
Operating torque: 0.4Ncm (at 20C)
Operating speed: 1,000min
Maximum operating speed: 1,500min
Bearing lifetime: 2x 10^9revolutions
Maximum travel/deflection of spring arm: 8mm at 14N spring travel
Recommended pretension: 8N at 4mm deflection
Max. permissible working area for the spring (continuous operation): 1.5mm
Recommended spring deflection: 2mm... 8mm
Mounted encoder: DBS50 Core, DBS50ESKEKA0004
Encoder material:
Shaft: Stainless steel
Flange: Aluminum
Housing: Aluminum
Cable: PVC
Spring arm mechanism material:
Spring element: Spring steel, anticorrosive
Measuring wheel, spring arm: Spring steel, anticorrosive
EMC: According to EN6100062and EN6100063(class A)
Enclosure rating: IP65
Operating temperature range: 20C... +60C 35C... +95C (on request)
Storage temperature range: 40C... +100C, without package
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
ECLASS 5.0: 27270501
ECLASS 5.1.4: 27270501
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270501
ECLASS 8.0: 27270501
ECLASS 8.1: 27270501
ECLASS 9.0: 27270501
ECLASS 10.0: 27270790
ECLASS 11.0: 27270707
ECLASS 12.0: 27270504
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Messrad-Encoder

Typ: 1122723

UKCA: nicht relevant

Beschreibung

Sick Messrad-Encoder DKV60E-21EZA0S03

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Messrad-Encoder Typ:DKV60E-21EZA0S03Standard für Schnittstellen:sonstigeImpulszahl pro Umdrehung:4Programmierbar:neinWerkstoff des Gehäuses:AluminiumSchutzart (IP):IP65
Sick Messrad-Encoder DKV60E-21EZA0S03: weitere Details
Messrad-Encoder, DKV60, DKV60E-21EZA0S03, Messradumfang: 200 mm, Messradoberfläche: Aluminium-Kreuzrändel, Kommunikationsschnittstelle: 10 V ... 30 V, Inkremental, HTL, Push pull, Versorgungsspannung: 10 V ... 30 V, Angebauter Encoder: DBS50 Core, DBS50E-SKEKA0004, Anschlussart: Leitung, mit Stecker, M12, 4-polig, 1,5 m, Auflösung Impulse/mm: 0,02, Ausführung Federarm: 69,5 mm Federarm, Besonderheit: Leitung, mit Stecker, M12, 4-polig, 1,5 m EAN: 4047084504785

Geliefert wird: Sick Messrad-Encoder DKV60E-21EZA0S03, Verpackungseinheit: 1 Stk., EAN: 4047084504785
