Sick Messrad-Encoder DUV60E-D4KFKDEB kaufen

1/3

Produkt-Art

Messrad-Encoder

Typ

1129127

Lieferung Do., 5. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 608,15

steuerfreie IGL

€ 7,91

Rechtliche Bedenken melden

Technische Daten

MTTF D (mean time to dangerous failure): 275years ENISO13849
Pulses per revolution1... 240
Resolution in pulses/mm: 0.125mm/pulse to 304.8mm/pulse (typedependent)
Measuring step: 90 electric/pulses per revolution
Measuring step deviation: 18, / pulses per revolution
Error limits: Measuring step deviationx 3
Duty cycle: 0.5 5%
Initialization time: 5ms
Communication interface: Incremental
Communication Interface detail: TTL/ HTL
Parameterising data: DIPswitch, selectable output
Operating power consumption (no load): 120mA

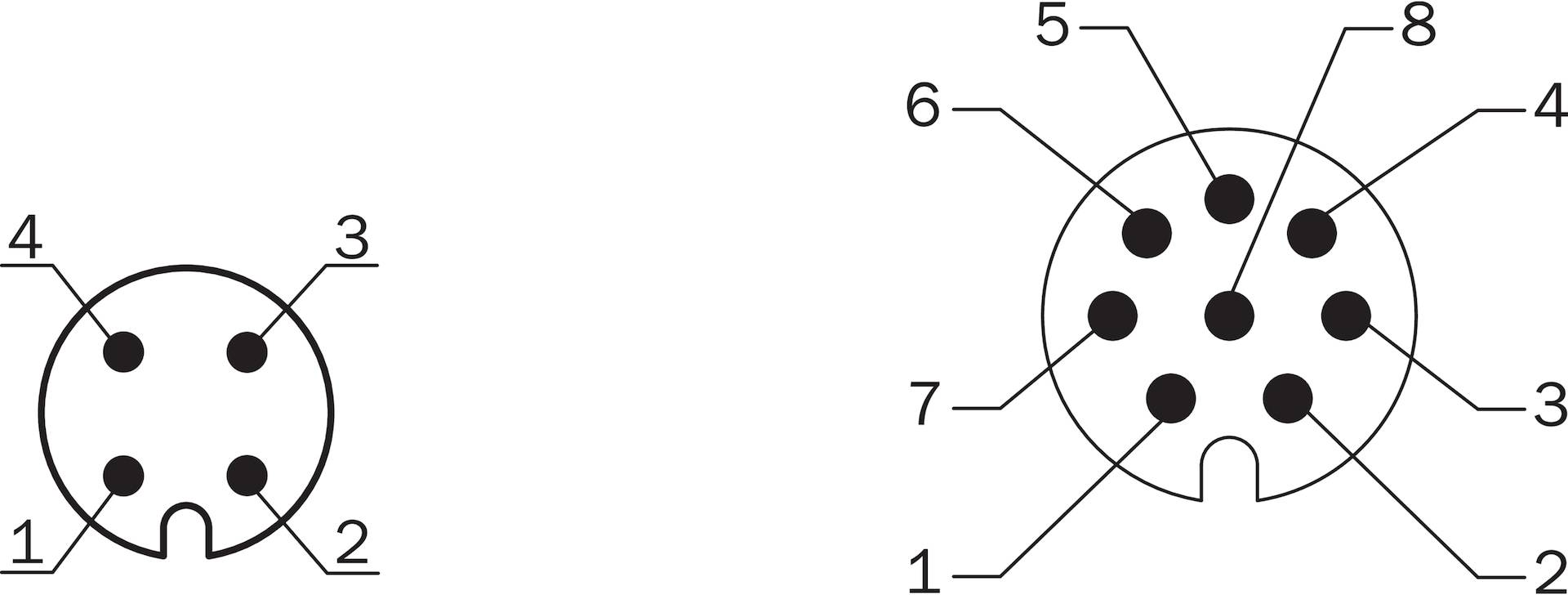

Connection type: Male connector, M12, 4pin, universal
Pulses per revolution
Output voltage
Direction of rotation:
Power consumption max. without load: 1.25W
Supply voltage 4.75V... 30V
Load current max.: 30mA, per channel
Maximum output frequency: 60kHz
Reference signal, number: 1
Reference signal, position: 180, electric, gated with A
Reverse polarity protection:
Shortcircuit protection of the outputs:
Measuring wheel circumference: 12″
Measuring wheel surface: Smooth plastic (urethane)
Spring arm design: Overbelt yoke mount
Mass: 0.9kg
Encoder material:
Shaft: Stainless steel
Flange: Aluminum
Housing: Aluminum
Cable: PVC
Spring arm mechanism material:
Spring element: Spring steel
Measuring wheel, spring arm: Aluminum
Yoke: Aluminum
Counterweight: Aluminum
Start up torque: 0.5Ncm
Operating torque: 0.4Ncm
Operating speed: 1,500min
Bearing lifetime: 3.6x 10 9 revolutions

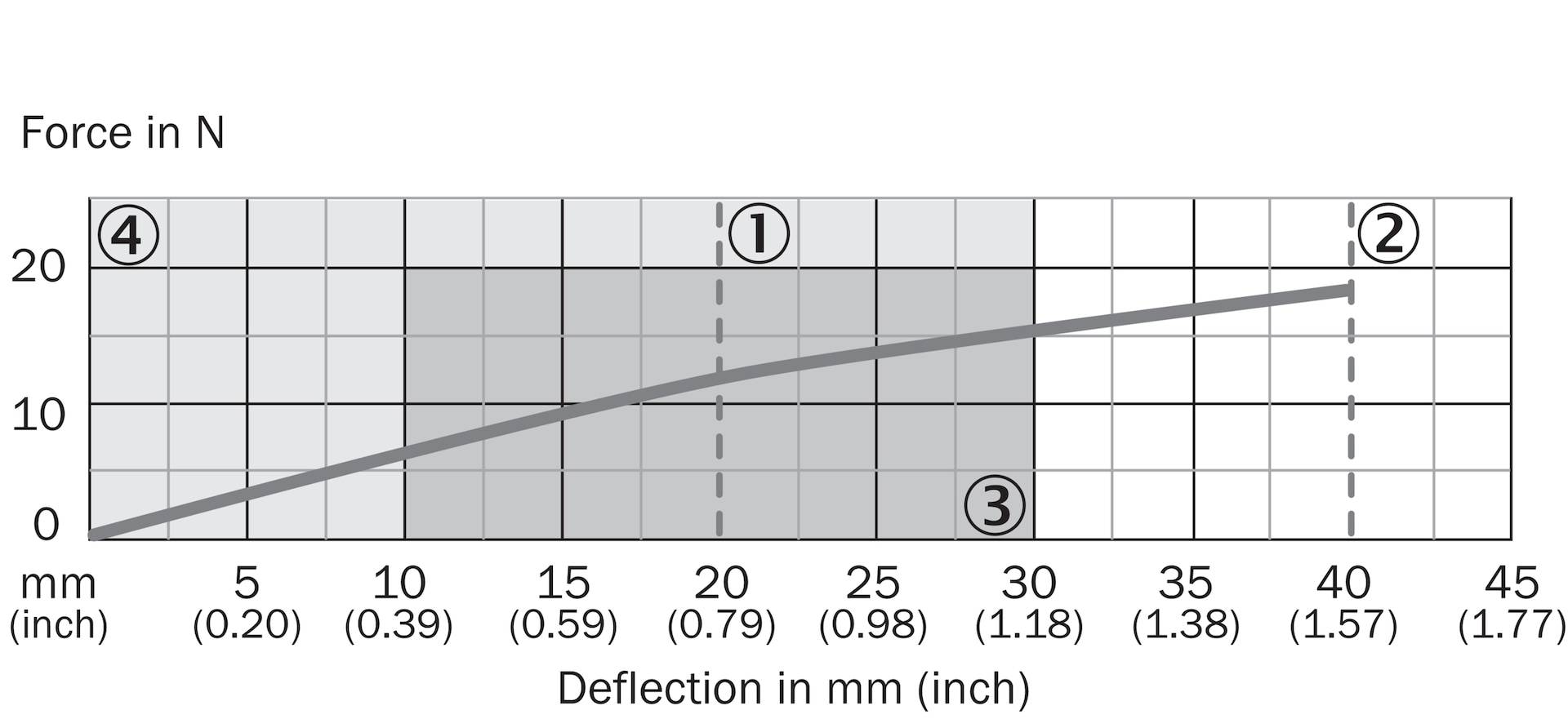

Maximum travel/deflection of spring arm: 40mm
Recommended pretension: 20mm
Max. permissible working area for the spring (continuous operation): 10mm
Encoder material:
Shaft: Stainless steel
Flange: Aluminum
Housing: Aluminum
Cable: PVC
Spring arm mechanism material:
Spring element: Spring steel
Measuring wheel, spring arm: Aluminum
Yoke: Aluminum
Counterweight: Aluminum
EMC: According to EN6100062 and EN6100063
Enclosure rating: IP65
Permissible relative humidity: 90% (Condensation not permitted)
Operating temperature range: 30C... +70C
Storage temperature range: 40C... +75C
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
cULus Certificate
EAC certificate / DoC
ECLASS 5.0: 27270501
ECLASS 5.1.4: 27270501
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270501
ECLASS 8.0: 27270501
ECLASS 8.1: 27270501
ECLASS 9.0: 27270501
ECLASS 10.0: 27270790
ECLASS 11.0: 27270707
ECLASS 12.0: 27270504
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Messrad-Encoder

Typ: 1129127

Beschreibung

Sick Messrad-Encoder DUV60E-D4KFKDEB

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Messrad-Encoder Typ:DUV60E-D4KFKDEBSignalausgänge des Drehgebers:sonstigeStandard für Schnittstellen:sonstigeProgrammierbar:neinWerkstoff des Gehäuses:AluminiumSchutzart (IP):IP65
Sick Messrad-Encoder DUV60E-D4KFKDEB: weitere Details
Messrad-Encoder, DUV60, DUV60E-D4KFKDEB, Messradumfang: 12 "
, Messradoberfläche: Glatter Kunststoff (Urethan), Kommunikationsschnittstelle: 4,75 V ... 30 V, Inkremental, TTL, HTL, Versorgungsspannung: 4,75 V ... 30 V, Bereich der Impulse pro Umdrehung: 1 ... 240, Ausgangsfunktion: Kanal A, Fehler, Anschlussart: Stecker, M12, 4-polig, universal, Ausführung Federarm: Montage von oben mit Montagegabel, Schaltfrequenzfilter: ja

Geliefert wird: Sick Messrad-Encoder DUV60E-D4KFKDEB, Verpackungseinheit: 1 Stk., EAN:
