Sick Motor-Feedback-System EDS35-0ZF0A024A kaufen

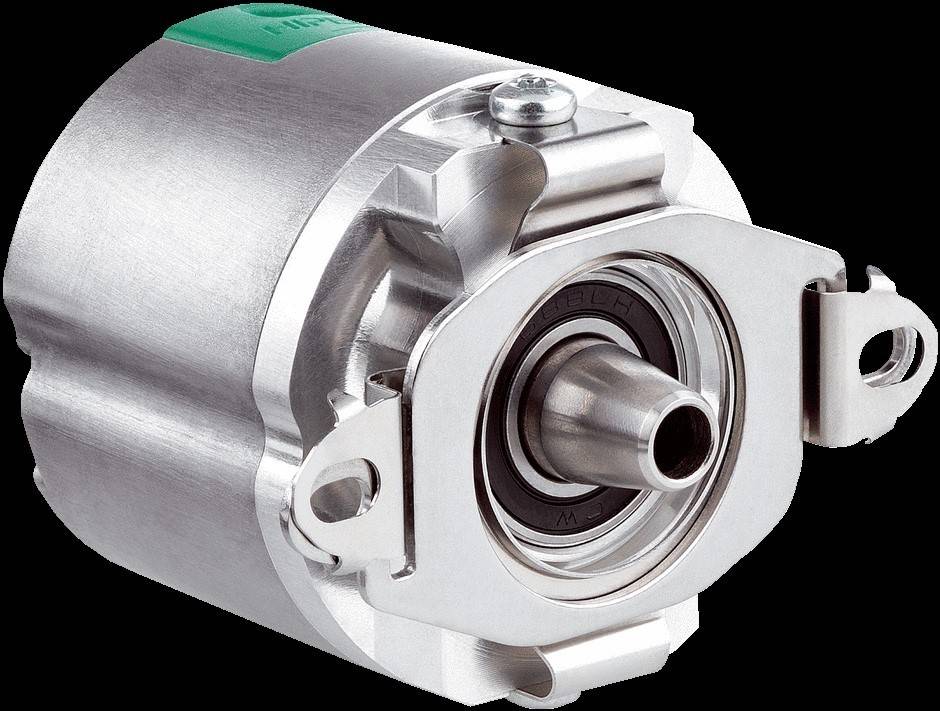

Sick Motor-Feedback-System EDS35-0ZF0A024A-0

Sick Motor-Feedback-System EDS35-0ZF0A024A-1

Sick Motor-Feedback-System EDS35-0ZF0A024A-2

1/3

Produkt-Art

Inkremental-Encoder

Typ

1137493

Lieferung Do., 5. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 979,73

steuerfreie IGL

€ 7,92

Rechtliche Bedenken melden

Technische Daten

Items supplied: M3 mounting screws for stator coupling not included with delivery.
MTTF D (mean time to dangerous failure): 145years ENISO1384
Position:
Resolution per revolution24bit
System accuracy: 25″
Signal noise (σ): 1″
Number of the absolute ascertainable revolutions: 1
Available memory area: 8,192Byte
Measurement principle: Optical
Vibration:
Measuring range: 50g
Number of axis: 2
Bandwidth: Max.7kHz
Measuring step: 10mg / digit
Vibration analysis: Attributes Kurtosis, aRMS, Peak to peak
Air humidity:
Measuring range: 0100% relative humidity (% RH)
Accuracy: Typ. 2% RH
Temperature: 40C... +125C, 0.6C, typ.
Measuring step: 0,1% RH / digit; 0,01C / digit
Position:
Resolution per revolution24bit
System accuracy: 25″
Signal noise (σ): 1″
Number of the absolute ascertainable revolutions: 1
Available memory area: 8,192Byte
Measurement principle: Optical
Vibration:
Measuring range: 50g
Number of axis: 2
Bandwidth: Max.7kHz
Measuring step: 10mg / digit
Vibration analysis: Attributes Kurtosis, aRMS, Peak to peak
Air humidity:
Measuring range: 0100% relative humidity (% RH)
Accuracy: Typ. 2% RH
Temperature: 40C... +125C, 0.6C, typ.
Measuring step: 0,1% RH / digit; 0,01C / digit
Code sequence: Increasing, when turning the shaft For clockwise rotation, looking in direction A (see dimensional drawing)
Communication interface: HIPERFACE DSL ®
Initialization time: 500ms
Measurement external temperature resistance: 32bit value, without prefix ( 0... 209.600

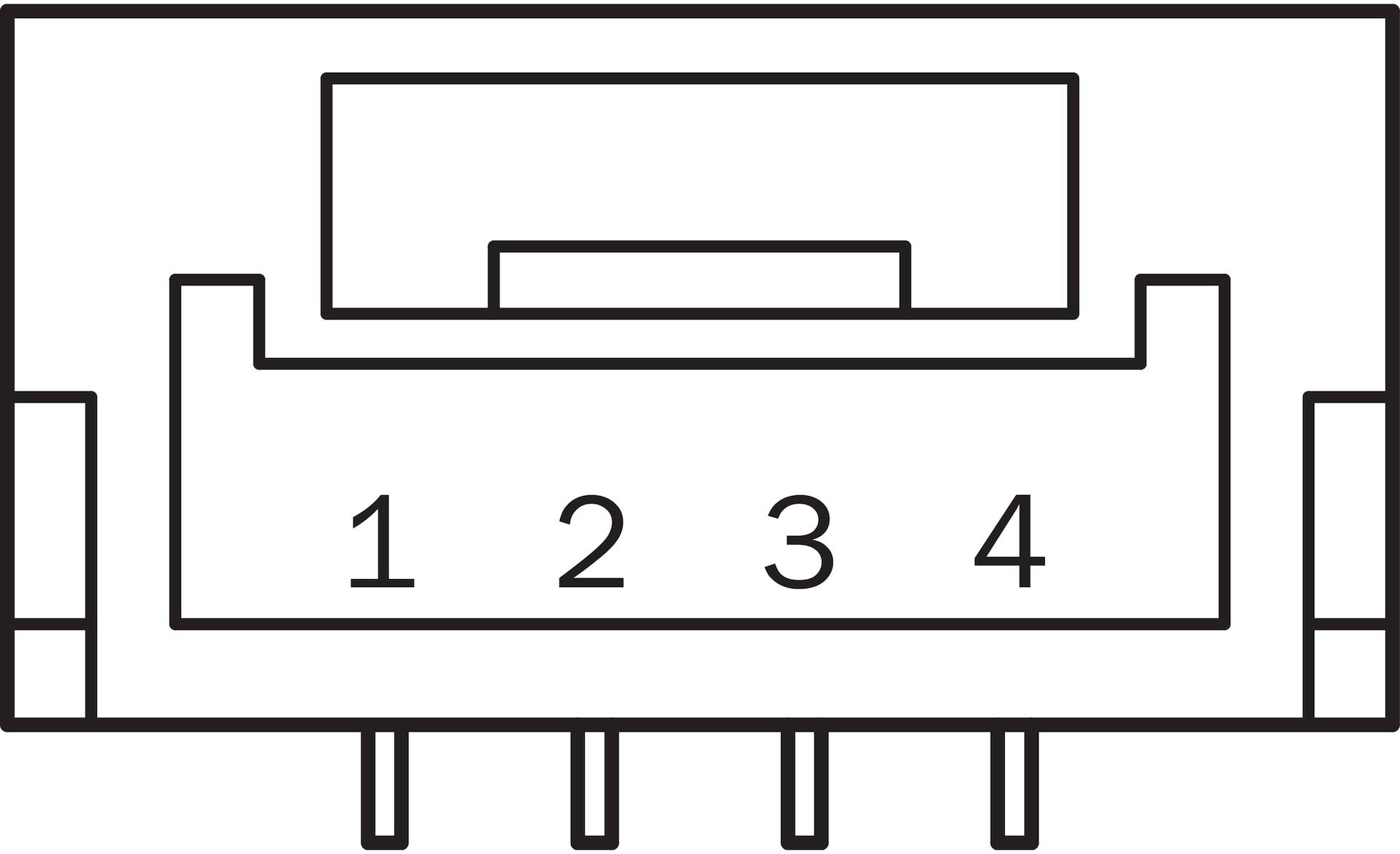

Connection type: Male connector, 4pin
Supply voltage 7V... 12V
Warmup time voltage ramp: Max. 180ms
Current consumption: 150mA
Shaft version: Tapered shaft
Flange type / stator coupling: Stator coupling

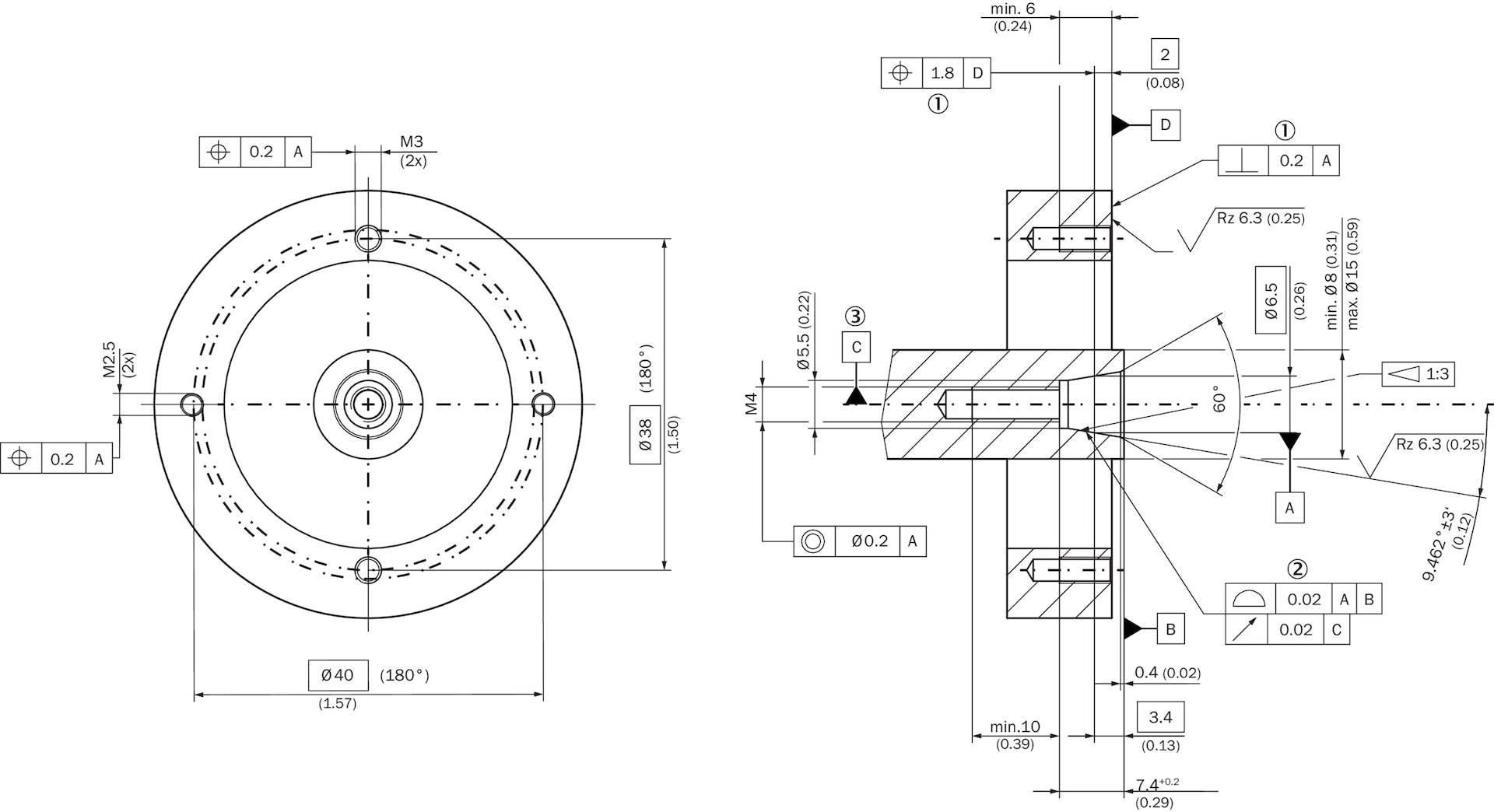

Dimensions: See dimensional drawing
Weight: 100g
Moment of inertia of the rotor: 5gcm
Operating speed: 12,000min
Angular acceleration: 250,000rad/s
Start up torque: 0.6Ncm, +20C
Permissible movement static: 1mm axial
Permissible movement dynamic: 0.1mm radial
Life of ball bearings: 50,000h at 6,000min 1 (at a flange temperature of 70C)
Operating temperature range: 40C... +110C
Storage temperature range: 40C... +125C, without package
Relative humidity/condensation: 90%, Condensation not permitted
Resistance to shocks: 100g, 6ms (according to EN6006822
Frequency range of resistance to vibrations: 50g, 10Hz... 2,000Hz (EN600682
EMC: According to EN6100062, EN6100064 and IEC613263
Enclosure rating: IP20, When cover is closed and mating connector is attached (IEC60529
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
ECLASS 5.0: 27270590
ECLASS 5.1.4: 27270590
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270590
ECLASS 8.0: 27270590
ECLASS 8.1: 27270590
ECLASS 9.0: 27270590
ECLASS 10.0: 27273805
ECLASS 11.0: 27273901
ECLASS 12.0: 27273901
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Inkremental-Encoder

Typ: 1137493

Beschreibung

Sick Motor-Feedback-System EDS35-0ZF0A024A

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Motor-Feedback-System rotativTyp:EDS35-0ZF0A024AStandard für Schnittstellen:sonstigeSchutzart (IP):IP40
Sick Motor-Feedback-System EDS35-0ZF0A024A: weitere Details
Motor-Feedback-Systeme rotativ HIPERFACE DSL®, EDS/EDM35, EDS35-0ZF0A024A, Kommunikationsschnittstelle: HIPERFACE DSL®, Ausführung: Absolut-Singleturn, Bauart: Einbau, Auflösung pro Umdrehung: 24 bit, Sicherheitsgerichtetes System: nein, Mechanische Ausführung: Konuswelle, Anschlussart: Stecker, 4-polig, Messbereich: ± 50 g, Betriebstemperaturbereich: 40 °C ... +115 °C, Vibrationsanalyse: Kennwerte Kurtosis, a-RMS, Peak to peak, Messbereich: 0 100 % relative Luftfeuchtigkeit (% RH)

Geliefert wird: Sick Motor-Feedback-System rotativ EDS35-0ZF0A024A, Verpackungseinheit: 1 Stk., EAN:
