Sick Motor-Feedback-System EKS36-2KF0B0S14 kaufen

Sick Motor-Feedback-System EKS36-2KF0B0S14-0

Sick Motor-Feedback-System EKS36-2KF0B0S14-1

Sick Motor-Feedback-System EKS36-2KF0B0S14-2

1/3

Produkt-Art

Inkremental-Encoder

Typ

1103061

Lieferung Do., 19. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 709,00

steuerfreie IGL

€ 7,91

Rechtliche Bedenken melden

Technische Daten

Special device:
Specialty: Lowresistance connection cable between housing potential and mass Hybrid ball bearing
Standard reference device: EKS362KF0B020A, 1084232
Items supplied: M3 mounting screws for stator coupling not included with delivery.
Safety integrity level: SIL 2(IEC6150, SILCL2 (EN6206
Category: 3ENISO1384
Test rate: 1h
Maximum demand rate: 200s
Performance level: PLdENISO1384
Safetyrelated resolution: Channel 1= 20bit, channel 2= 9bit
PFH (mean probability of a dangerous failure per hour): 4x 10 8
T M (mission time): 20years ENISO1384
MTTF D (mean time to dangerous failure): 500years ENISO1384
Position:
Resolution per revolution20bit

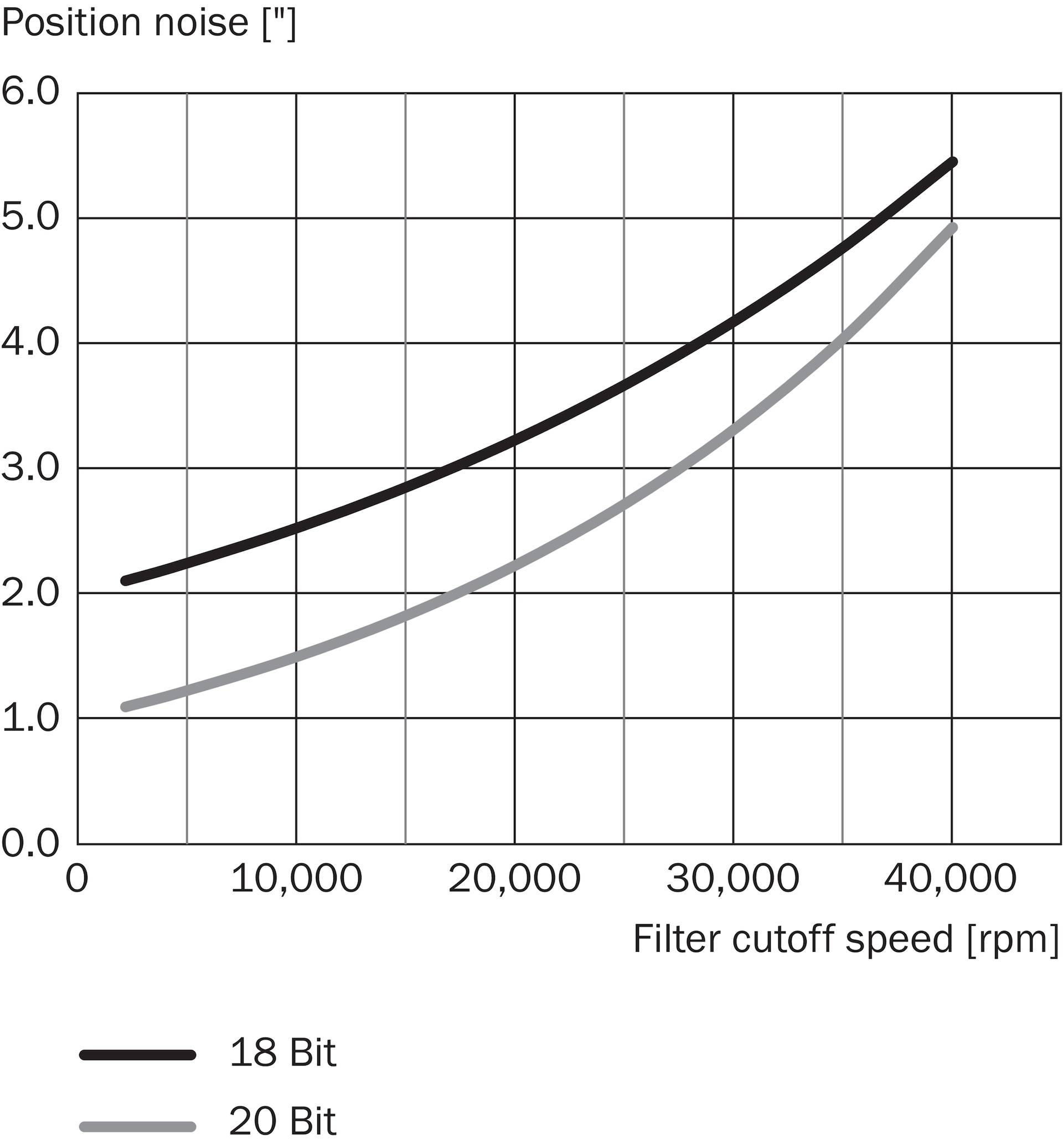

Signal noise (σ): 4″ (See signal noise and attenuation diagrams)
Number of the absolute ascertainable revolutions: 1
Available memory area: 8,192Byte
Measurement step per revolution1,048,576
Measurement principle: Optical
Position:
Resolution per revolution20bit
Signal noise (σ): 4″ (See signal noise and attenuation diagrams)
Number of the absolute ascertainable revolutions: 1
Available memory area: 8,192Byte
Measurement step per revolution1,048,576
Measurement principle: Optical
Type of code for the absolute value: Binary
Code sequence: Increasing, when turning the shaft For clockwise rotation, looking in direction A (see dimensional drawing)
Communication interface: HIPERFACE DSL ®
Initialization time: Max.500ms
Measurement external temperature resistance: 32bit value, without prefix ( 0... 209.600 At 40C... +160C: NTC +2K; PTC +3K
Connection type: Male connector, 4pin
Supply voltage 7V... 12V
Warmup time voltage ramp: Max. 180ms
Recommended supply voltage 8V
Current consumption: 150mA (See current consumption diagram)
Output frequency for the digital positionvalue: 0kHz... 75kHz
Shaft version: Tapered shaft
Flange type / stator coupling: Stator coupling
Dimensions: See dimensional drawing
Weight: 0.1kg
Moment of inertia of the rotor: 4.5gcm
Operating speed: 12,000min
Angular acceleration: 500,000rad/s
Operating torque: 0.2Ncm
Start up torque: 0.3Ncm
Permissible movement static: 0.1mm, 0.5mm radial, axial
Permissible movement dynamic: 0.05mm radial 0.1mm axial
Life of ball bearings: 3.6x 10^9 revolutions
Operating temperature range: 20C... +115C
Storage temperature range: 40C... +125C
Relative humidity/condensation: 90%, Condensation not permitted
Resistance to shocks: 100g, 6ms (according to EN6006822
Frequency range of resistance to vibrations: 50g, 10Hz... 2,000Hz (EN600682
EMC: According to EN6100062, EN6100064 and IEC613263
Enclosure rating: IP40, with mating connector inserted and closed cover (IEC60529
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
ECTypeExamination approval
ECLASS 5.0: 27270590
ECLASS 5.1.4: 27270590
ECLASS 6.0: 27270590
ECLASS 6.2: 27270590
ECLASS 7.0: 27270590
ECLASS 8.0: 27270590
ECLASS 8.1: 27270590
ECLASS 9.0: 27270590
ECLASS 10.0: 27273805
ECLASS 11.0: 27273901
ECLASS 12.0: 27273901
ETIM 5.0: EC001486
ETIM 6.0: EC001486
ETIM 7.0: EC001486
ETIM 8.0: EC001486
UNSPSC 16.0901: 41112113

Produkt-Art: Inkremental-Encoder

Typ: 1103061

Beschreibung

Sick Motor-Feedback-System EKS36-2KF0B0S14

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Motor-Feedback-System Typ:EKS36-2KF0B0S14Standard für Schnittstellen:sonstigeAnzahl der Schritte pro Umdrehung:1048576Schutzart (IP):IP40
Sick Motor-Feedback-System EKS36-2KF0B0S14: weitere Details
Motor-Feedback-Systeme rotativ HIPERFACE DSL®, EKS/EKM36, EKS36-2KF0B0S14, Kommunikationsschnittstelle: HIPERFACE DSL®, Ausführung: Absolut-Singleturn, Bauart: Einbau, Auflösung pro Umdrehung: 20 bit, Sicherheitsgerichtetes System: ja, Mechanische Ausführung: Konuswelle, Anschlussart: Stecker, 4-polig, Technologie: Optisch, Betriebstemperaturbereich: 20 °C ... +115 °C, Besonderheit: Niederohmige Verbindung zwischen Gehäusepotential und Masse, Hybrid Kugellager

Geliefert wird: Sick Motor-Feedback-System EKS36-2KF0B0S14, Verpackungseinheit: 1 Stk., EAN:
