Das Produkt kann von der Abbildung abweichen, da es sich um einen Refurbished Artikel handelt. Mehr erfahren Sie auf unserer InfoSeite.

Refurbished

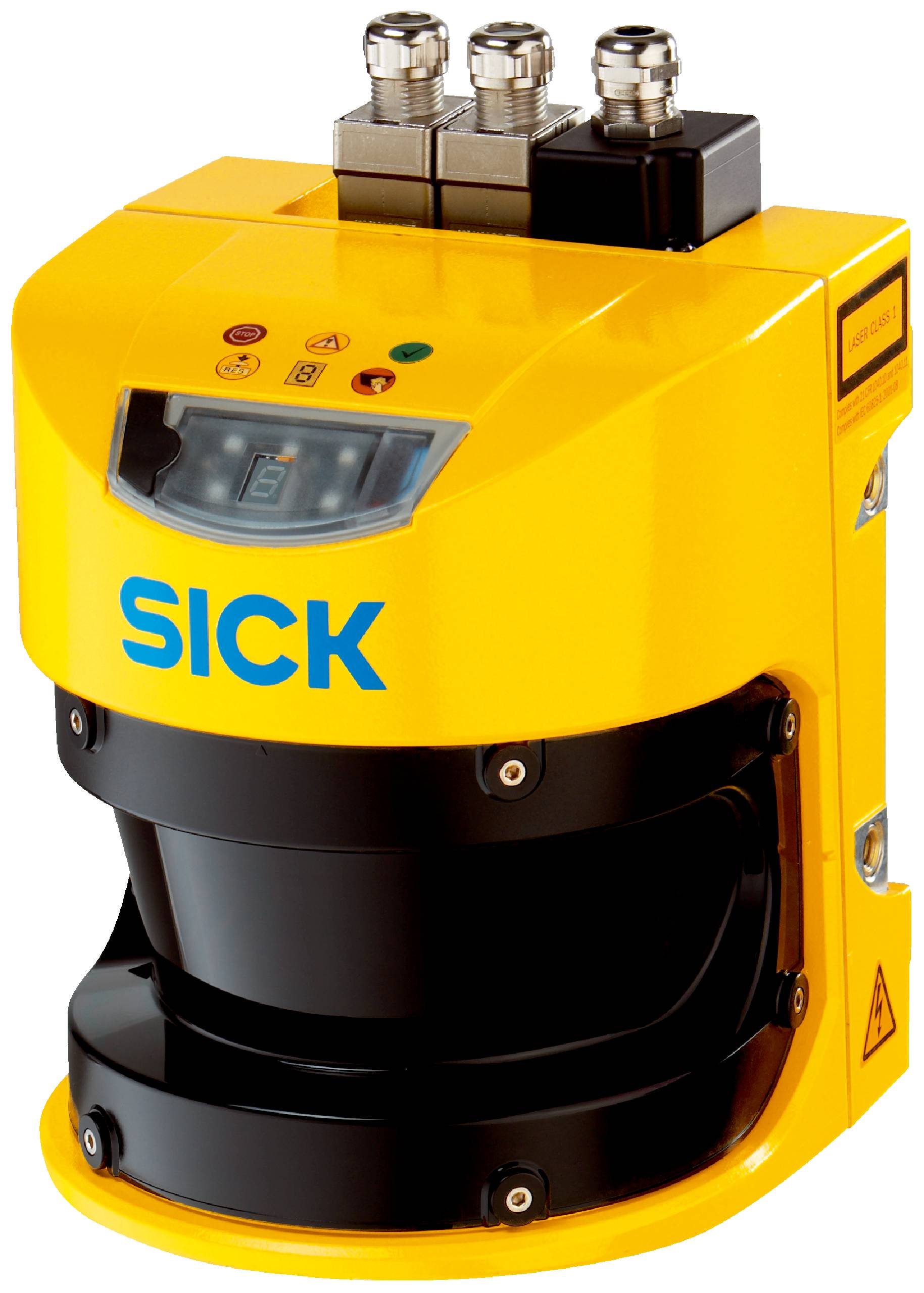

Sick S30A-7111CP, S3000 PROFINET IO Advanced, P/n: 1045654-0

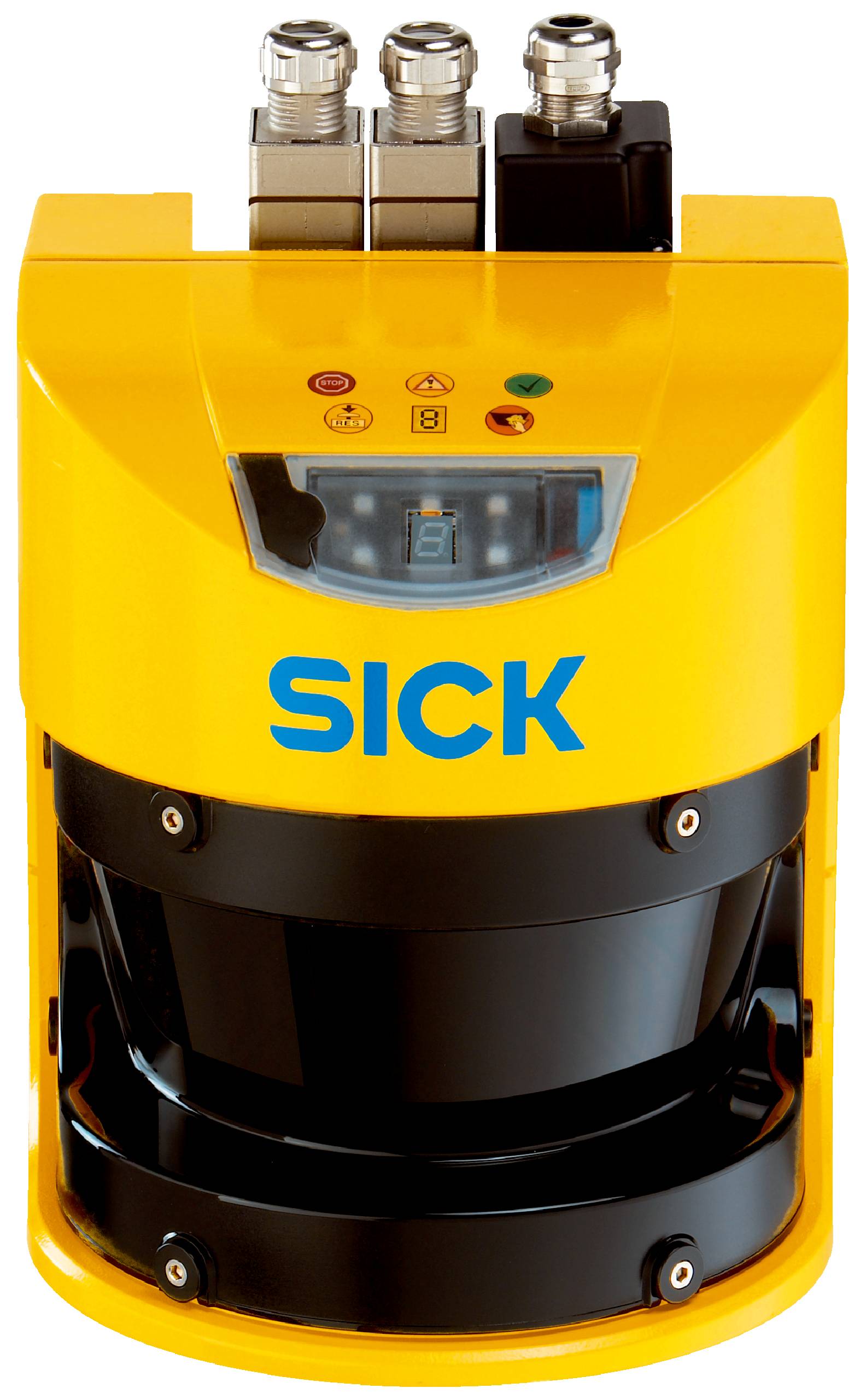

Sick S30A-7111CP, S3000 PROFINET IO Advanced, P/n: 1045654-1

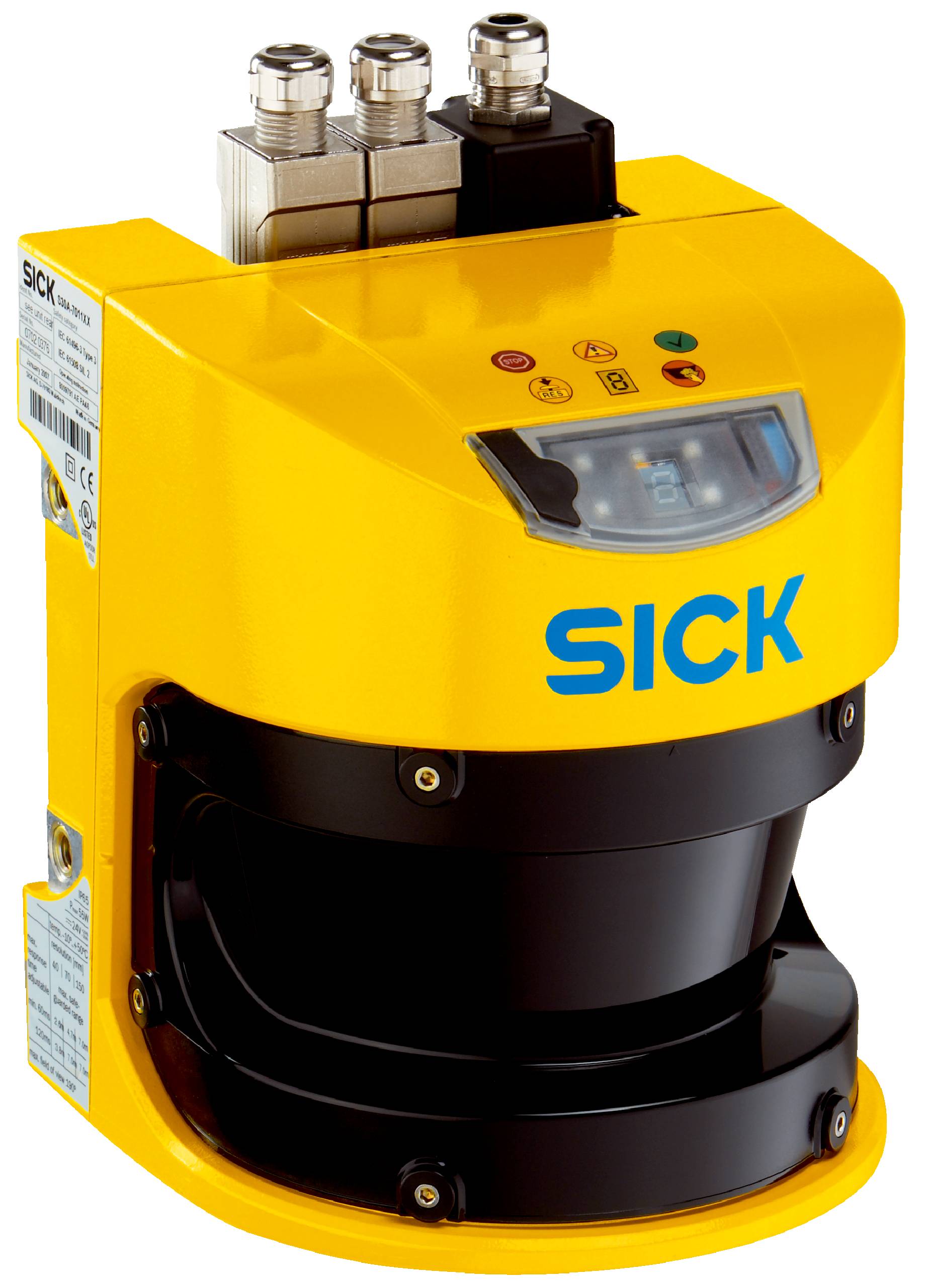

Sick S30A-7111CP, S3000 PROFINET IO Advanced, P/n: 1045654-2

1/3

Sofort-Lieferung Mo., 12. Okt.

1 Stück

Verkauf und Versand:

automation-base.com (AT) Widerruf

Zustand: Exzellent (Refurbished)

Anzahl

Stück

Gesamt

€ 4.681,20

steuerfreie IGL

€ 17,00

Nur noch 1 Stück verfügbar

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Technische Daten

Usage: S3000 PROFINET IO does not have any local inputs or outputs and is only operated in a network with corresponding controller.
Model: Sensor without system plug
Application: Indoor
Protective field range: 7m
Warning field range: 49m (20m at 20% reflectivity)
Distance measuring range: 49m
Number of simultaneously monitored protective fields: 2
Type of field set: Dual field sets
Number of field sets: 4
Number of fields: 8
Number of monitoring cases: 4
Scanning angle: 190
Resolution (can be configured): 30mm, 40mm, 50mm, 70mm, 150mm
Angular resolution: 0.5, 0.25, depending on range and resolution
Response time: 60ms
Protective field supplement: 100mm
Number of multiple samplings: 2... 16, configurable
Delay of automatic reset: 120ms... 4,920ms, configurable
Type: Type 3(IEC6149
Safety integrity level: SIL 2(IEC6150
Category: Category 3ENISO1384
Performance level: PLdENISO1384
PFH D (mean probability of a dangerous failure per hour): 8.0x10 8
T M (mission time): 20years ENISO1384
Safe state in the event of a fault: The safetyrelated data is logic 0.
Restart interlock:
Multiple sampling:
Monitoring case switching
Simultaneous monitoring:
Static protective field switching
Contour as a reference:
Integrated configuration memory:
Measured data output: Via RS422
Connection type:
Bus connection: Copper conductor (2female connectors for RJ45 pushpull plug)
Supply connection: System plug with or without connecting cable
Configuration and diagnostics interface: RS232
Transmission rate: 9.6kBaud, 19.2kBaud, 38.4kBaud
Fieldbus, industrial network: PROFINET PROFIsafe
Type of fieldbus integration: Integrated in the device
Device properties: PROFINET IO device with 2port realtime switch according to PROFINET specification V2.2
: PROFIsafe profile with 6octet input and 6octet output according to IEC6178433 V2.4
: Cycle time 4, 8, 16, 32ms, etc.
: GSDML according to GSDML specification V2.25
Switch properties: Filtering Data Base according to IEEE 802.1D
: 6prioritization levels for IEEE 802.1Q Network prioritization
: 64KB SRAM memory for caching telegrams, managed in 768byte segments
: Resource prioritization for network control and RTC2/3 frames
: Telegram extension based on "Cutthrough"
: Port status (Disabled, Blocking, Forwarding)
: Support for nonrealtime and realtime data transfer
Port properties: Autonegotiation
: Autocrossover (MDIX)
: Autopolarity
: 100BaseTX
Conformance: Conformance Class B
Topology support: SNMP, MIB2, LLDP according to IEEE 802.1AB
: MRP client support
Diagnostics: Applicationrelated manufacturerspecific channel diagnostics and channel diagnostics for the PROFIsafe profile, individually switchable
: Report system errors
: Cable diagnostics
: Neighborhood alerts
: Support for port statistics
: I&M support from I&M0 to I&M4
Interfaces: TCP port 9000and UDP port 30718
: RS232
Functions that are not supported: Multicast communication
: Supervisor AR
: MACpause mechanism in full duplex
: Backpressure in half duplex
: Static learning
: Broadcast Storm Control
Connection type:
Bus connection: Copper conductor (2female connectors for RJ45 pushpull plug)
Supply connection: System plug with or without connecting cable
Configuration and diagnostics interface: RS232
Transmission rate: 9.6kBaud, 19.2kBaud, 38.4kBaud
Fieldbus, industrial network: PROFINET PROFIsafe
Type of fieldbus integration: Integrated in the device
Device properties: PROFINET IO device with 2port realtime switch according to PROFINET specification V2.2
: PROFIsafe profile with 6octet input and 6octet output according to IEC6178433 V2.4
: Cycle time 4, 8, 16, 32ms, etc.
: GSDML according to GSDML specification V2.25
Switch properties: Filtering Data Base according to IEEE 802.1D
: 6prioritization levels for IEEE 802.1Q Network prioritization
: 64KB SRAM memory for caching telegrams, managed in 768byte segments
: Resource prioritization for network control and RTC2/3 frames
: Telegram extension based on "Cutthrough"
: Port status (Disabled, Blocking, Forwarding)
: Support for nonrealtime and realtime data transfer
Port properties: Autonegotiation
: Autocrossover (MDIX)
: Autopolarity
: 100BaseTX
Conformance: Conformance Class B
Topology support: SNMP, MIB2, LLDP according to IEEE 802.1AB
: MRP client support
Diagnostics: Applicationrelated manufacturerspecific channel diagnostics and channel diagnostics for the PROFIsafe profile, individually switchable
: Report system errors
: Cable diagnostics
: Neighborhood alerts
: Support for port statistics
: I&M support from I&M0 to I&M4
Interfaces: TCP port 9000and UDP port 30718
: RS232
Functions that are not supported: Multicast communication
: Supervisor AR
: MACpause mechanism in full duplex
: Backpressure in half duplex
: Static learning
: Broadcast Storm Control
Protection class: III (VDE 0106, EN60950)
Supply voltage V s : 24VDC (16.8VDC... 28.8VDC)
Power consumption: 0.8A
Dimensions (Wx Hx D): 155mmx 185mmx 160mm
Weight: 3.3kg
Housing material: Aluminum die cast
Housing color: RAL 1021(yellow)
Front screen material: Polycarbonate
Front screen surface finish: Outside with scratchresistant coating
Enclosure rating: IP65 (EN6052
Ambient operating temperature: 10C... +50C
Storage temperature: 25C... +50C
Vibration resistance: IEC6006826, IEC60068264, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Shock resistance: IEC60068227, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Continuous shock: 50m/s, 11ms
: 100m/s, 16ms
Vibration resistance: IEC6006826, IEC60068264, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Shock resistance: IEC60068227, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Continuous shock: 50m/s, 11ms
: 100m/s, 16ms
Type of light: Pulsed laser diode
Wave length: 905nm
Detectable remission factor: 1.8%... >1,000%, reflectors
Laser class: 1(21CFR 1040.10and 1040.11, IEC60825
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
China GB Certificate
cULus Certificate
Profinet Certificate
PROFIsafe Certificate
ECLASS 5.0: 27272705
ECLASS 5.1.4: 27272705
ECLASS 6.0: 27272705
ECLASS 6.2: 27272705
ECLASS 7.0: 27272705
ECLASS 8.0: 27272705
ECLASS 8.1: 27272705
ECLASS 9.0: 27272705
ECLASS 10.0: 27272705
ECLASS 11.0: 27272705
ECLASS 12.0: 27272705
ETIM 5.0: EC002550
ETIM 6.0: EC002550
ETIM 7.0: EC002550
ETIM 8.0: EC002550
UNSPSC 16.0901: 39121528

UKCA: Ja

Beschreibung

Manufacturer part number: 1045654
Sicherheits-Laserscanner
Sicherheits-Laserscanner, S3000L PROFINET IO Advanced, S30A-7111CP Long Range, 7 m Schutzfeldreichweite, 4 Schutz-/Warnfelder

Beschreibung

Manufacturer part number: 1045654
Sicherheits-Laserscanner
Sicherheits-Laserscanner, S3000L PROFINET IO Advanced, S30A-7111CP Long Range, 7 m Schutzfeldreichweite, 4 Schutz-/Warnfelder
