Sick S30B-2011DA, Sicherheits-Laserscanner, P/n: 1026822 kaufen

Sick S30B-2011DA, Sicherheits-Laserscanner, P/n: 1026822-0

Sick S30B-2011DA, Sicherheits-Laserscanner, P/n: 1026822-1

Sick S30B-2011DA, Sicherheits-Laserscanner, P/n: 1026822-2

1/3

Sofort-Lieferung morgen

2 Stück

Verkauf und Versand:

automation-base.com (AT) Widerruf

Anzahl

Stück

Gesamt

€ 3.818,40

steuerfreie IGL

€ 17,00

Nur noch 2 Stück verfügbar

Sie haben bereits das beste Angebot für Ihre Menge.

Die optimale Auswahl für die eingegebene Menge wird automatisch berechnet, inklusive Preis (exkl. Versand) und Lieferzeit.

Rechtliche Bedenken melden

Highlights & Details

Sick S30B-2011DA, Sicherheits-Laserscanner, P/n: 1026822

tastender Sicherheits-Laserscanner

Technische Daten

Sub product family: S300 Professional
Model: Sensor without system plug
Application: Indoor
Protective field range: 2m
Warning field range: 8m (at 15% reflectivity)
Distance measuring range: 30m
Type of field set: Triple field sets
Number of field sets: 8
Number of fields: 24
Number of monitoring cases: 32
Scanning angle: 270
Resolution (can be configured): 30mm, 40mm, 50mm, 70mm
Angular resolution: 0.5
Response time: 80ms
Protective field supplement: 100mm
Number of multiple samplings: 2... 16, configurable
Delay of automatic reset: 2s... 60s, configurable
Type: Type 3(IEC6149
Safety integrity level: SIL 2(IEC6150
Category: Category 3ENISO1384
Performance level: PLdENISO1384
PFH D (mean probability of a dangerous failure per hour): 8.0x10 8
T M (mission time): 20years ENISO1384
Safe state in the event of a fault: At least one OSSD is in the OFF state.
Restart interlock:
External device monitoring (EDM):
Multiple sampling:
Monitoring case switching
Static protective field switching
Dynamic protective field switching
Contour as a reference:
Integrated configuration memory:
Measured data output: Via RS422
Safe SICK device communication via EFI:
Connection type: System plug with or without connecting cable
Universal I/Os: 5
Inputs:
External device monitoring (EDM): 1
Reset/restart: 1
Static control inputs: 3
Static control inputs with EFI: 5
Dynamic control inputs (incremental encoder): 2
Standby: 1
Outputs:
OSSD pairs: 1
Application diagnostic outputs: 3
Configuration method: PC with CDS (Configuration and Diagnostic Software)
Configuration and diagnostics interface: RS232
Transmission rate: 38.4kBaud
Data interface: RS422
Transmission rate: 500kBaud
Safe SICK device communication via EFI:
Transmission rate: 500kBaud
Length of cable: 50m
Conductor cross section: 0.22mm
Connection type: System plug with or without connecting cable
Inputs:
External device monitoring (EDM): 1
Reset/restart: 1
Static control inputs: 3
Static control inputs with EFI: 5
Dynamic control inputs (incremental encoder): 2
Standby: 1
Outputs:
OSSD pairs: 1
Application diagnostic outputs: 3
Configuration and diagnostics interface: RS232
Transmission rate: 38.4kBaud
Data interface: RS422
Transmission rate: 500kBaud
Safe SICK device communication via EFI:
Transmission rate: 500kBaud
Length of cable: 50m
Conductor cross section: 0.22mm
Protection class: II (EN50178, EN60950)
Supply voltage V s : 24VDC (16.8VDC... 30VDC)
Power consumption: 0.33A 1.7A
Outputs:
Output signal switching devices (OSSDs): 2x 250mA
Application diagnostic outputs: 3x 100mA
Outputs:
Output signal switching devices (OSSDs): 2x 250mA
Application diagnostic outputs: 3x 100mA

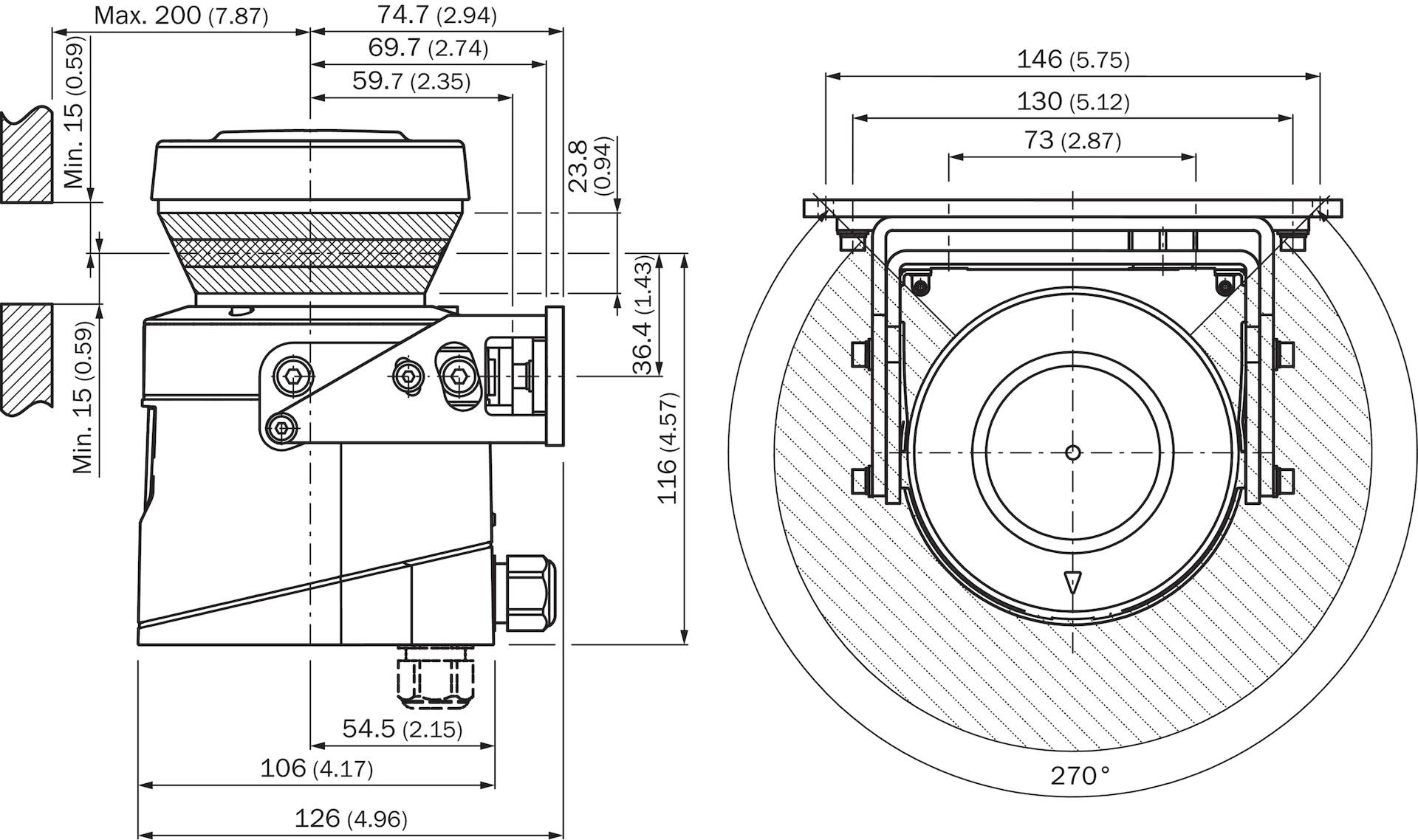

Dimensions (Wx Hx D): 102mmx 152mmx 106mm
Weight: 1.2kg
Housing material: Aluminum die cast
Housing color: RAL 1021(yellow)
Optics cover material: Polycarbonate
Optics cover surface finish: Outside with scratchresistant coating
Enclosure rating: IP65 (EN6052
Ambient operating temperature: 10C... +50C
Storage temperature: 25C... +50C
Vibration resistance: IEC6006826, IEC60068264, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Shock resistance: IEC60068227, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Continuous shock: 50m/s, 11ms
: 100m/s, 16ms
Vibration resistance: IEC6006826, IEC60068264, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Shock resistance: IEC60068227, IEC6072135, IECTR 6072145, IEC614963
Class: 5M1 (IEC607213
Continuous shock: 50m/s, 11ms
: 100m/s, 16ms
Type of light: Pulsed laser diode
Wave length: 905nm
Detectable remission factor: 1.8%... >1,000%, reflectors
Laser class: 1(21CFR 1040.10and 1040.11, IEC60825
ECLASS 5.0: 27272705
ECLASS 5.1.4: 27272705
ECLASS 6.0: 27272705
ECLASS 6.2: 27272705
ECLASS 7.0: 27272705
ECLASS 8.0: 27272705
ECLASS 8.1: 27272705
ECLASS 9.0: 27272705
ECLASS 10.0: 27272705
ECLASS 11.0: 27272705
ECLASS 12.0: 27272705
ETIM 5.0: EC002550
ETIM 6.0: EC002550
ETIM 7.0: EC002550
ETIM 8.0: EC002550
UNSPSC 16.0901: 39121528

UKCA: Ja

Beschreibung

Sick Sicherheitslaserscanner S30B-2011DA

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Sicherheitslaserscanner Typ:S30B-2011DAAusführung der Schnittstelle für sicherheitsgerichtete Kommunikation:sonstigeAusführung des elektrischen Anschlusses:Kabel mit SteckverbinderBetriebsmittel-Schutzklasse:Schutzklasse 2Breite des Sensors:102 mmHöhe des Sensors:152 mmLänge des Sensors:106 mmScanwinkel:270 °Sicherheitstyp nach IEC 61496-1:3Mit Wiederanlaufsperre:ja
Sick Sicherheitslaserscanner S30B-2011DA: weitere Details
Sicherheitslaserscanner, S300 Professional, S30B-2011DA, Ausführung: Sensor ohne Systemstecker, Schutzfeldreichweite: 2 m, Scanwinkel: 270°, Anzahl Felder: 24 EAN: 4047084128622

Geliefert wird: Sick Sicherheitslaserscanner S30B-2011DA, Verpackungseinheit: 1 Stk., EAN: 4047084128622
