Sick Sicherheitsrelais RLY3-LOOP100 kaufen

1/3

Betriebsspannung

24 V/DC

Typ

1100696

Ansprechzeit

79 ms

Kontaktart

3 Schließer

Schaltspannung (max.)

230 V DC/AC

Lieferung Mi., 18. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 511,58

steuerfreie IGL

€ 7,92

Rechtliche Bedenken melden

Technische Daten

Applications: Evaluation unit
Compatible sensor types: Flexi Loop safe series connection
Safety integrity level: SIL 3(IEC6150
Category: Category 4(ISO13849
Performance level: PLe(ISO13849
PFH D (mean probability of a dangerous failure per hour): 1.5 10 9
T M (mission time): 20years (ISO13849
Stop category: 0(IEC60204
Flexi Loop monitoring:
Restart interlock:
Reset: Automatic Manual
External device monitoring (EDM):
Connection type: Front connector with spring terminals
Inputs: 2safety inputs 1input for reset pushbutton or external device monitoring (EDM)
Outputs: 3enabling current paths (safe) 2application diagnostic outputs (not safe) 1test pulse output (not safe)
Display elements: LEDs
Configuration method: Hard wired DIPswitch
Voltage supply: PELV or SELV
Supply voltage V S : 24VDC (16.8V... 30V)
Residual ripple: 2.4V
Power consumption: 2.5W (DC)
Safety inputs:
Number: 2
Input voltage HIGH: 24VDC (11V... 30V)
Input voltage LOW: 0VDC (3V... 5V)
Input current: 4mA... 6mA
Activation time tolerance between the two start buttons: 3s
Reset pushbutton or external device monitoring (EDM) input:
Number: 1
Input voltage HIGH: 24VDC (11V... 30V)
Input voltage LOW: 0VDC (3V... 5V)
Input current: 4mA... 6mA
Enabling current paths:
Response time: 79ms
Number: 3
Type of output: N/O contacts, positively guided
Contact material: Silver alloy, gold flashed
Switching voltage 10VAC... 230VAC
: 10VDC... 230VDC
Switching current: 10mA... 6A
Total current: 12A
Mechanical life: 1x10 7 switching cycles
Overvoltage category: III (EN60664
Rated impulse withstand voltage U imp : 6kV (EN60664
Application diagnostic outputs:
Number: 2
Type of output: Pushpull semiconductor output, shortcircuit protected
Output voltage HIGH: ≥V s 3V
Output voltage LOW: 3V
Input current (NPN): 15mA
Output current (PNP): 120mA
Test pulse outputs:
Number: 1
Type of output: PNP semiconductors, shortcircuit protected
Output voltage ≥V s 3V
Test pulse width: 2ms
Test pulse interval: 40ms
Safety inputs:
Number: 2
Input voltage HIGH: 24VDC (11V... 30V)
Input voltage LOW: 0VDC (3V... 5V)
Input current: 4mA... 6mA
Activation time tolerance between the two start buttons: 3s
Reset pushbutton or external device monitoring (EDM) input:
Number: 1
Input voltage HIGH: 24VDC (11V... 30V)
Input voltage LOW: 0VDC (3V... 5V)
Input current: 4mA... 6mA
Enabling current paths:
Response time: 79ms
Number: 3
Type of output: N/O contacts, positively guided
Contact material: Silver alloy, gold flashed
Switching voltage 10VAC... 230VAC
: 10VDC... 230VDC
Switching current: 10mA... 6A
Total current: 12A
Mechanical life: 1x10 7 switching cycles
Overvoltage category: III (EN60664
Rated impulse withstand voltage U imp : 6kV (EN60664
Application diagnostic outputs:
Number: 2
Type of output: Pushpull semiconductor output, shortcircuit protected
Output voltage HIGH: ≥V s 3V
Output voltage LOW: 3V
Input current (NPN): 15mA
Output current (PNP): 120mA
Test pulse outputs:
Number: 1
Type of output: PNP semiconductors, shortcircuit protected
Output voltage ≥V s 3V
Test pulse width: 2ms
Test pulse interval: 40ms

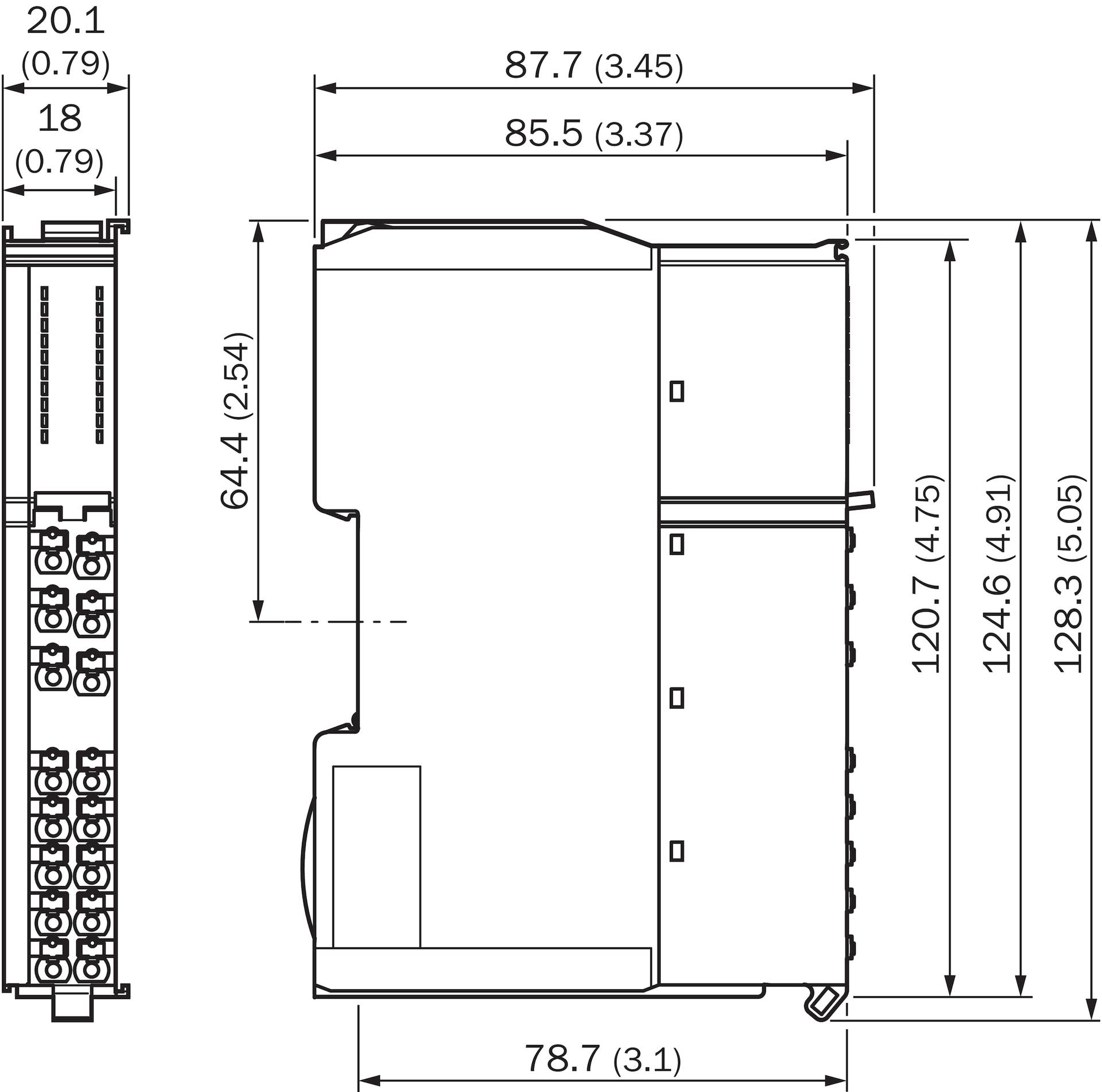

Dimensions (Wx Hx D): 18mmx 124.6mmx 85.5mm
Weight: 160g
Enclosure rating: IP20 (IEC6052
Ambient operating temperature: 25C... +55C
Storage temperature: 25C... +70C
Air humidity: 95%, Noncondensing
Interference emission: According to IEC6100064
Interference resistance: According to IEC6132631 According to IEC6100062 According to IEC6094751
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
CCC Certificate
UKTypeExamination approval
cULus Certificate
EAC certificate / DoC
cTUVus Certificate
S Mark Certificate
ECTypeExamination approval
Third party Certificate
ECLASS 5.0: 27371990
ECLASS 5.1.4: 27371990
ECLASS 6.0: 27371819
ECLASS 6.2: 27371819
ECLASS 7.0: 27371819
ECLASS 8.0: 27371819
ECLASS 8.1: 27371819
ECLASS 9.0: 27371819
ECLASS 10.0: 27371819
ECLASS 11.0: 27371819
ECLASS 12.0: 27371819
ETIM 5.0: EC001449
ETIM 6.0: EC001449
ETIM 7.0: EC001449
ETIM 8.0: EC001449
UNSPSC 16.0901: 41113704

Typ: 1100696

Betriebsspannung: 24 V/DC

Ansprechzeit: 79 ms

Kontaktart: 3 Schließer

Schaltspannung (max.): 230 V DC/AC

Performance Level: PL e

Safety Integrity Level: SIL 3

Sicherheitskategorie: 4

Zulassungen (Sensoren): cULus

Besonderheiten: EDM

Betriebstemperatur (min.): 25 °C

Betriebstemperatur (max.): 55 °C

Tiefe: 85.5 mm

Breite: 18 mm

Höhe: 124.6 mm

Abm.: (B x H x T) 18 x 124.6 x 85.5 mm

Inhalt: 1 St.

UKCA: nicht relevant

Beschreibung

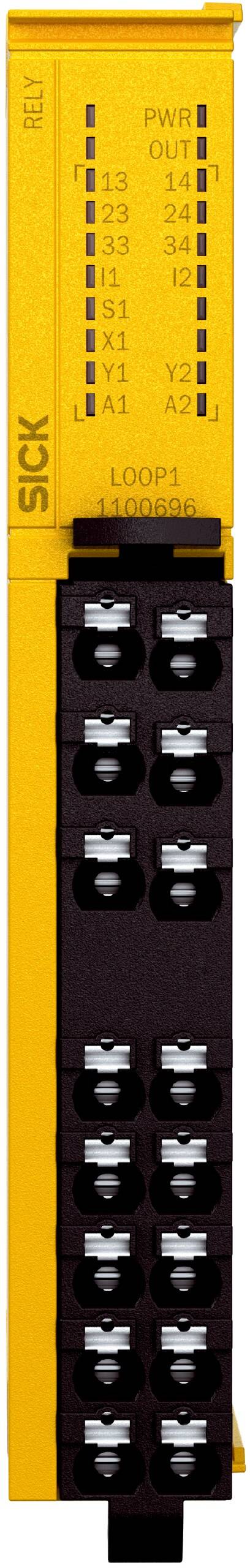

Sick Sicherheitsrelais RLY3-LOOP100

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Sicherheitsrelais Typ:RLY3-LOOP100Performance Level nach EN ISO 13849-1:Level eSIL nach IEC 61508:3Breite:18 mmHöhe:124,6 mmTiefe:85,5 mm
Sick Sicherheitsrelais RLY3-LOOP100: weitere Details
Sicherheitsrelais, ReLy, RLY3-LOOP100, Anwendungen: Auswerteeinheit, Kompatible Sensortypen: Sichere Reihenschaltung Flexi Loop, Anschlussart: Frontstecker mit Zugfederklemmen, Wiederanlaufsperre: ja, Schützkontrolle (EDM): Integriert, Ausgänge: 3 Freigabestrompfade (sicher), 2 Meldeausgänge (nicht sicher), 1 Testpulsausgang (nicht sicher), Gehäusebreite: 18 mm EAN: 4047084498725

Geliefert wird: Sick Sicherheitsrelais RLY3-LOOP100, Verpackungseinheit: 1 Stk., EAN: 4047084498725
