Sick Temperatursensor TBS-1GES21006CM kaufen

1/3

Produkt-Art

Temperatursensor

Typ

6069383

Inhalt

1 St.

Lieferung Do., 19. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 660,25

steuerfreie IGL

€ 7,91

Rechtliche Bedenken melden

Technische Daten

Temperature measuring range: 20C... +120C
Sensor element: Pt1000, 2wire, class A according to IEC60751
Output signals: 1x NPN + 4mA... 20mA
Switching output: Transistor
Switching voltage Supply voltage [VDC] 1VDC
Maximum switching current: 250mA
Switching delay: 0s... 50s, programmable
Setting accuracy of switching outputs: +0.1C
Switching output: Transistor
Number: 1
Switching voltage Supply voltage [VDC] 1VDC
Maximum switching current: 250mA
Switching delay: 0s... 50s, programmable
Setting accuracy of switching outputs: +0.1C
Scaling of measuring range : Zero point: max. +25 % of span Full scale: max. 25 % of span
Scaling of measuring range : Max. +25 % of span, max. 25 % of span
Display: 14segment LED, blue, 4digits, height 9mm,
Display electronically turnable by 180, update: 200ms
Rotatable housing: Display against housing with electrical connection: 330 Housing against process connection: 320
Switching output: Transistor
Number: 1
Switching voltage Supply voltage [VDC] 1VDC
Maximum switching current: 250mA
Switching delay: 0s... 50s, programmable
Setting accuracy of switching outputs: +0.1C
Scaling of measuring range : Max. +25 % of span, max. 25 % of span

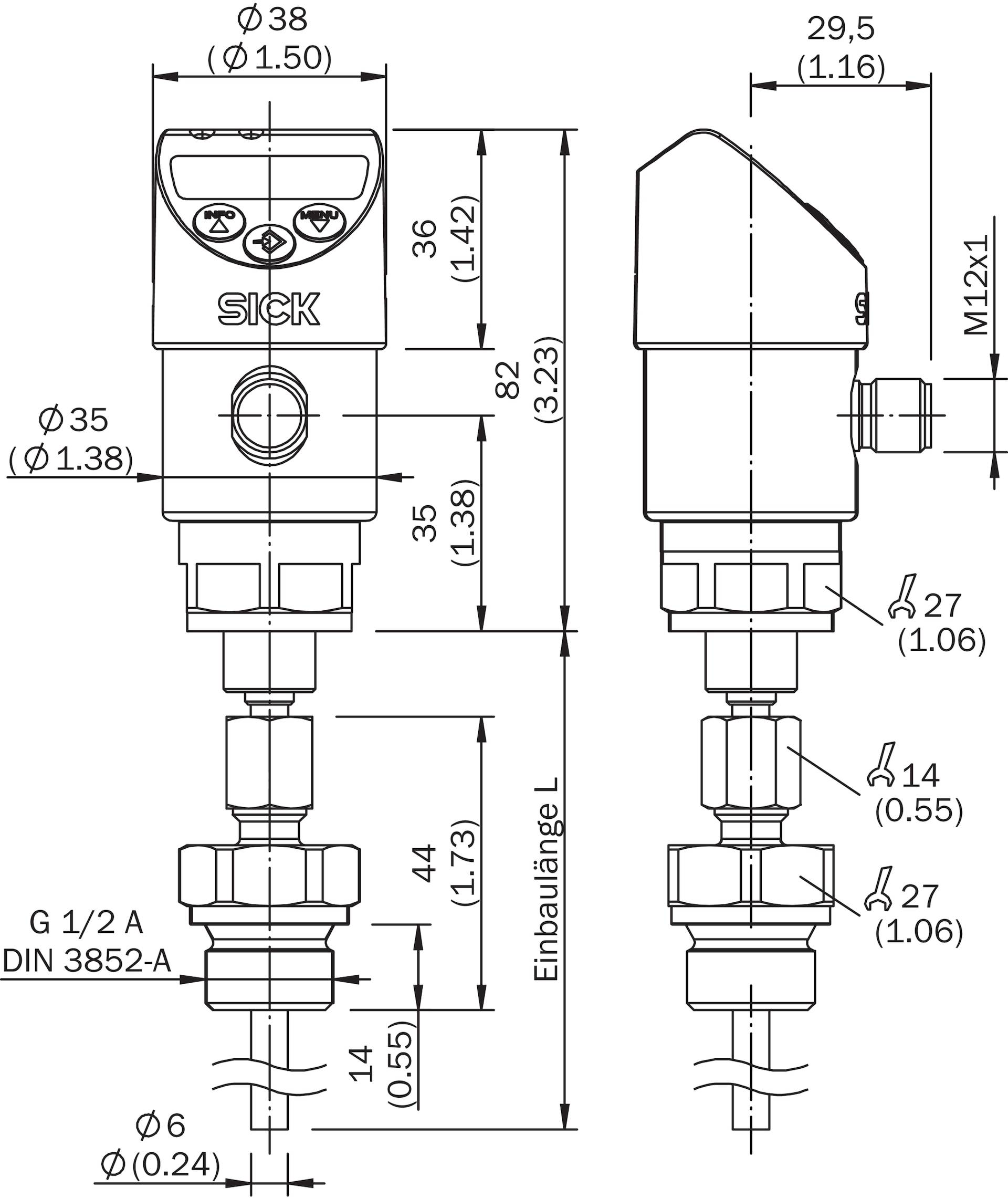

Process connection: Compression fitting G ½ A according to DIN3852A
Insertion length/diameter of probe: 100mm/ 6mm
Seal: Copper
Wetted parts: Stainless steel 1.4571(AISI 316Ti)
Maximum process pressure: 150bar
Housing material: Lower body: stainless steel 1.4301(AISI 30 Plastic head: PC + ABS Input keypad: TPEE Display window: PC
Connection type: M12 round connectorx 1, 4pin
Enclosure rating: IP65 IP67
Maximum ohmic load R A : 100k (Switching outputs) 0.5k (output signal 4mA... 20mA)
Supply voltage 15VDC... 35VDC
Maximum current consumption: 45mA
Total current consumption: 570mA (incl. switching current) 320mA
Protection class: III
Isolation voltage 500VDC
Overvoltage protection: 40VDC
Shortcircuit protection: Outputs Q A , Q 1 , Q 2 towards M
Reverse polarity protection: L + towards M
Electrical safety:
Protection class: III
Isolation voltage 500VDC
Overvoltage protection: 40VDC
Shortcircuit protection: Outputs Q A , Q 1 , Q 2 towards M
Reverse polarity protection : L + towards M
CEconformity 2004/108/EC, EN613261 emission (group 1, class B) and interference immunity (industrial application)
RoHS Certificate
MTTF: 283years
Electrical safety:
Protection class: III
Isolation voltage 500VDC
Overvoltage protection: 40VDC
Shortcircuit protection: Outputs Q A , Q 1 , Q 2 towards M
Reverse polarity protection : L + towards M
Accuracy of sensor element: (0.15C + 0.002|t|)
Accuracy of switching output: 0.8% of span
Display accuracy: 0.8% of span 1digit
Accuracy of analog output: 0.5% of span
Response time t 50 : 5s
Response time t 90 : 10s
Ambient temperature: 20C... +80C
Storage and transport temperature: 20C... +80C
Relative humidity: 45%... 75%
EU declaration of conformity
UK declaration of conformity
ChinaRoHS
cULus Certificate
ECLASS 5.0: 27200208
ECLASS 5.1.4: 27200208
ECLASS 6.0: 27200208
ECLASS 6.2: 27200208
ECLASS 7.0: 27200208
ECLASS 8.0: 27200208
ECLASS 8.1: 27200208
ECLASS 9.0: 27200208
ECLASS 10.0: 27200208
ECLASS 11.0: 27200208
ECLASS 12.0: 27200208
ETIM 5.0: EC002994
ETIM 6.0: EC002994
ETIM 7.0: EC002994
ETIM 8.0: EC002994
UNSPSC 16.0901: 41112211

Produkt-Art: Temperatursensor

Typ: 6069383

Inhalt: 1 St.

Beschreibung

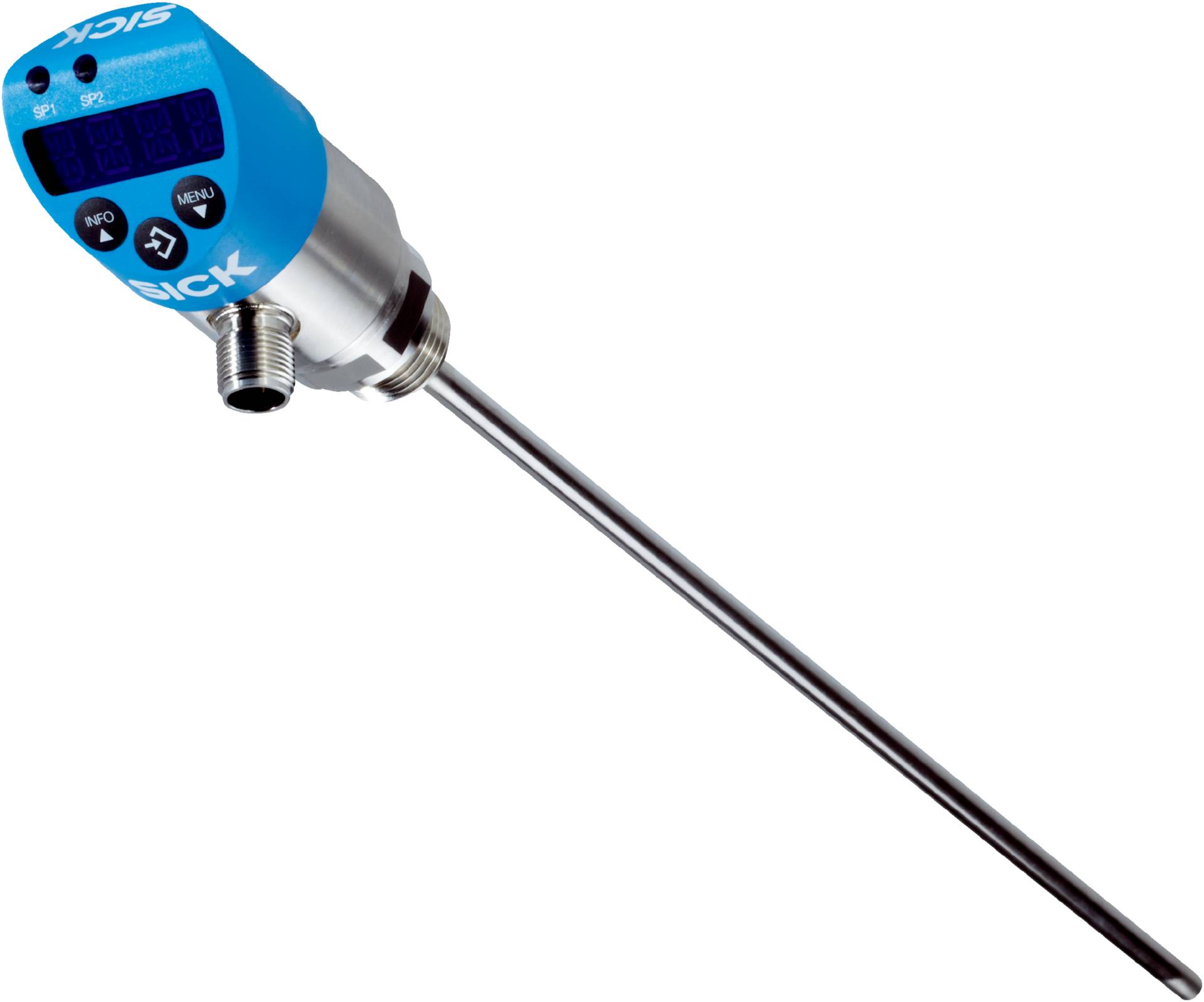

Sick Temperatursensor TBS-1GES21006CM

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Temperatursensor Typ:TBS-1GES21006CMTemperaturmessbereich:-20..120 °CEinbaulänge des Thermometerschutzrohrs:100 mmUmgebungstemperatur:-20 °C
Sick Temperatursensor TBS-1GES21006CM: weitere Details
Temperatursensoren, TBS, TBS-1GES21006CM, Messbereich: 20 °C +120 °C, Genauigkeit des Messelements: = ± (0,15 °C + 0,002 , t, ), Ansprechzeit: Ansprechzeit t50: = 5 sAnsprechzeit t90: = 10 s, Prozessanschluss: Klemmverschraubung G A, Einbaulänge/Durchmesser des Messfühlers: 100 mm / 6 mm, Dichtung: Kupfer, Ausgangssignal: 1 x NPN + 4 mA ... 20 mA, Elektrischer Anschluss: Rundsteckverbinder M12 x 1, 4-polig

Geliefert wird: Sick Temperatursensor TBS-1GES21006CM, Verpackungseinheit: 1 Stk., EAN:
