Sick TR10-SLU03P, Sicherheitsschalter, P/n: 6054766 kaufen

Sick TR10-SLU03P, Sicherheitsschalter, P/n: 6054766-0

Sick TR10-SLU03P, Sicherheitsschalter, P/n: 6054766-1

Sick TR10-SLU03P, Sicherheitsschalter, P/n: 6054766-2

1/3

Lieferung Mi., 9. Dez. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 872,78

steuerfreie IGL

€ 7,92

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Technische Daten

Sensor principle: RFID
Locking principle: Power to lock
Number of safe outputs: 2
Coding: Uniquely coded
Locking force F max : 1,690N ENISO1411
Locking force F Zh : 1,300N ENISO1411
Retaining force: 0N
Actuation directions: 4
Approach speed: 2mm/s
Safety integrity level: SIL 3(IEC6150
Category: Category 4ENISO1384
Performance level: PLeENISO1384
PFH D (mean probability of a dangerous failure per hour): 9.1x10 10
T M (mission time): 20years ENISO1384
Type: Type 4ENISO1411
Actuator coding level: High coding level ENISO1411
Safe state in the event of a fault: At least one safetyrelated semiconductor output (OSSD) is in the OFF state.
Switching behavior of the OSSDs: Locking monitoring

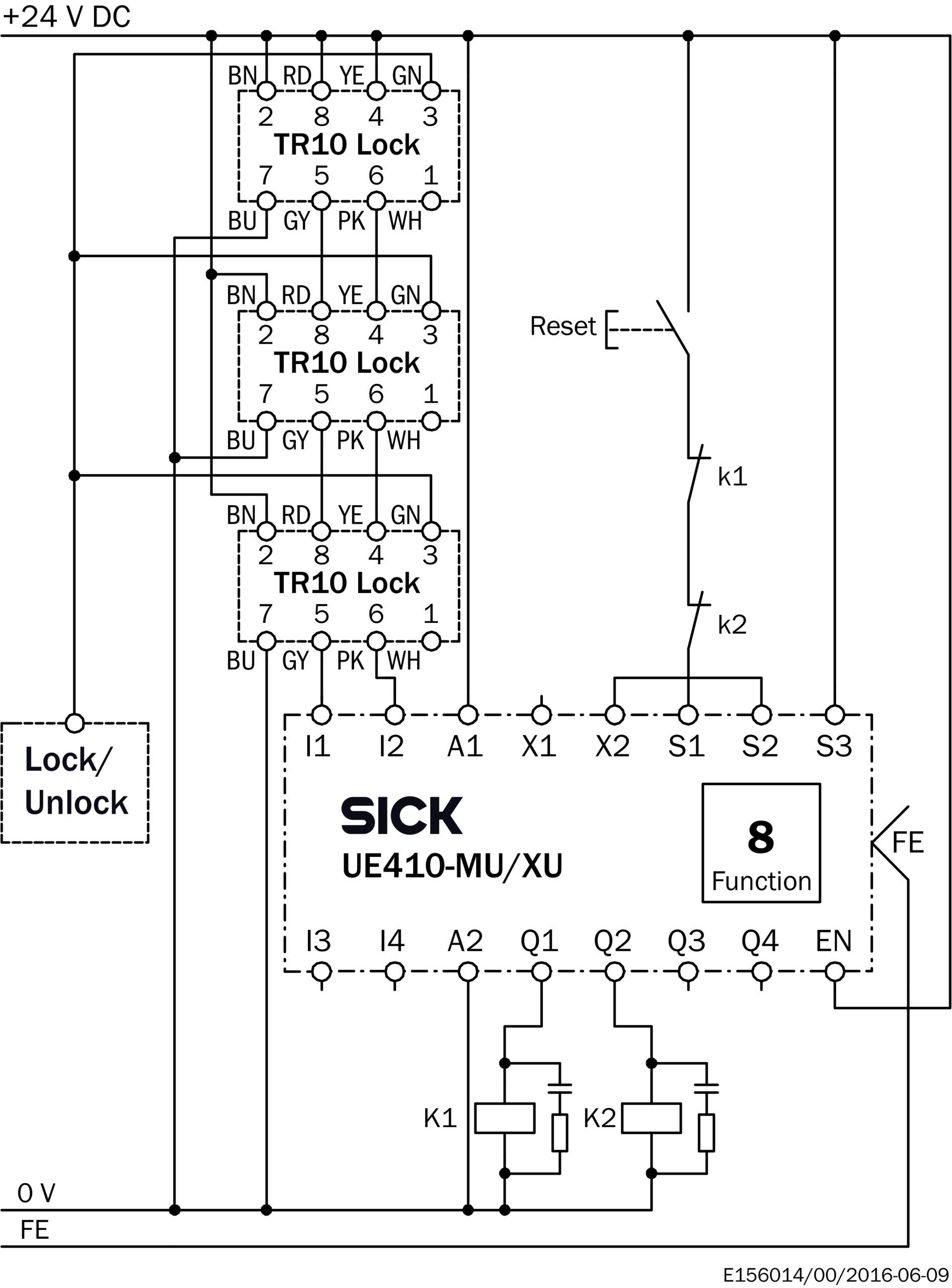

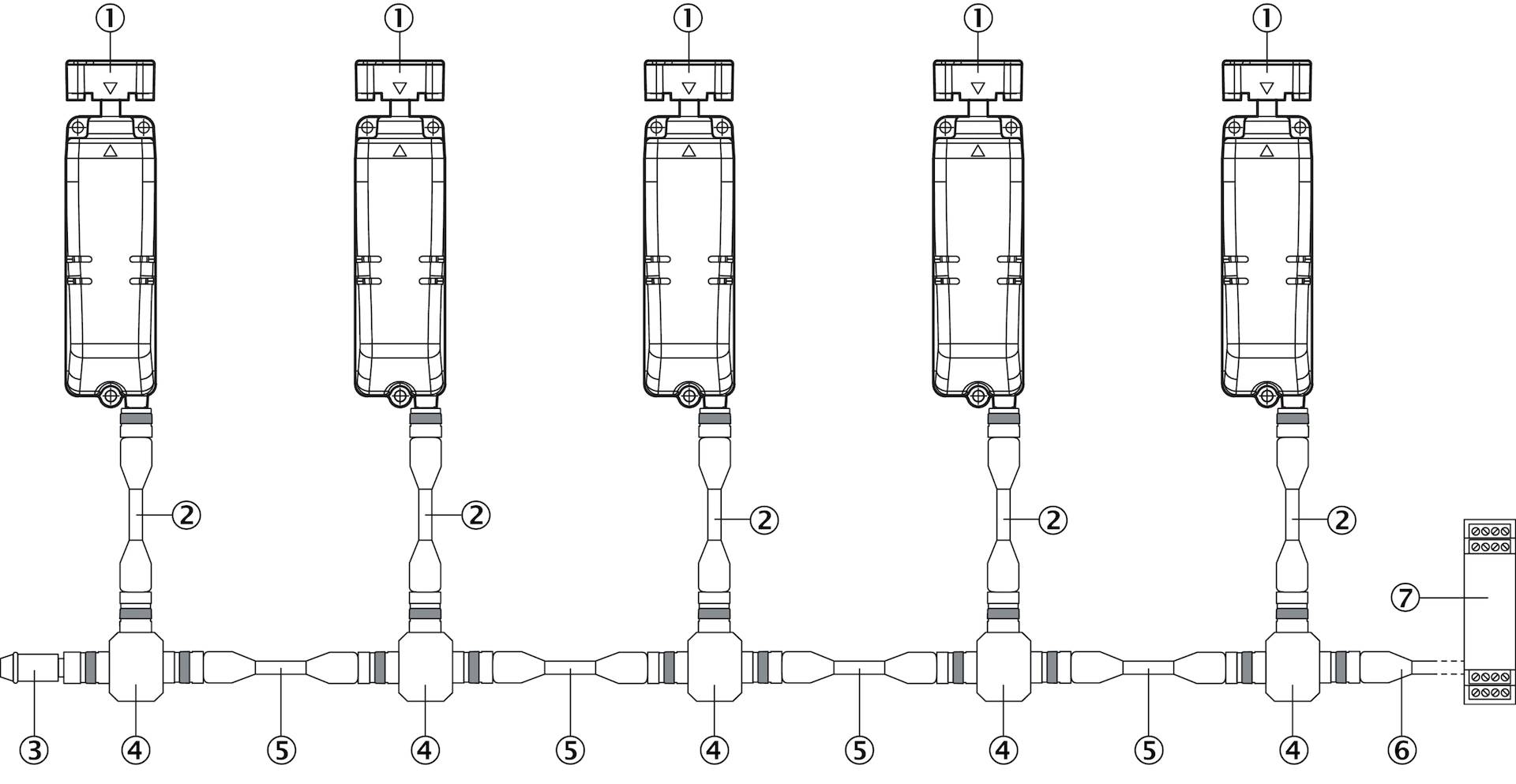

Safe series connections: In control cabinet (with diagnostics)
Connection type: Cable
Length of cable: 3m
Long connecting cable: 200m
Cable diameter: 6.5mm
Conductor cross section: 0.25mm
Bend radius (with fixed installation): 7x cable diameter
Bend radius (with moving cable): 14x cable diameter
Cable material: PVC
Conductor material: Copper
Coupling nut material: Stainless steel
Display elements: LEDs
Diagnostics indicator:
Status display:
Connection type: Cable
Length of cable: 3m
Long connecting cable: 200m
Cable diameter: 6.5mm
Conductor cross section: 0.25mm
Bend radius (with fixed installation): 7x cable diameter
Bend radius (with moving cable): 14x cable diameter
Cable material: PVC
Conductor material: Copper
Coupling nut material: Stainless steel
Display elements: LEDs
Diagnostics indicator:
Status display:
Protection class: II (IEC61140)
Contamination rating: 3
Classification according to cULus: Class 2
Usage category: DC13 (IEC609475
Rated operating current (voltage): 200mA (24VDC)
Rated insulation voltage U i : 75V
Rated impulse withstand voltage U imp : 1,000V
Supply voltage V S : 24VDC (20.4VDC... 26.4VDC)
Type of output: Selfmonitoring semiconductor outputs (OSSDs)
Output current: 200mA
Peak current: 400mA, 100ms
Power consumption: 2.5W
Response time: 100ms for the first switch, 50ms for each subsequent switch
Release time: 600ms
Risk time: 100ms
Switchon time: 7s
Locking principle: Power to lock
Weight: 0.4kg
Housing material: ABS
Locking bolt material: Stainless steel 304
Mechanical life: 5x10 5 switching cycles
Enclosure rating: IP66, IP67, IP69K (IEC60529, IEC60529, IEC6052
Ambient operating temperature: 0C... +55C
Storage temperature: 25C... +75C
Vibration resistance: 10Hz... 55Hz (IEC600682
Shock resistance: 30g, 11ms (EN6006822
EMC: IEC6094753
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
ChinaRoHS
cULus Certificate
Third party Certificate
ECLASS 5.0: 27272603
ECLASS 5.1.4: 27272603
ECLASS 6.0: 27272603
ECLASS 6.2: 27272603
ECLASS 7.0: 27272603
ECLASS 8.0: 27272603
ECLASS 8.1: 27272603
ECLASS 9.0: 27272603
ECLASS 10.0: 27272603
ECLASS 11.0: 27272603
ECLASS 12.0: 27272603
ETIM 5.0: EC002593
ETIM 6.0: EC002593
ETIM 7.0: EC002593
ETIM 8.0: EC002593
UNSPSC 16.0901: 39122205

Produkt-Art: Sicherheitsschalter

Min. Temperatur: 0 °C

Kabellänge: 3 m

Material: Kunststoff

Typ: TR10-SLU03P

Inhalt: 1 St.

UKCA: Ja

Beschreibung

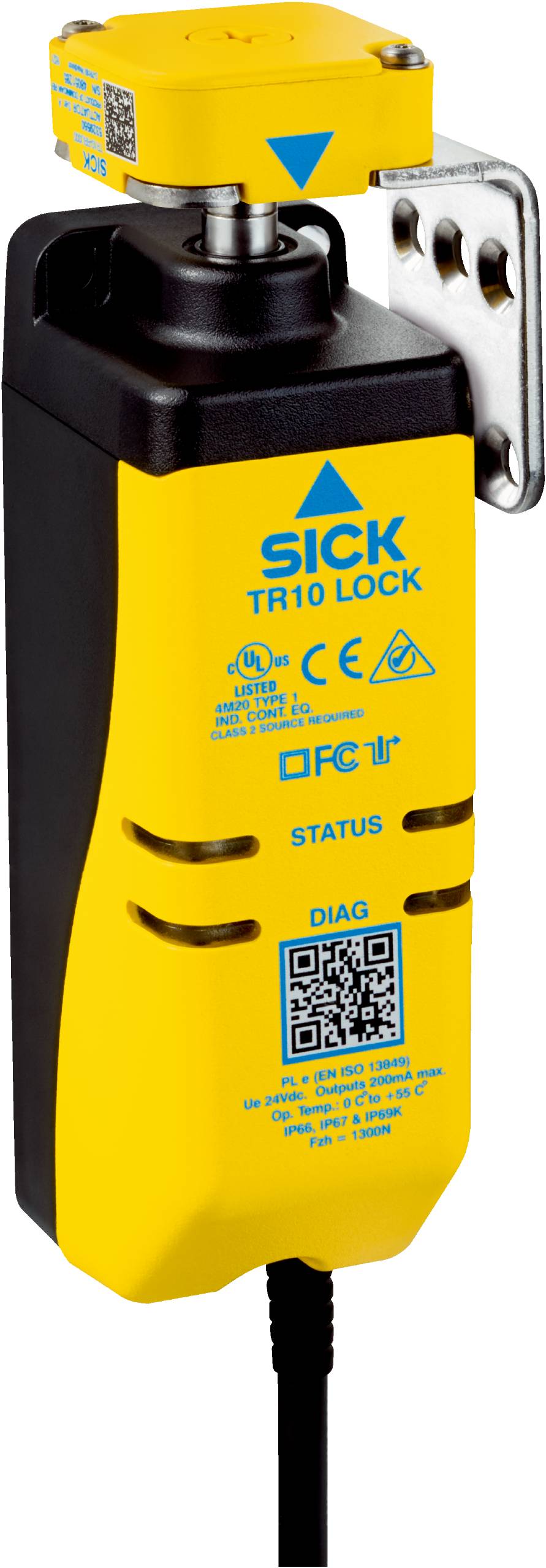

Sick Sicherheitszuhaltung TR10-SLU03P

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Sicherheitszuhaltung Typ:TR10-SLU03PMit Statusanzeige:jaMit Fluchtentriegelung:neinArt der Zuhaltung:ArbeitsstromprinzipWerkstoff des Gehäuses:KunststoffAusführung des elektrischen Anschlusses:sonstigeUmgebungstemperatur während des Betriebs:0 °CSchutzart (IP):IP66
Sick Sicherheitszuhaltung TR10-SLU03P: weitere Details
Sicherheitszuhaltungen, TR10 Lock, TR10-SLU03P, Zuhalteprinzip: Arbeitsstromprinzip, Zuhaltekraft FZh: 1.300 N, Codierung: Eindeutig codiert, Anschlussart Detail: Leitung, Leitungslänge: 3 m, Sichere Reihenschaltung: Im Schaltschrank (mit Diagnose)

Geliefert wird: Sick Sicherheitszuhaltung TR10-SLU03P, Verpackungseinheit: 1 Stk., EAN:
