Sick UC40-11411H, Ultraschall-Abstandssensor, P/n: 6081950 kaufen

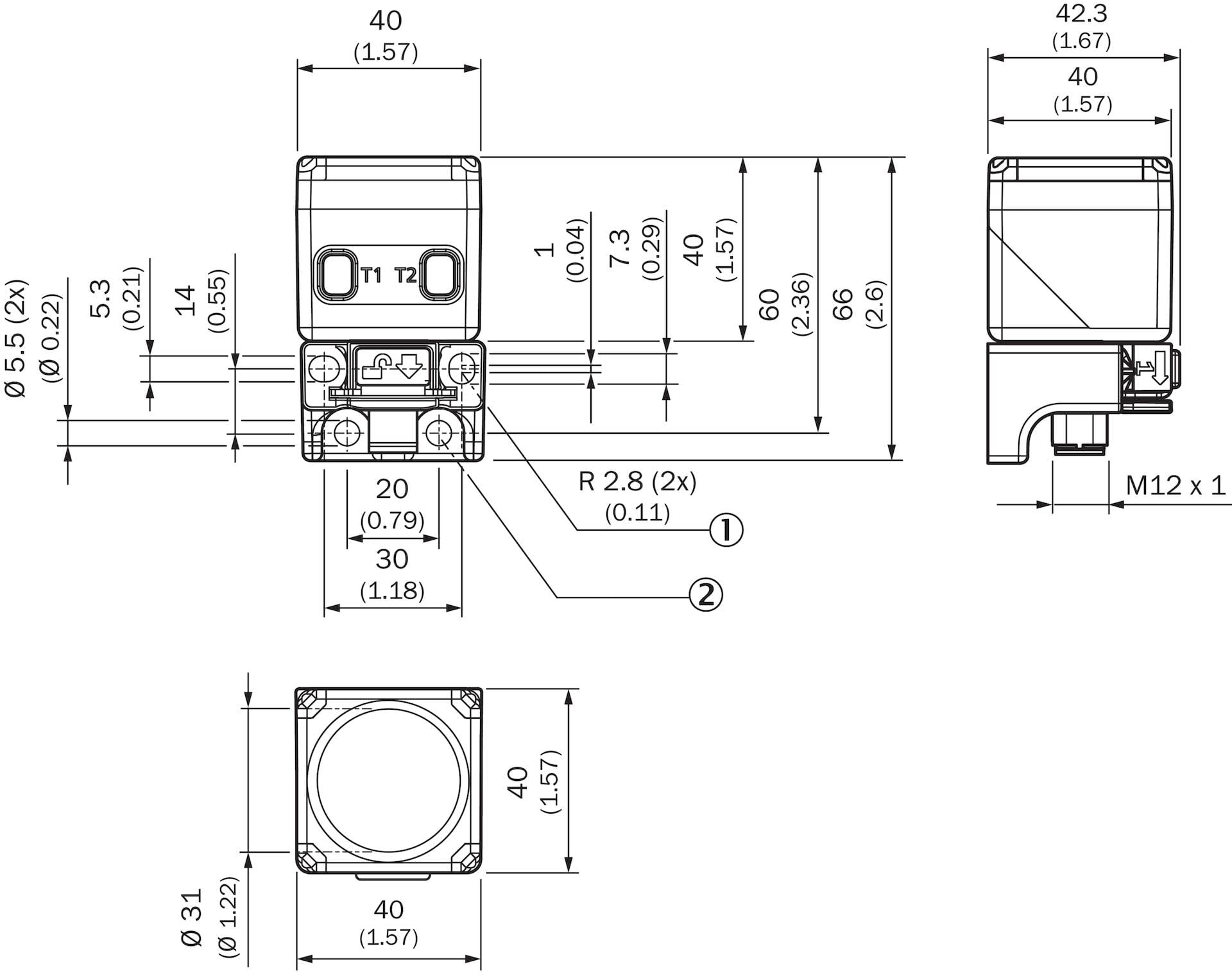

Sick UC40-11411H, Ultraschall-Abstandssensor, P/n: 6081950-0

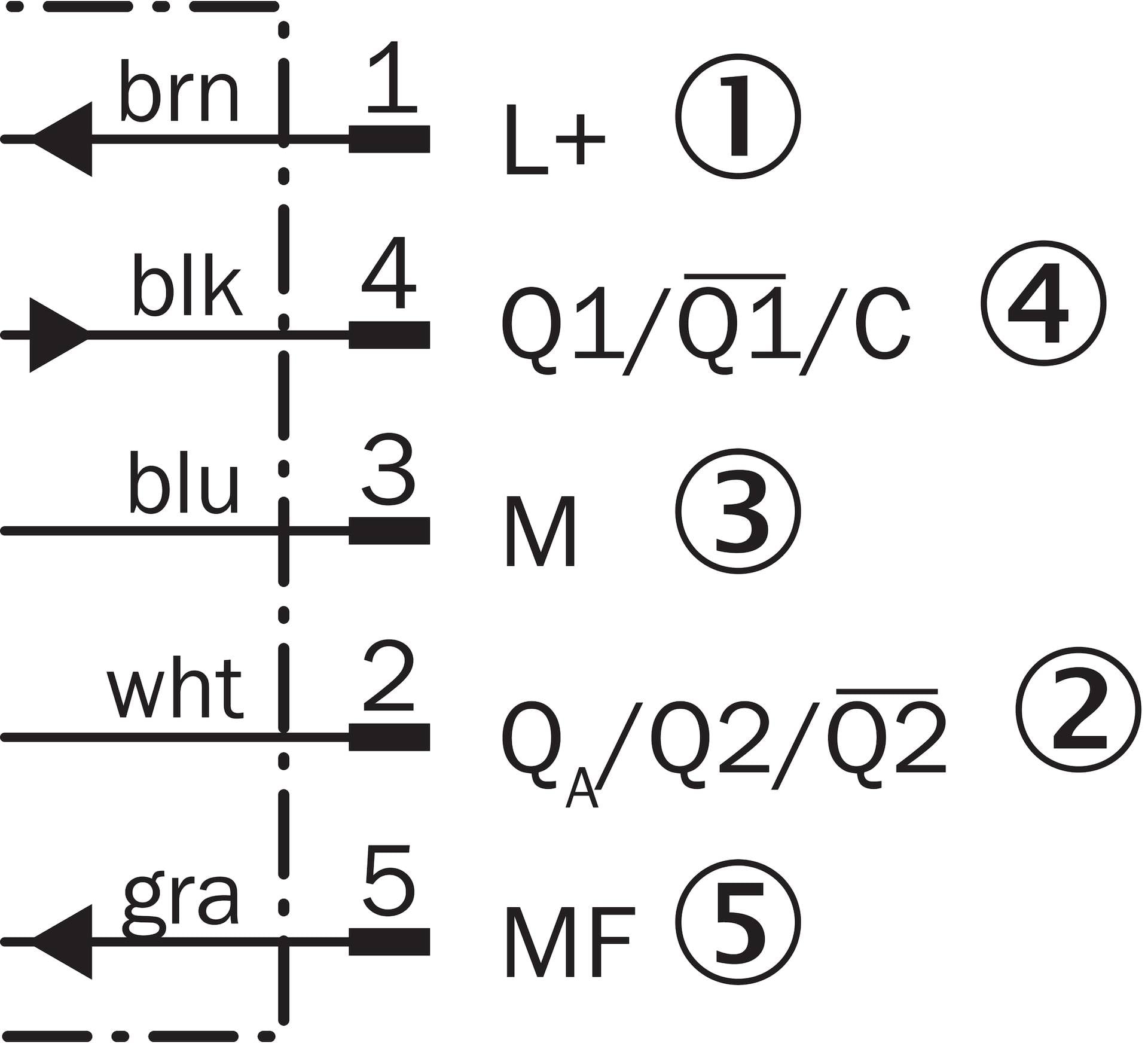

Sick UC40-11411H, Ultraschall-Abstandssensor, P/n: 6081950-1

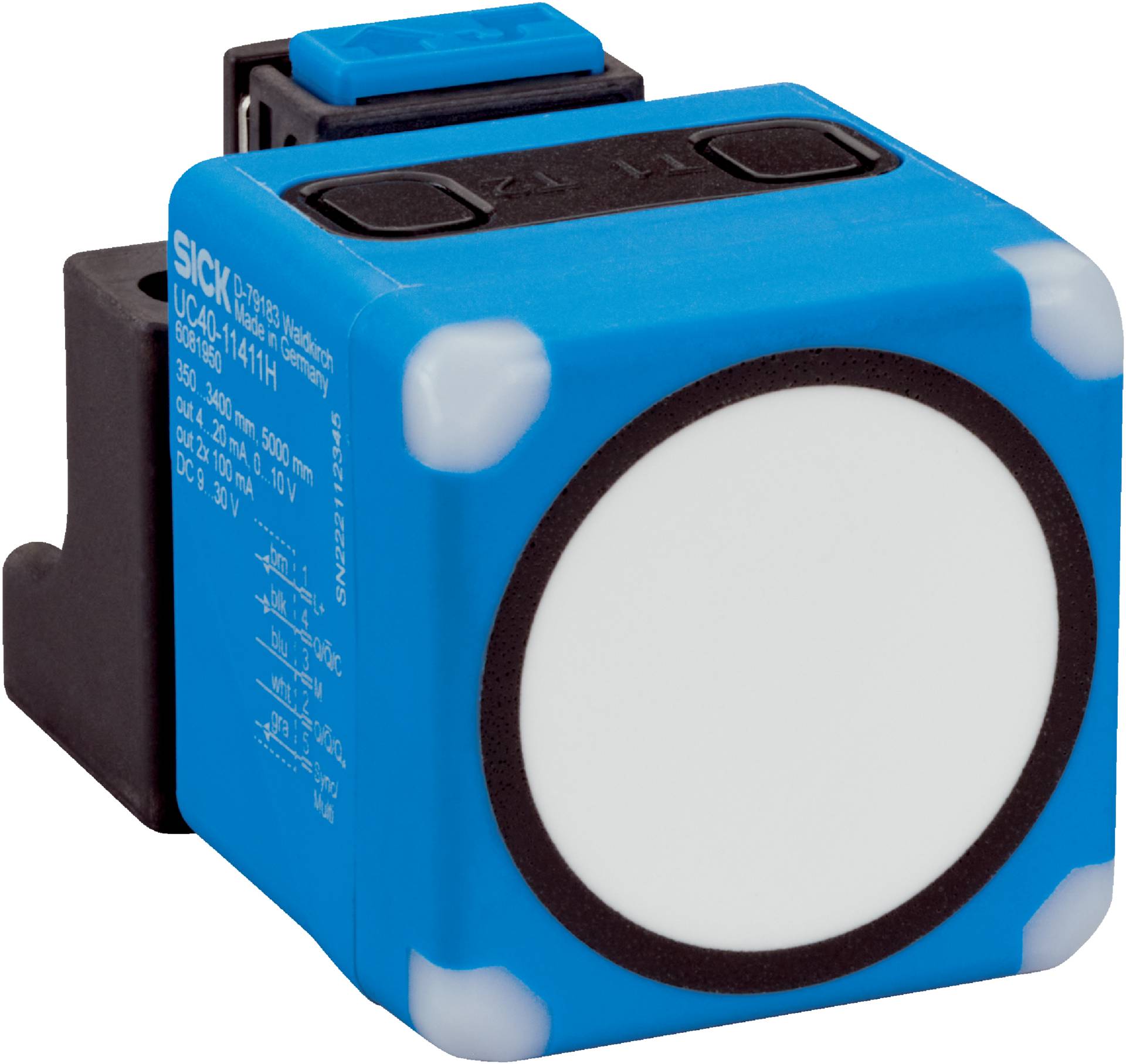

Sick UC40-11411H, Ultraschall-Abstandssensor, P/n: 6081950-2

1/3

Produkt-Art

Ultraschall-Sensor

Typ

UC40-11411H

Inhalt

1 St.

UKCA

Lieferung Mo., 23. Nov. 2026

20 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 623,24

steuerfreie IGL

€ 7,91

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Technische Daten

Operating range, limiting range: 350mm... 3,400mm, 5,000mm
Target: Natural objects
Resolution: 1mm
Repeatability: 0.15%
Measurement accuracy: 1%
Temperature compensation:
Response time: 160ms
Switching frequency: 4Hz
Output time: 41.6ms
Ultrasonic frequency (typical): 120kHz
Detection area (typical): See diagrams
Additional function: Adjustable operating modes: Switching point (DtO)/Switching window/Background (ObSB), teachin of digital output, set levels of digital outputs, invertable digital output, set on delay digital output, teachin of analog output, scaling of analog outputs, Invertable analog output, automatic selection of analog current or voltage output, Analog output switchable to second digital output, synchronization of up to 50sensors, multiplexing: no cross talk of up to 50sensors, Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam/False echo suppression, teachin button(s) (can be deactivated), reset to factory default
Safetyrelated parameters:
MTTF D : 101years
DC avg : 0%
Safetyrelated parameters:
MTTF D : 101years
DC avg : 0%
IOLink: IOLink V1.1
Function: Process data, parameterization, diagnosis, data storage
Digital output:
Number: 1... 2
Type: Pushpull: PNP/NPN
Function: Configurable Q2 output: analog output / digital output
Maximum output current I A : 100mA
Analog output:
Number: 1
Type: Current output / voltage output
Function: Automatic selection of analog current or voltage output dependent on load
: Configurable Q2 output: analog output / digital output
Current: 4mA... 20mA, 500
voltage 0V... 10V, ≥100,000
Multifunctional input (MF): 1xMF
Hysteresis: 50mm
IOLink: IOLink V1.1
Function: Process data, parameterization, diagnosis, data storage
Digital output:
Number: 1... 2
Type: Pushpull: PNP/NPN
Function: Configurable Q2 output: analog output / digital output
Maximum output current I A : 100mA
Analog output:
Number: 1
Type: Current output / voltage output
Function: Automatic selection of analog current or voltage output dependent on load
: Configurable Q2 output: analog output / digital output
Current: 4mA... 20mA, 500
voltage 0V... 10V, ≥100,000
Supply voltage U B : DC 9V... 30V
Power consumption: 1.5W
Initialization time: 300ms
Indication: 4x LED
Enclosure rating: IP65 IP67
Protection class: III
Dimensions (Wx Hx D): 40mmx 40mmx 66mm
Design: Rectangular
Sending axis: Straight
Housing material: Plastic (PA 66, ultrasonic transducer: polyurethane foam, glass epoxy resin)
Weight: 130g
Connection type: Male connector, M12, 5pin
Ambient temperature, operation: 25C... +70C
Ambient temperature, storage: 40C... +85C
ECLASS 5.0: 27270804
ECLASS 5.1.4: 27270804
ECLASS 6.0: 27270804
ECLASS 6.2: 27270804
ECLASS 7.0: 27270804
ECLASS 8.0: 27270804
ECLASS 8.1: 27270804
ECLASS 9.0: 27270804
ECLASS 10.0: 27270804
ECLASS 11.0: 27270804
ECLASS 12.0: 27272806
ETIM 5.0: EC001846
ETIM 6.0: EC001846
ETIM 7.0: EC001846
ETIM 8.0: EC001846
UNSPSC 16.0901: 41111960

Produkt-Art: Ultraschall-Sensor

Typ: UC40-11411H

Inhalt: 1 St.

UKCA: Ja

Beschreibung

Sick Ultraschallsensor UC40-11411H

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Ultraschallsensor Typ:UC40-11411HAusführung des elektrischen Anschlusses:SteckanschlussAusführung des Schaltausgangs:PNP/NPNBreite des Sensors:40 mmHöhe des Sensors:40 mmLänge des Sensors:66 mmMessbereich Länge:350 mmGehäusebauform:QuaderMax. Ausgangsstrom:20 mAUmgebungstemperatur:-25 °CVersorgungsspannung:9 VSchaltfrequenz:4 HzSpannungsart:DCWerkstoff des Gehäuses:Kunststoff
Sick Ultraschallsensor UC40-11411H: weitere Details
Ultraschallsensoren, UC40, UC40-11411H, Kommunikationsschnittstelle: IO-Link, Betriebsreichweite, Grenzreichweite: 350 mm ... 3.400 mm, 5.000 mm, Anschlussart: Stecker, M12, 5-polig, Sendeaustritt: Gerade, Ansprechzeit: 160 ms, Digitalausgang: 1 ... 2 x Gegentakt: PNP/NPN, Art des Analogausgangs: Stromausgang / Spannungsausgang, Kommunikationsschnittstelle Detail: IO-Link V1.1

Geliefert wird: Sick Ultraschallsensor UC40-11411H, Verpackungseinheit: 1 Stk., EAN:
