Sick V3SA2-ABBABBAAN1, Sicherheitskamerasensor, P/n: 1116398 kaufen

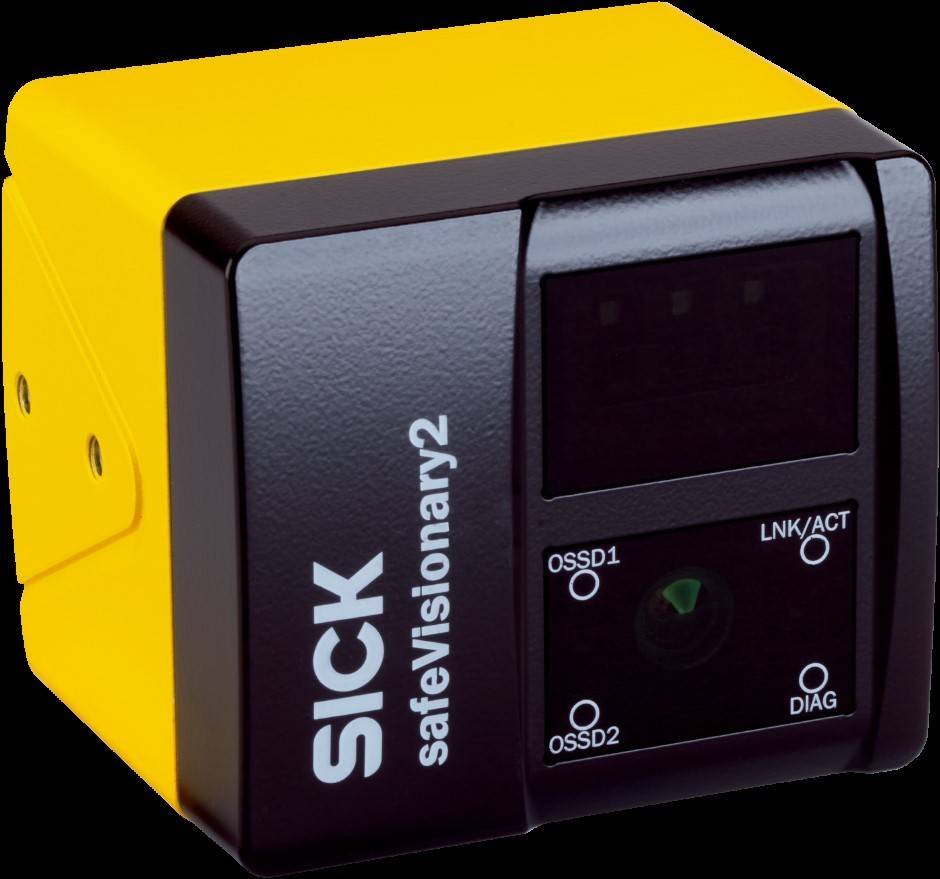

Sick V3SA2-ABBABBAAN1, Sicherheitskamerasensor, P/n: 1116398-0

Sick V3SA2-ABBABBAAN1, Sicherheitskamerasensor, P/n: 1116398-1

1/2

Lieferung Do., 19. Nov. 2026

10 Stück

Verkauf und Versand:

Elektro4000 AT Widerruf

Anzahl

Stück

Gesamt

€ 3.980,37

steuerfreie IGL

€ 7,91

Nur noch 10 Stück verfügbar

Rechtliche Bedenken melden

Technische Daten

Technology: 3D timeofflight
Application: Indoor
Camera resolution: 512pxx 424px
Field of view (protective field): 68x 42
Field of view (other field types and measurement data acquisition): 68x 58
Frame rate: 30Hz
Object resolution: Configurable
Hand: 20mm
Arm: 40mm
Leg: 50mm
Body: 200mm
Protective field range: 2m
Protective field range in Increased scanning range mode: 4m
Warning field range: 7.3m
Number of fields: 24
Number of simultaneously monitored protective fields: 2
Number of simultaneously monitored fields: 3
Number of monitoring cases: 8
Number of regions of interest (ROIs): 40
Number of simultaneously monitored ROIs: 5
Number of multiple samplings: 1... 16
Response time: 55ms
Protective field supplement: 65mm
Items supplied: Safety camera sensor Safety instruction Mounting instructions Operating instructions for download
Object resolution: Configurable
Hand: 20mm
Arm: 40mm
Leg: 50mm
Body: 200mm
Type: Type 2(IEC61496
Safety integrity level: SIL 1(IEC6150
Category: Category 2(ISO13849
Performance level: PL c (ISO13849
PFH D (mean probability of a dangerous failure per hour): 3 10 7
T M (mission time): 20years (ISO13849
Safe state in the event of a fault: At least one OSSD is in the OFF state.
Restart interlock:
External device monitoring (EDM):
Multiple sampling:
Monitoring case switching
Simultaneous monitoring:
Static protective field switching
Safe contour detection:
Integrated configuration memory:
Measured data output: Ethernet
Connection type: Male connector, M12, 8pin, Acoded (common male connector for power supply and inputs and outputs)
Permitted cable length: 10m
Universal I/Os: 4
OSSD pairs: 1... 2
Static control inputs: 4
Configuration method: Via software
Configuration and diagnostic software: Safety Designer (software for configuring and diagnosing safety solutions from SICK AG)
Configuration and diagnostics interface: Ethernet, 1000BaseT, IEEE 802.3ab
Connection type: Male connector, M12, 8pin, Xcoded
Permitted cable length: 100m
Cable category: CAT5e or higher
Display elements: LEDs
Connection type: Male connector, M12, 8pin, Acoded (common male connector for power supply and inputs and outputs)
Permitted cable length: 10m
Configuration and diagnostics interface: Ethernet, 1000BaseT, IEEE 802.3ab
Connection type: Male connector, M12, 8pin, Xcoded
Permitted cable length: 100m
Cable category: CAT5e or higher
Protection class: III (IEC61140)
Supply voltage V S : 24VDC (16.8V... 30V)
Power consumption typical: 13W (DC) (without output load)
Switchon time: Typ.30s
Output signal switching devices (OSSDs): 2PNP semiconductors, shortcircuit protected, crosscircuit monitored
ON state, switching voltage HIGH: U V 2VDC... U V
OFF state, switching voltage LOW: 2VDC
Currentcarrying capacity per OSSD: 250mA
Output signal switching devices (OSSDs): 2PNP semiconductors, shortcircuit protected, crosscircuit monitored
ON state, switching voltage HIGH: U V 2VDC... U V
OFF state, switching voltage LOW: 2VDC
Currentcarrying capacity per OSSD: 250mA

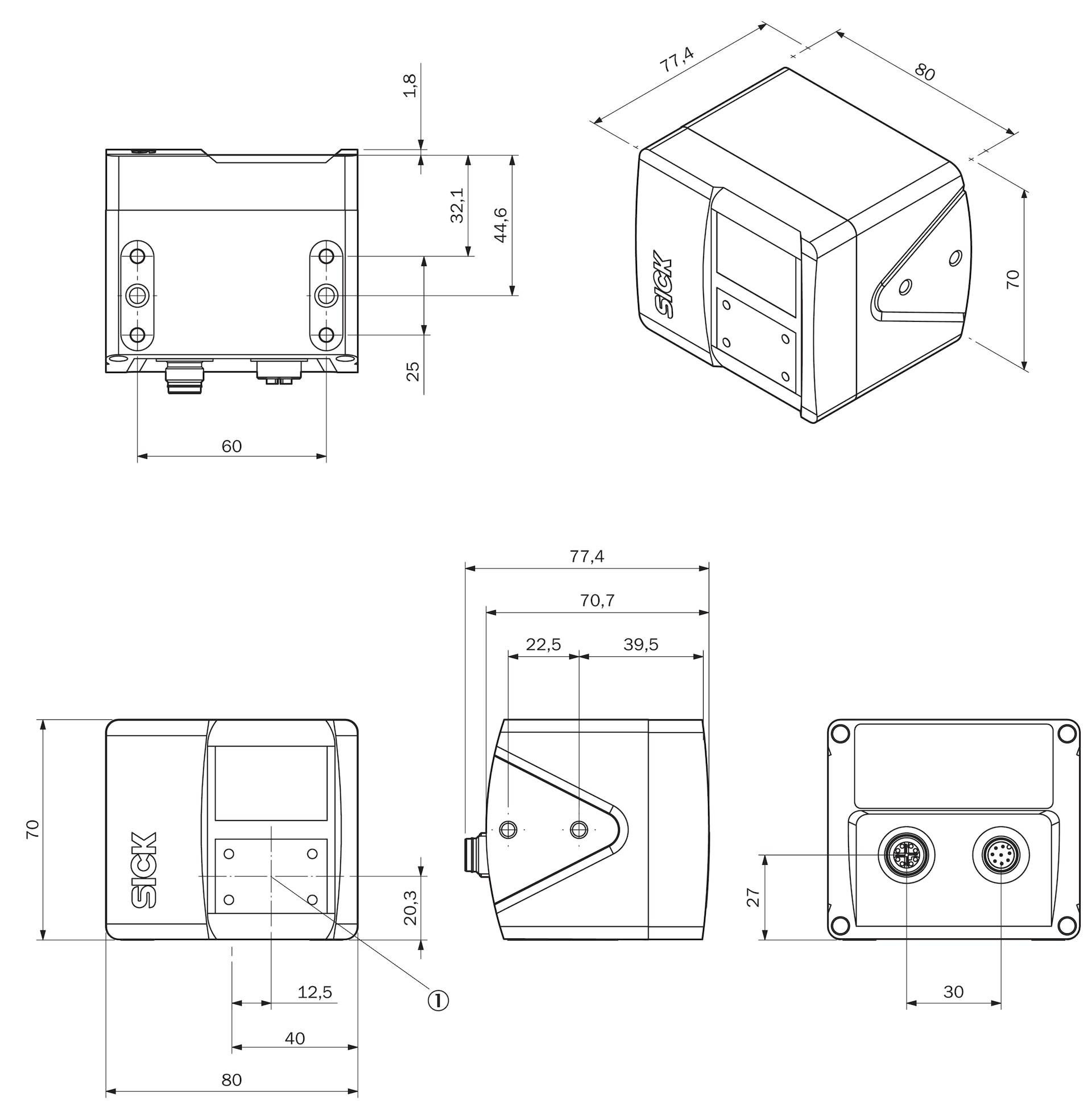

Dimensions (Wx Hx D): 70mmx 80mmx 77mm
Weight: 520g
Housing material: Aluminum
Housing color: RAL 9005(black) RAL 1021(yellow)
Window material: Polycarbonat (PC)
Enclosure rating: IP65 (IEC6052 IP67 (IEC6052
Ambient light immunity according to IEC614963: 3,000lx
Ambient light immunity typical: 10,000lx
Ambient operating temperature: 10C... +50C
Storage temperature: 25C... +70C
Air humidity: 95%, Noncondensing
Vibration resistance: 1g, 5Hz... 200Hz (IEC600682
Shock resistance: 15g, 11ms (IEC6006822
EMC: IEC614961 IEC6100062 IEC6100064
Light source: Pulsed laser
Type of light: Nearinfrared (NIR), invisible
Wave length: 855nm
Detectable remission factor: 4%... several 1,000%
Laser class: 1(IEC60825
EU declaration of conformity
ACMA declaration of conformity
ChinaRoHS
cULus Certificate
ECTypeExamination approval
ECLASS 5.0: 27272790
ECLASS 5.1.4: 27272790
ECLASS 6.0: 27272790
ECLASS 6.2: 27272790
ECLASS 7.0: 27272790
ECLASS 8.0: 27272790
ECLASS 8.1: 27272790
ECLASS 9.0: 27272790
ECLASS 10.0: 27272790
ECLASS 11.0: 27272790
ECLASS 12.0: 27272790
ETIM 5.0: EC001511
ETIM 6.0: EC001511
ETIM 7.0: EC001511
ETIM 8.0: EC001511
UNSPSC 16.0901: 39121528

Einsatzort: Innenbereich

Lichtempfindlichkeit (ohne IR): 3.000 lx

Breite: 70 mm

Tiefe: 77 mm

Höhe: 80 mm

Gewicht: 520 g

Abm.: (B x H x T) 70 x 80 x 77 mm

UKCA: Ja

Beschreibung

Sick Kamerasystem V3SA2-ABBABBAAN1

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Kamerasystem Typ:V3SA2-ABBABBAAN1Schutzart (IP):IP65Versorgungsspannung:16,8 VHöhe:80 mmBreite:70 mmTiefe:77 mm
Sick Kamerasystem V3SA2-ABBABBAAN1: weitere Details
Sichere Kamerasysteme, safeVisionary2, V3SA2-ABBABBAAN1, Technologie: 3D Time-of-Flight, Sicherheitsniveau: PL c, SIL 1, Typ 2, Lieferumfang: Sicheres Kamerasystem, Sicherheitshinweis, Montageanleitung, Betriebsanleitung zum Download EAN: 4047084521737

Geliefert wird: Sick Kamerasystem V3SA2-ABBABBAAN1, Verpackungseinheit: 1 Stk., EAN: 4047084521737
