Sick WTB16I-24161120A00, Fotoelektrischer Sensor, P/n: 1218669

1500 mm, sonstige, Steckverbinder M12, Schutzklasse 3, Quader, 20 mm, 55,7 mm, 42 mm, hell-/dunkelschaltend, Kunststoff, 100 mA, 60 °C, 0,5 ms, 1000 Hz, 10 V, DC, 850 nm, Infrarotlicht, IP66

Technische Daten

Functional principle: Photoelectric proximity sensor
Functional principle detail: Background suppression
Sensing range:
Sensing range min.: 10mm
Sensing range max.: 1,500mm
Adjustable switching threshold for background suppression: 100mm... 1,500mm
Reference object: Object with 90% remission factor (complies with standard white according to DIN503
Minimum distance between set sensing range and background (black 6% / white 90%): 70mm, at a distance of 600mm
Recommended sensing range for the best performance: 100mm... 600mm
Emitted beam:
Light source: LED
Type of light: Infrared light
Shape of light spot: Pointshaped
Light spot size (distance): 12mm (800mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle): +/ 1.0 (at Ta= +23 C)
Key LED figures:
Normative reference: EN62471:200809 | IEC62471:2006, modified
LED risk group marking: Free group
Wave length: 850nm
Average service life: 100,000h at T a = +25C
Adjustment:
TeachTurn adjustment: BluePilot: For setting the sensing range
IOLink: For configuring the sensor parameters and Smart Task functions
Indication:
LED blue: BluePilot: sensing range indicator
LED green: Operating indicator
Static on: power on
Flashing: IOLink mode
LED yellow: Status of received light beam
Static on: object present
Static off: object not present
Sensing range:
Sensing range min.: 10mm
Sensing range max.: 1,500mm
Adjustable switching threshold for background suppression: 100mm... 1,500mm
Reference object: Object with 90% remission factor (complies with standard white according to DIN503
Minimum distance between set sensing range and background (black 6% / white 90%): 70mm, at a distance of 600mm
Recommended sensing range for the best performance: 100mm... 600mm
Emitted beam:
Light source: LED
Type of light: Infrared light
Shape of light spot: Pointshaped
Light spot size (distance): 12mm (800mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle): +/ 1.0 (at Ta= +23 C)
Key LED figures:
Normative reference: EN62471:200809 | IEC62471:2006, modified
LED risk group marking: Free group
Wave length: 850nm
Average service life: 100,000h at T a = +25C
Adjustment:
TeachTurn adjustment: BluePilot: For setting the sensing range
IOLink: For configuring the sensor parameters and Smart Task functions
Indication:
LED blue: BluePilot: sensing range indicator
LED green: Operating indicator
Static on: power on
Flashing: IOLink mode
LED yellow: Status of received light beam
Static on: object present
Static off: object not present
MTTF D : 626years
DC avg : 0%
T M (mission time): 20years ENISO13849, rate of use: 60%)
IOLink: V1.1
Data transmission rate: COM2 (38,4kBaud)
Cycle time: 2.3ms
Process data length: 16Bit
Process data structure: Bit 0= switching signal Q L1
: Bit 1= switching signal Q L2
: Bit 2... 15= empty
VendorID: 26
DeviceID HEX: 0x800193
DeviceID DEC: 8389011
Compatible master port type: A
SIO mode support: Yes
IOLink: V1.1
Data transmission rate: COM2 (38,4kBaud)
Cycle time: 2.3ms
Process data length: 16Bit
Process data structure: Bit 0= switching signal Q L1
: Bit 1= switching signal Q L2
: Bit 2... 15= empty
VendorID: 26
DeviceID HEX: 0x800193
DeviceID DEC: 8389011
Compatible master port type: A
SIO mode support: Yes
Supply voltage U B : 10VDC... 30VDC
Ripple: 5V pp
Usage category: DC12 (According to EN609475 DC13 (According to EN609475
Current consumption: 30mA, without load. At U B = 24V
Protection class: III
Digital output:
Number: 2(Complementary)
Type: Pushpull: PNP/NPN
Switching mode: Light/dark switching
Signal voltage PNP HIGH/LOW: Approx. U B 2.5V / 0V
Signal voltage NPN HIGH/LOW: Approx. U B /2.5V
Output current I max. : 100mA
Circuit protection outputs: Reverse polarity protected
: Overcurrent and shortcircuit protected
Response time: 500s
Repeatability (response time): 150s
Switching frequency: 1,000Hz

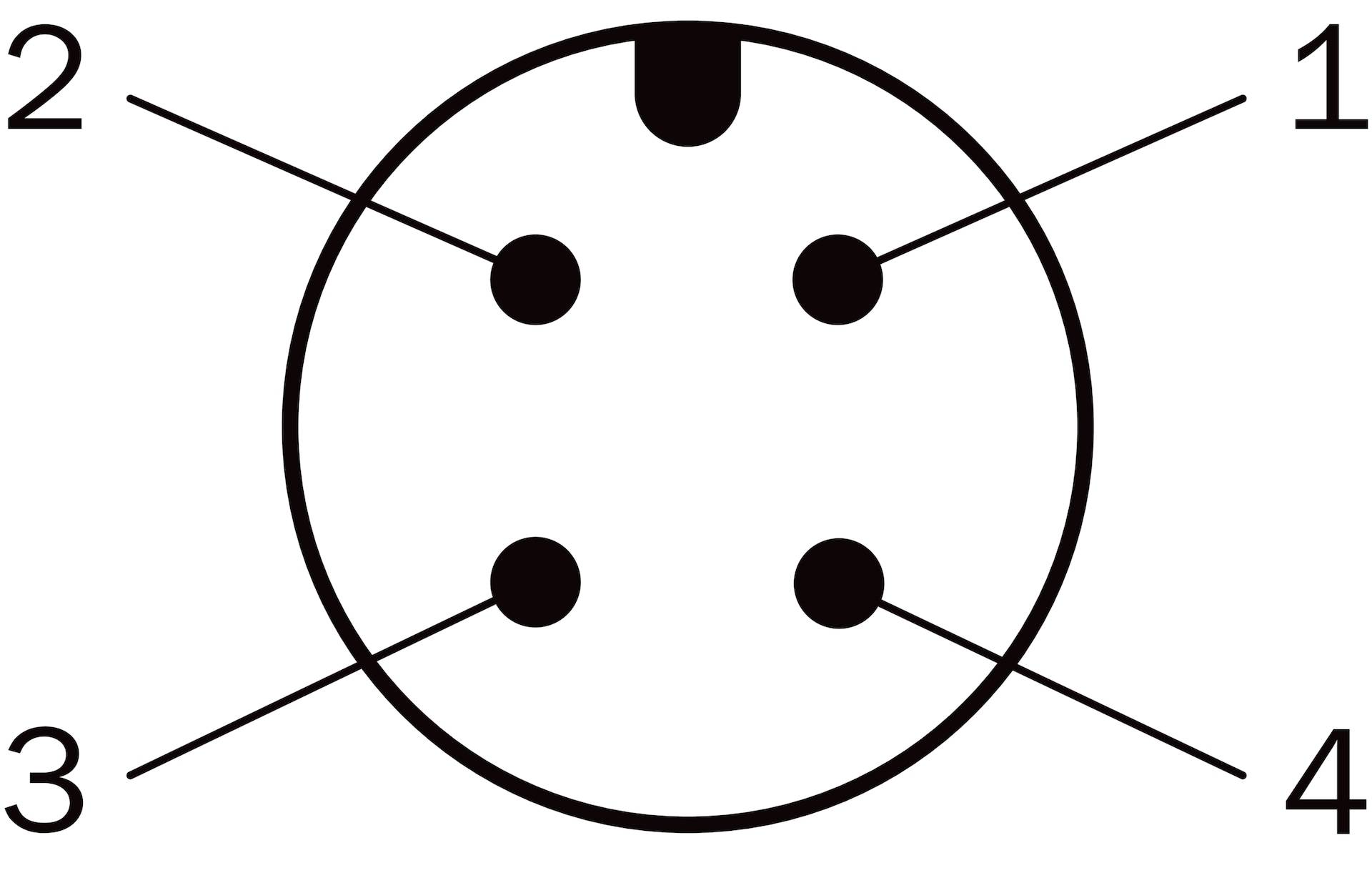

Pin/Wire assignment:
Function of pin 4/black (BK): Digital output, light switching, object present → output Q L1 HIGH; IOLink communication C
Function of pin 4/black (BK) detail: The pin 4function of the sensor can be configured, Additional possible settings via IOLink
Function of pin 2/white (WH): Digital output, dark switching, object present → output Ǭ L1 LOW
Function of pin 2/white (WH) detail: The pin 2function of the sensor can be configured, Additional possible settings via IOLink
Digital output:
Number: 2(Complementary)
Type: Pushpull: PNP/NPN
Switching mode: Light/dark switching
Signal voltage PNP HIGH/LOW: Approx. U B 2.5V / 0V
Signal voltage NPN HIGH/LOW: Approx. U B /2.5V
Output current I max. : 100mA
Circuit protection outputs: Reverse polarity protected
: Overcurrent and shortcircuit protected
Response time: 500s
Repeatability (response time): 150s
Switching frequency: 1,000Hz
Pin/Wire assignment:
Function of pin 4/black (BK): Digital output, light switching, object present → output Q L1 HIGH; IOLink communication C
Function of pin 4/black (BK) detail: The pin 4function of the sensor can be configured, Additional possible settings via IOLink
Function of pin 2/white (WH): Digital output, dark switching, object present → output Ǭ L1 LOW
Function of pin 2/white (WH) detail: The pin 2function of the sensor can be configured, Additional possible settings via IOLink
Housing: Rectangular

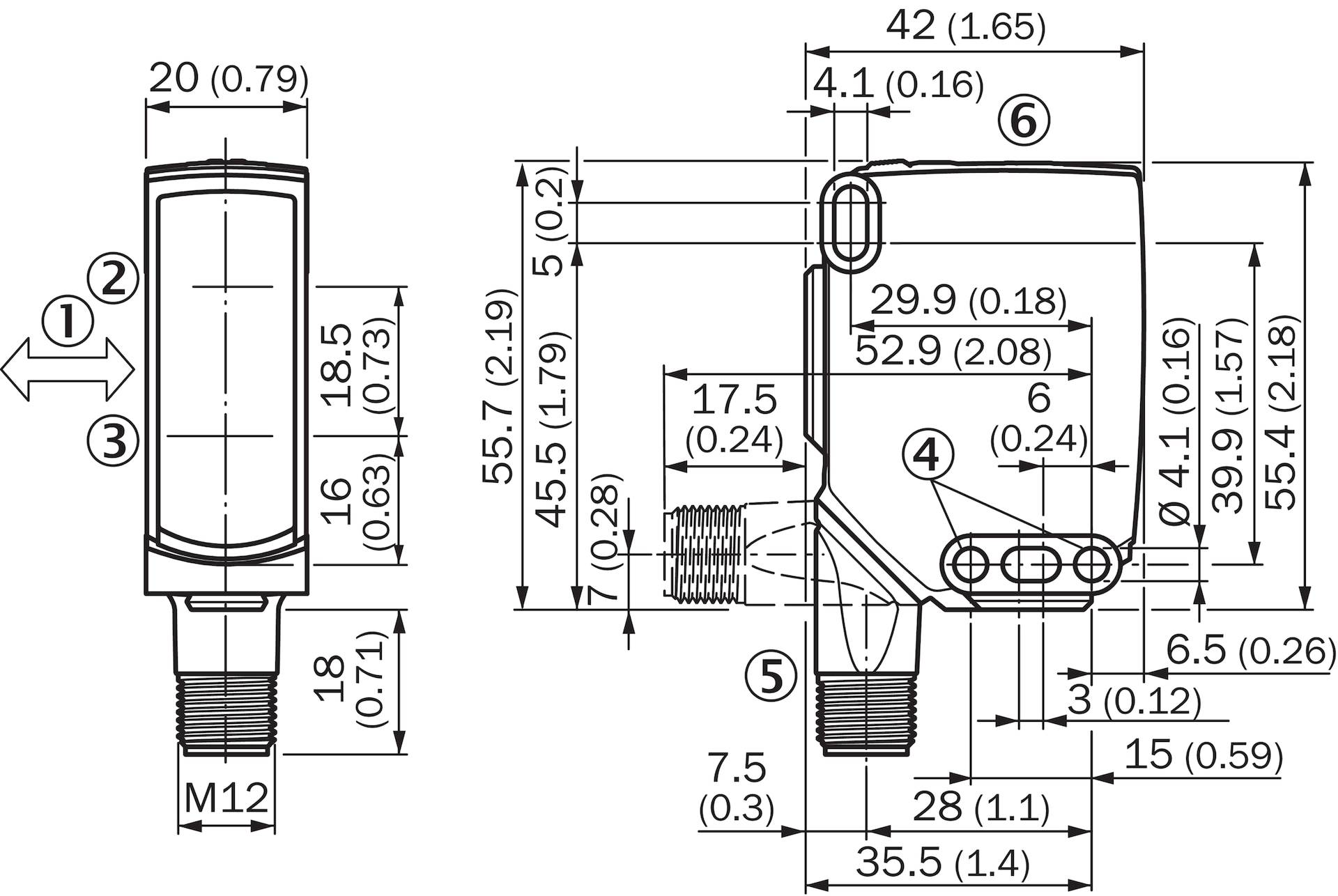

Dimensions (Wx Hx D): 20mmx 55.7mmx 42mm
Connection: Male connector M12, 4pin
Material:
Housing: Plastic, VISTAL®
Front screen: Plastic, PMMA
Male connector: Plastic, VISTAL®
Weight: Approx.50g
Maximum tightening torque of the fixing screws: 1.3Nm
Material:
Housing: Plastic, VISTAL®
Front screen: Plastic, PMMA
Male connector: Plastic, VISTAL®
Enclosure rating: IP66 (EN6052 IP67 (EN6052 IP69 (EN6052
Ambient operating temperature: 40C... +60C
Ambient temperature, storage: 40C... +75C
Shock resistance: 50g, 11ms (25positive and 25negative shocks per axis, for X, Y, Z axes, 150shocks in total (EN600682 50g, 6ms (5,000positive and 5,000negative shocks per axis, for X, Y, Z axes, 30,000shocks in total (EN600682
Vibration resistance: 10Hz... 2,000Hz (Amplitude 0.5mm/10g, 20sweeps per axis, for X, Y, Z axes, 1octave/min, (EN600682)
Air humidity: 35%... 95%, relative humidity (no condensation)
Electromagnetic compatibility (EMC): EN6094752
Resistance to cleaning agent: ECOLAB
UL File No.: NRKH.E181493 & NRKH7.E181493
Smart Task name: Base logics
Logic function: Direct AND OR Window Hysteresis
Timer function: Deactivated Switchon delay Off delay ON and OFF delay Impulse (one shot)
Inverter: Yes
Switching frequency: SIO Logic: 800Hz IOL: 650Hz
Response time: SIO Logic: 600 s IOL: 750s
Repeatability: SIO Logic: 300s IOL: 400s
Switching signal:
Switching signal Q L1 : Switching output
Switching signal Ǭ L1 : Switching output
Switching signal:
Switching signal Q L1 : Switching output
Switching signal Ǭ L1 : Switching output
Device status: Yes
Quality of teach: Yes
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
ECOLAB Certificate
cULus Certificate
IOLink:
Photobiological safety (DIN EN 6247 Certificate
ECLASS 5.0: 27270904
ECLASS 5.1.4: 27270904
ECLASS 6.0: 27270904
ECLASS 6.2: 27270904
ECLASS 7.0: 27270904
ECLASS 8.0: 27270904
ECLASS 8.1: 27270904
ECLASS 9.0: 27270904
ECLASS 10.0: 27270904
ECLASS 11.0: 27270904
ECLASS 12.0: 27270903
ETIM 5.0: EC002719
ETIM 6.0: EC002719
ETIM 7.0: EC002719
ETIM 8.0: EC002719
UNSPSC 16.0901: 39121528

Produkt-Art: Lichttaster

Typ: WTB16I-24161120A00

Funktionen: Hintergrundausblendung

Betriebsspannung: 10 V/DC

Ansprechzeit: 0.5 ms

Schalt-Frequenz: 1000 Hz

Gehäusematerial: Kunststoff

Sendertyp: LED Infrarot

Wellenlänge: 850 nm

: 1500 mm

Besonderheiten: Mit Hintergrundausblendung

Max. Temperatur: 60 °C

Länge: 42 mm

Breite: 20 mm

Höhe: 55.7 mm

Abm.: (L x B x H) 42 x 20 x 55.7 mm

Inhalt: 1 St.

UKCA: Ja

Dokumente & Downloads

Datenblatt

Datenblatt 813426871 Sick WTB16I-24161120A00, Fotoelektrischer Sensor, P/n: 1218669

Beschreibung

Sick Lichttaster WTB16I241611#1218669

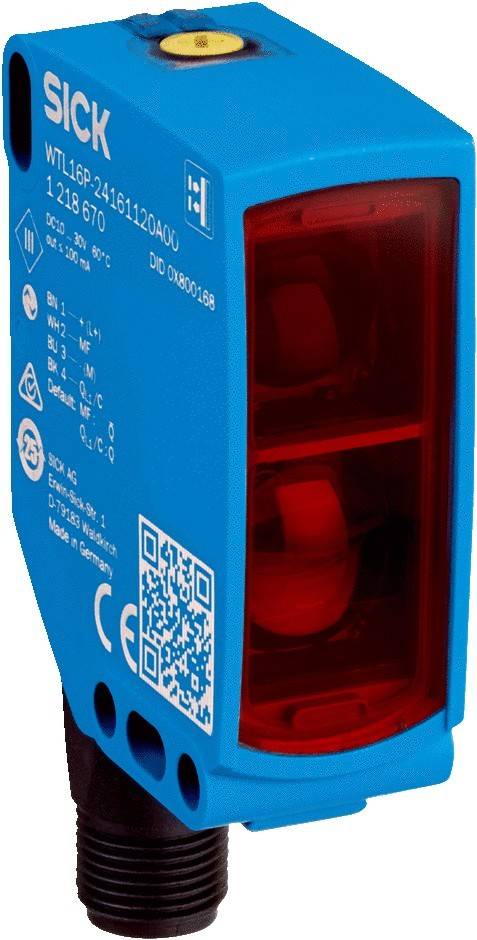

Abbildung ähnlich.
Bitte achten Sie auf die technischen Daten und die EAN des Produkts.

Hersteller:SickBezeichnung:Lichttaster m.HintergrundausblenTyp:WTB16I241611#1218669Max. Schaltabstand:1500 mmAusführung der Schnittstelle für sicherheitsgerichtete Kommunikation:sonstigeAusführung des elektrischen Anschlusses:Steckverbinder M12Ausführung des Schaltausgangs:sonstigeBetriebsmittel-Schutzklasse:Schutzklasse 3Gehäusebauform:QuaderBreite des Sensors:20 mmHöhe des Sensors:55,7 mmLänge des Sensors:42 mmTastfunktion:hell-/dunkelschaltendWerkstoff der optischen Fläche:KunststoffWerkstoff des Gehäuses:KunststoffMax. Ausgangsstrom am sicheren Ausgang:100 mAUmgebungstemperatur:60 °CReaktionszeit:0,5 msSchaltfrequenz:1000 HzBemessungssteuerspeisespannung Us bei AC 50 Hz:10 VSpannungsart:DCWellenlänge des Sensors:850 nmLichtart:InfrarotlichtSchutzart (IP):IP66
Sick Lichttaster WTB16I241611#1218669: weitere Details
Klein-Lichtschranken, W16, WTB16I-24161120A00, Gerätetyp: Lichttaster und Lichtschranken, Schaltabstand min. / max.: 10 mm / 1.500 mm, Sensorprinzip: Reflexions-Lichttaster, Detektionsprinzip: Hintergrundausblendung, Schaltausgang: Gegentakt: PNP/NPN, Anschlussart: Stecker M12, 4-polig, Lichtsender: LED, Lichtart: Infrarotlicht, Gehäusematerial: VISTAL®, Einstellung: Teach-in-Taste, Leitung, Potentiometer, Drück-Dreh-Element, Kommunikationsschnittstelle: IO-Link V1.1, Smart Sensor: Enhanced Sensing (Basis-Logik), Effiziente Kommunikation, Smart Task EAN: 4047084419294

Geliefert wird: Sick Lichttaster m.Hintergrundausblen WTB16I241611#1218669, Verpackungseinheit: 1 Stk., EAN: 4047084419294
