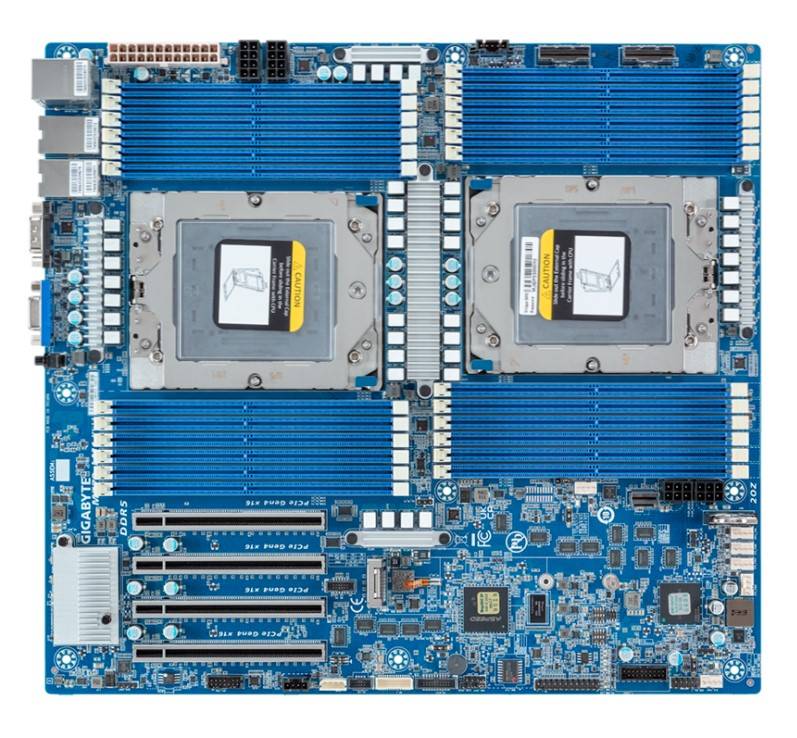

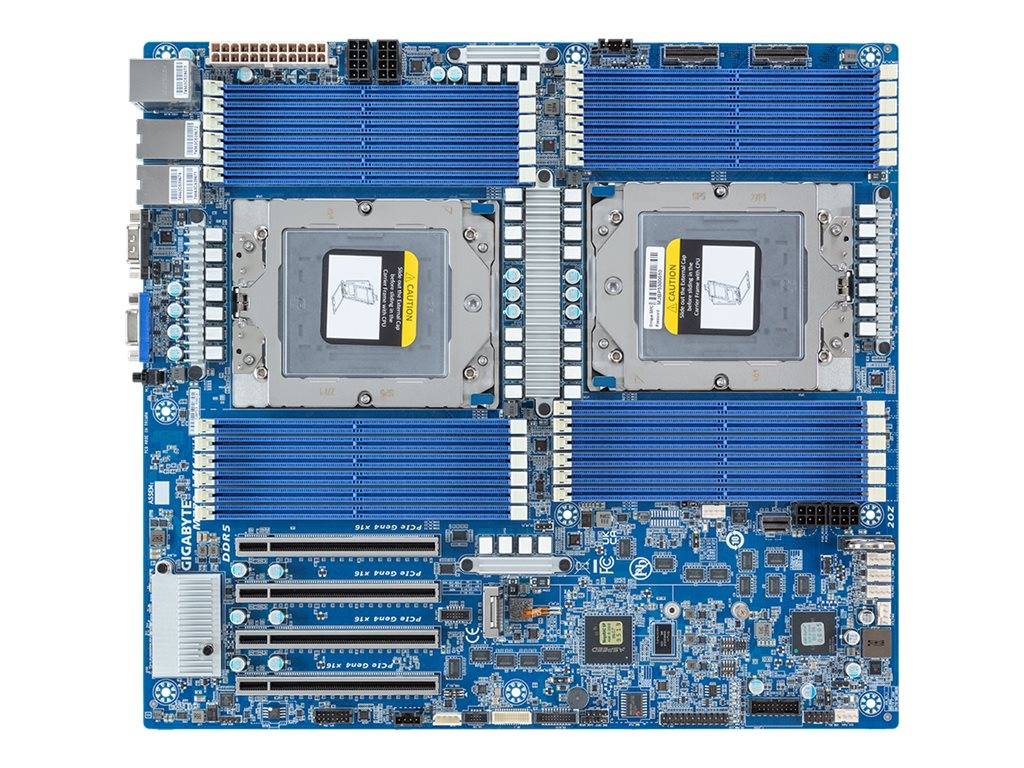

Gigabyte MZ73-LM1 - 1.X - Motherboard - E-ATX

Form Factor
E-ATX
304.8 x 33522 mm (W x D)
CPU
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
Socket
2 x LGA 6096
Socket SP5
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
LAN
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
NCSI function supported
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
Expansion Slots
Slot_4: PCIe x16 (Gen4 x16), from CPU_0
Slot_3: PCIe x16 (Gen4 x16), from CPU_0
Slot_2: PCIe x16 (Gen4 x16), from CPU_1
Slot_1: PCIe x16 (Gen4 x16), from CPU_1
1 x M.2 slot:
- PCIe Gen4 x4 from CPU_0
- Supports 2280/22110 cards
SlimSAS:
2 x SlimSAS 8i for 4 x Gen4 NVMe or 16 x SATA 6Gb/s,
from CPU_1
1 x SlimSAS 4i for 4 x SATA 6Gb/s, from CPU_0
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
2 x SlimSAS 8i connectors
1 x SlimSAS 4i connector
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Board Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
