Name: Sick DT500-A123, Laser-Distanzsensor, P/n: 1040468
Brand: SICK
SKU: 889479198
Availability: InStock

Sick DT500-A123, Laser-Distanzsensor, P/n: 1040468-0

Sick DT500-A123, Laser-Distanzsensor, P/n: 1040468-1

Sick DT500-A123, Laser-Distanzsensor, P/n: 1040468-2

1/3

Verpackungsart

Piece

Produkt-Art

Long-Range-Distanzsensor

Max. Reichweite im Freifeld

30 m

Typ

DT500-A123

Inhalt

1 St.

Sofort-Lieferung Mi., 14. Okt.

3 Stück

Verkauf und Versand:

Cetra IT Österreich Widerruf

versandkostenfrei ab € 199,00 Bestellwert bei diesem Anbieter

Anzahl

Stück

Gesamt

€ 3.457,91

steuerfreie IGL

Nur noch 3 Stück verfügbar

14 Tage Rückgaberecht inklusive

Rechtliche Bedenken melden

Technische Daten

Measuring range: 0.2m... 30m, 90% remission factor 0.8m... 15m, 6% remission factor
Target: Natural objects
Resolution: 0.1mm
Repeatability: 1mm
Measurement accuracy: 3mm
Response time: 250ms
Output time: 250ms
Light source: Laser, red
visible red light
Type of light: Visible red light
Laser class: 2, complies with 21CFR 1040.10and 1040.11except for the conformance according to Laser Notice No. 50 from June 24, 2007(IEC608251:2014, EN608251:201
Typ. light spot size (distance): 10mm (at 7m) 45mm (at 30m) 100mm (at 70m)
Safetyrelated parameters:
MTTF D : 101years
DC avg : 0%
Safetyrelated parameters:
MTTF D : 101years
DC avg : 0%
CAN
Remark: Layer 2
Multifunctional input (MF): PNP
Laseroff input: 12V
CAN
Remark: Layer 2
Supply voltage U B : DC 10V... 30V, reverse polarity protected U V DC 24V for devices with heating
Power consumption: Typ.3W
Ripple: 5V pp
Initialization time: 500ms
Enclosure rating: IP65
Protection class: II
Dimensions (Wx Hx D): 69mmx 50mmx 153mm
Housing material: Metal (Aluminum die cast)
Window material: Glass
Weight: 1,000g

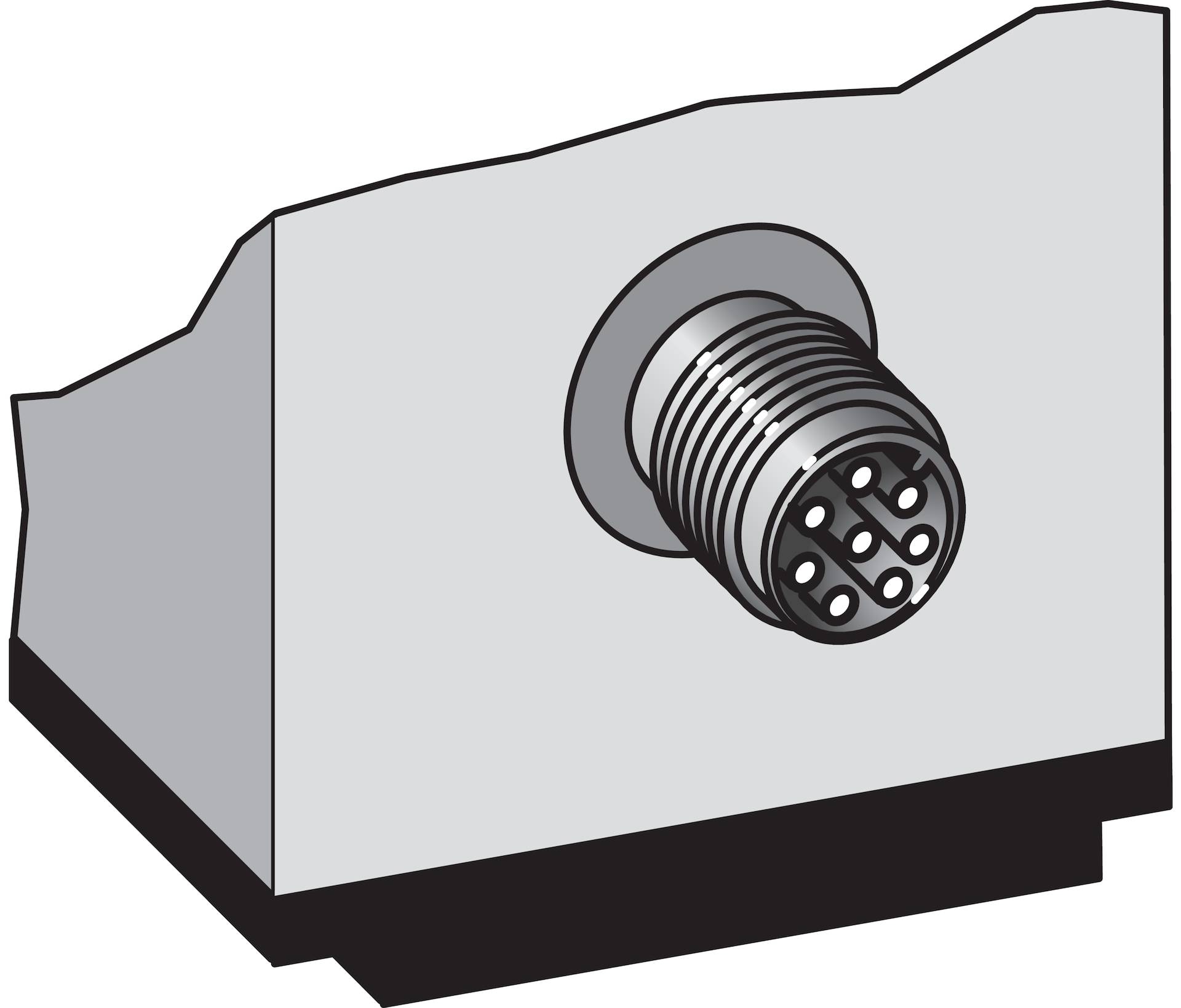

Connection type: Male connector, M12, 8pin
Ambient temperature, operation: 10C... +45C 10C... +75C, operation with cooling case
Ambient temperature, storage: 25C... +75C
Temperature drift: Typ.0.05mm/K
Typ. Ambient light immunity: 3,000lx
Mechanical load: Shock: (EN600 68227 / 22 Sine: (EN600 682 Noise: (EN600 6826
Electromagnetic compatibility (EMC): EN6100062 / EN6100063
EU declaration of conformity
UK declaration of conformity
ACMA declaration of conformity
MAR declaration of conformity
ChinaRoHS
ECLASS 5.0: 27270801
ECLASS 5.1.4: 27270801
ECLASS 6.0: 27270801
ECLASS 6.2: 27270801
ECLASS 7.0: 27270801
ECLASS 8.0: 27270801
ECLASS 8.1: 27270801
ECLASS 9.0: 27270801
ECLASS 10.0: 27270801
ECLASS 11.0: 27270801
ECLASS 12.0: 27270916
ETIM 5.0: EC001825
ETIM 6.0: EC001825
ETIM 7.0: EC001825
ETIM 8.0: EC001825
UNSPSC 16.0901: 41111613
